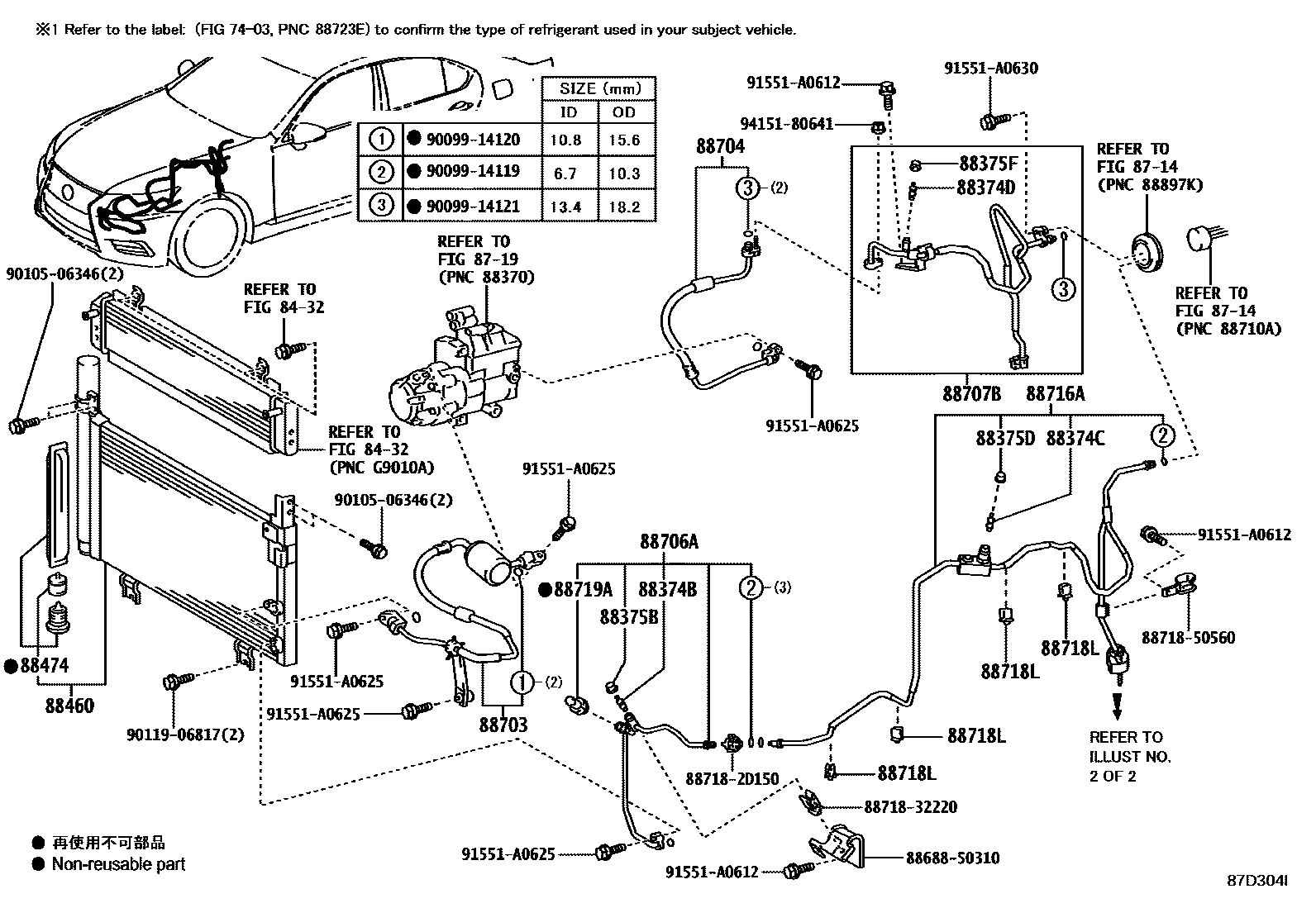

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1FRONT(REFRIGERANT TYPE : R-130002 1FRONT(REFRIGERANT TYPE : R-120003 1REAR

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iUVF4#201209-201708

88374CVALVE, SERVICE, NO.2

main88374-30010iUVF4#201209-201708

88374DVALVE, SERVICE NO.3

main88374-30010supersedes 88374-30010iUVF4#..CHI,GCC201209-201708

88375BCAP, SERVICE VALVE, NO.1

main88375-30280supersedes 88375-30320iUVF4#..CHI,GCC201209-201708

88375DCAP, SERVICE VALVE, NO.2

main88375-30280supersedes 88375-30320iUVF4#..CHI,GCC201209-201708

88375FCAP, SERVICE VALVE, NO.3

main88375-30290supersedes 88375-30290iUVF4#..CHI,GCC201209-201708

88460CONDENSER ASSY, COOLER

main88460-50231iUVF4#201209-201708

88474DRYER, COOLER

main88474-50020iUVF4#201209

88703HOSE SUB-ASSY, DISCHARGE

main88703-50070iUVF4#201209

88704HOSE SUB-ASSY, SUCTION

main88704-50020iUVF4#..CHI,EUR201209

main88704-50040iUVF4#..GCC201209

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50041supersedes 88706-50120iUVF4#..EUR201209-201609

88707BTUBE SUB-ASSY, SUCTION, B

main88707-50030supersedes 88707-50300iUVF4#..EUR201209-201609

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50600supersedes 88716-50860iUVF4#..EUR201209-201609

88718LCLAMP, PIPING

main88718-32220×4iUVF4#201209-201309

main88718-50390×4iUVF4#201309-201405

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iUVF4#201209

8868850310BRACKET, COOLER DIAPHRAGM

main88688-50310

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

8871850560PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50560

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

31 parts on this diagram · 3 diagrams in section
