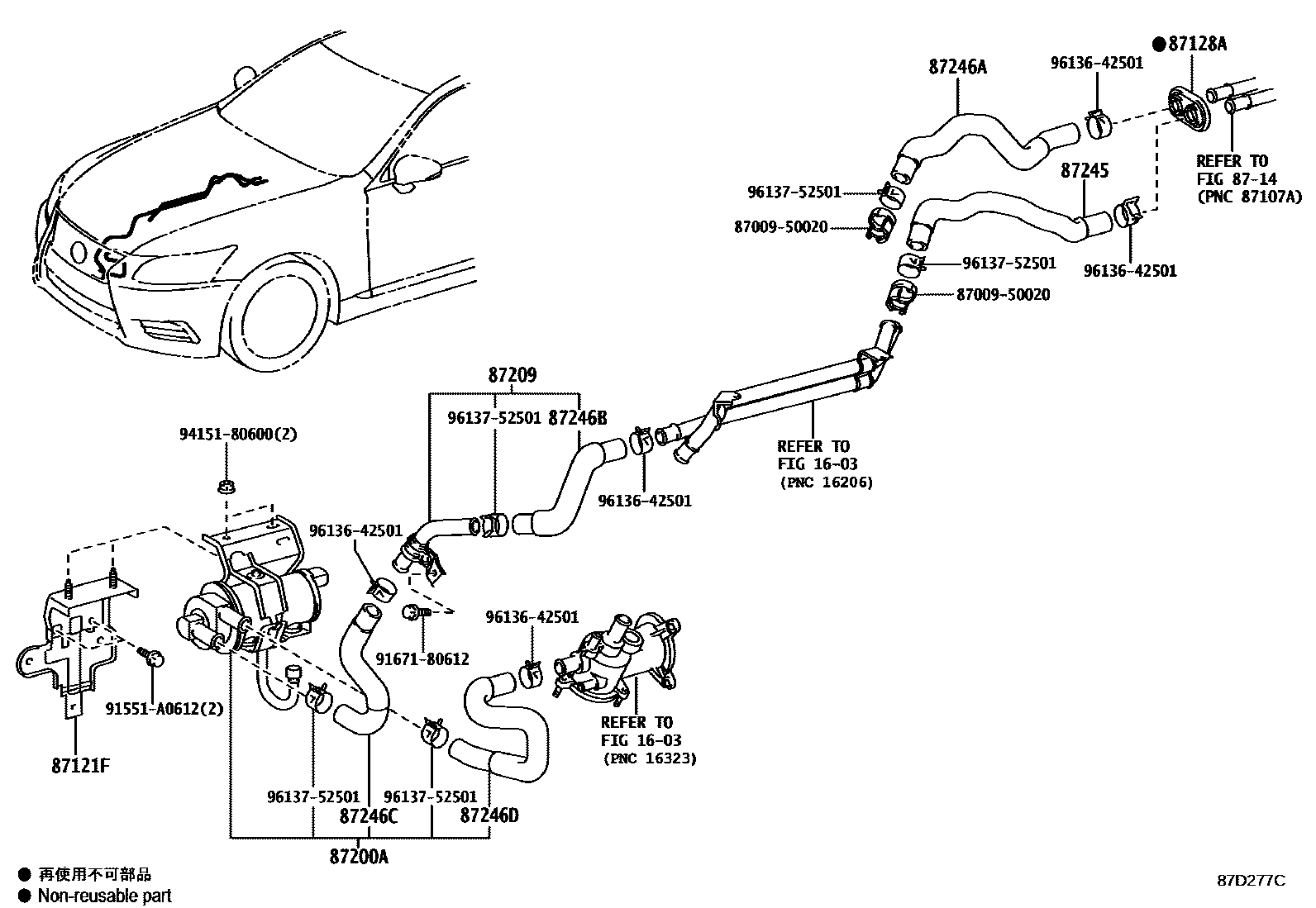

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1603

87121FBRACKET, HEATER

main87121-50010iUVF4#..RHD201209

main87121-50020iUVF4#..LHD201209

87128AGROMMET, HEATER

main87128-30060iUVF4#201503

main87128-35020iUVF4#201209-201502

8714

87200APUMP ASSY, WATER(FOR HEATER)

main87200-50010iUVF4#201209

87209HOSE SUB-ASSY, WATER

main87209-50070iUVF4#201209

87245HOSE, HEATER WATER, INLET

main87245-50390iUVF4#201209

87246AHOSE, HEATER WATER, OUTLET A

main87245-50400iUVF4#201209

87246BHOSE, HEATER WATER, OUTLET B

main87245-50430iUVF4#201209

87246CHOSE, HEATER WATER, OUTLET C

main87245-50410iUVF4#201209

87246DHOSE, HEATER WATER, OUTLET D

main87245-50420iUVF4#201209

8700950020HOSE SET, WATER, NO.1

main87009-50020

91551A0612

main91551-A0612

9167180612

main91671-80612

9415180600

main94151-80600

9613642501

main96136-42501

9613752501

main96137-52501

17 parts on this diagram · 2 diagrams in section
