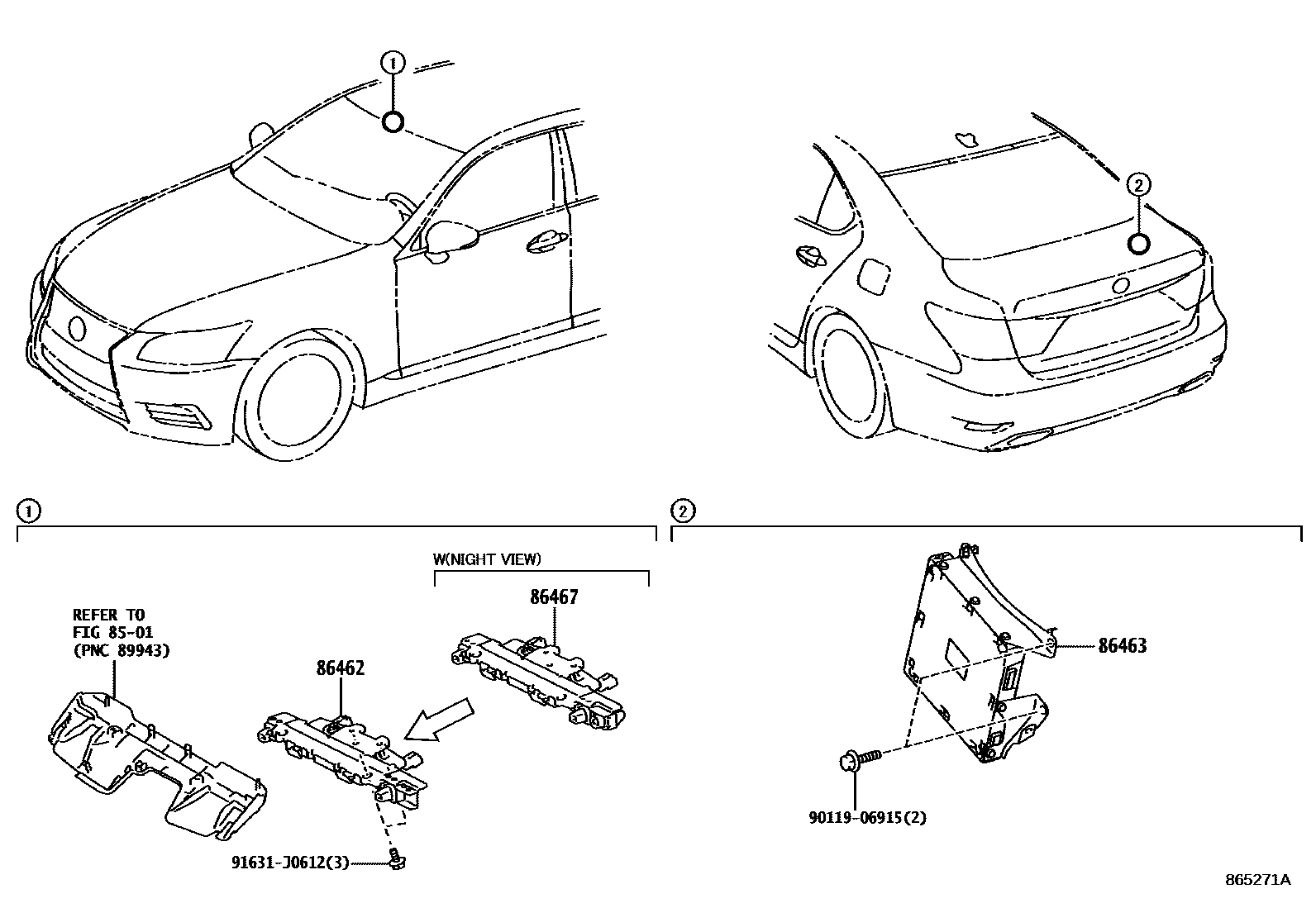

LANE-KEEPING ASSIST

0001 1 0002 1

8501

86462CAMERA, OBJECT RECOGNITION

main86462-50030iUVF46..LHD..EUR201209-201310

PRE-COLLISION SYSTEM-WITH(*PB)

main86462-50030iUVF45..RHD201209-201410

PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

86463COMPUTER, OBJECT RECOGNITION

main86463-50040iUVF46..GCC201209-201308

PRE-COLLISION SYSTEM-WITH(*PB)

sub86463-50041

main86463-50040iUVF46..GCC201209-201308

PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

sub86463-50041

main86463-50040iUVF46..CHI201211-201308

PRE-COLLISION SYSTEM-WITH(*RPCS)

sub86463-50041

main86463-50041iUVF46..LHD..EUR201309-201708

PRE-COLLISION SYSTEM-WITH(*PB)

main86463-50041iUVF46..CHI201309-201410

PRE-COLLISION SYSTEM-WITH(*RPCS)

main86463-50041iUVF46..CHI201309-201708

PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)

main86463-50041iUVF46..CHI201410-201708

86467CAMERA, OBJECT RECOGNITION W/NIGHT VIEW

main86467-50020iUVF45..RHD201209-201708

PRE-COLLISION SYSTEM-WITH(*RPCS & *PB)&NIGHT VIEW-VIEW ONLY

main86467-50020iUVF46..CHI201211-201410

PRE-COLLISION SYSTEM-WITH(*RPCS)

main86467-50020iUVF46..GCC201209-201708

PRE-COLLISION SYSTEM-WITH(*PB)&NIGHT VIEW-VIEW ONLY

main86467-50020iUVF46..CHI201410-201708

9011906915

main90119-06915

91631J0612

main91631-J0612

6 parts on this diagram · 2 diagrams in section
