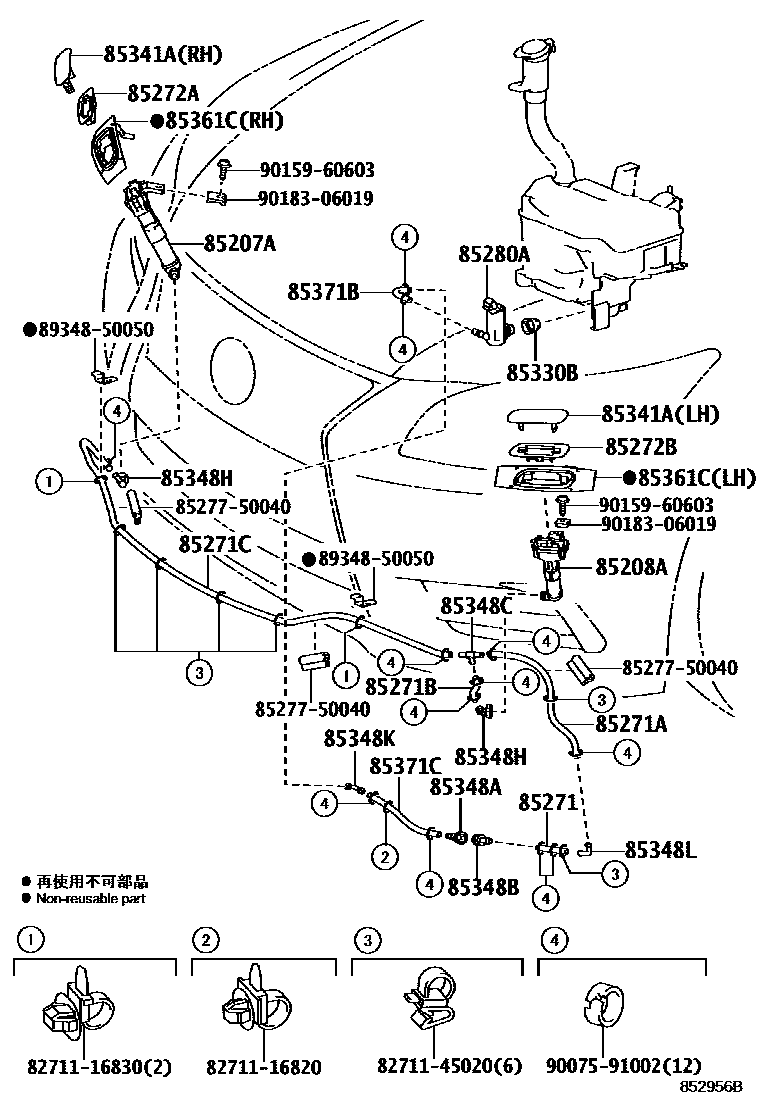

HEADLAMP CLEANER
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
L=50
85271AHOSE, HEADLAMP CLEANER, NO.2
L=400
85271BHOSE, HEADLAMP CLEANER, NO.3
L=80
85271CHOSE, HEADLAMP CLEANER, NO.4
L=1700
85272ACLAMP, HEADLAMP CLEANER, NO.1
F SPORT
85272BCLAMP, HEADLAMP CLEANER, NO.2
F SPORT
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341ACOVER,HEADLAMP CLEANER WASHER NOZZLE
WHITE PEARL CS.,077,RH,P/N85353-50011
SONIC QUARTZ,085,RH,P/N85353-50011
MERCURY GRAY MC.,1H9,RH,P/N85353-50011
SONIC SILVER,1J2,RH,P/N85353-50011
SONIC TITANIUM,1J7,RH,P/N85353-50011
BLACK,212,RH,P/N85353-50011
BLACK OPAL MC.,214,RH,P/N85353-50011
STARLIGHT BLACK GF.,217,RH,P/N85353-50011
GRAPHITE BLACK GF.,223,RH,P/N85353-50011
RED MC.CS.,3R1,RH,P/N85353-50011
SLEEK ECRU ME.,4U7,RH,P/N85353-50011
FIRE AGATE M.M.,4V3,RH,P/N85353-50011
AMBER CS.,4X2,RH,P/N85353-50011
DEEP BLUE MC.,8X5,RH,P/N85353-50011
WHITE NOVA GF.,083 ,2MH,RH,P/N85353-50021
F SPORT,WHITE NOVA GF.,083,RH,P/N85353-50021
WHITE NOVA GF.,083,RH,P/N85353-50021
F SPORT,MERCURY GRAY MC.,1H9,RH,P/N85353-50021
MERCURY GRAY MC.,1H9,RH,P/N85353-50021
F SPORT,SONIC SILVER,1J2,RH,P/N85353-50021
SONIC SILVER,1J2,RH,P/N85353-50021
F SPORT,SONIC TITANIUM,1J7,RH,P/N85353-50021
SONIC TITANIUM,1J7,RH,P/N85353-50021
BLACK,212,RH,P/N85353-50021
F SPORT,BLACK,212,RH,P/N85353-50021
STARLIGHT BLACK GF.,217,RH,P/N85353-50021
F SPORT,STARLIGHT BLACK GF.,217,RH,P/N85353-50021
GRAPHITE BLACK GF.,223,RH,P/N85353-50021
F SPORT,GRAPHITE BLACK GF.,223,RH,P/N85353-50021
F SPORT,RED MC.CS.,3R1,RH,P/N85353-50021
RED MC.CS.,3R1,RH,P/N85353-50021
RH,UNPAINTED
RH,UNPAINTED
F SPORT,RH,UNPAINTED
WHITE PEARL CS.,077,LH,P/N85354-50011
SONIC QUARTZ,085,LH,P/N85354-50011
MERCURY GRAY MC.,1H9,LH,P/N85354-50011
SONIC SILVER,1J2,LH,P/N85354-50011
SONIC TITANIUM,1J7,LH,P/N85354-50011
BLACK,212,LH,P/N85354-50011
BLACK OPAL MC.,214,LH,P/N85354-50011
STARLIGHT BLACK GF.,217,LH,P/N85354-50011
GRAPHITE BLACK GF.,223,LH,P/N85354-50011
RED MC.CS.,3R1,LH,P/N85354-50011
SLEEK ECRU ME.,4U7,LH,P/N85354-50011
FIRE AGATE M.M.,4V3,LH,P/N85354-50011
AMBER CS.,4X2,LH,P/N85354-50011
DEEP BLUE MC.,8X5,LH,P/N85354-50011
WHITE NOVA GF.,083 ,2MH,LH,P/N85354-50021
WHITE NOVA GF.,083,LH,P/N85354-50021
F SPORT,WHITE NOVA GF.,083,LH,P/N85354-50021
MERCURY GRAY MC.,1H9,LH,P/N85354-50021
F SPORT,MERCURY GRAY MC.,1H9,LH,P/N85354-50021
F SPORT,SONIC SILVER,1J2,LH,P/N85354-50021
SONIC SILVER,1J2,LH,P/N85354-50021
F SPORT,SONIC TITANIUM,1J7,LH,P/N85354-50021
SONIC TITANIUM,1J7,LH,P/N85354-50021
F SPORT,BLACK,212,LH,P/N85354-50021
BLACK,212,LH,P/N85354-50021
STARLIGHT BLACK GF.,217,LH,P/N85354-50021
F SPORT,STARLIGHT BLACK GF.,217,LH,P/N85354-50021
GRAPHITE BLACK GF.,223,LH,P/N85354-50021
F SPORT,GRAPHITE BLACK GF.,223,LH,P/N85354-50021
RED MC.CS.,3R1,LH,P/N85354-50021
F SPORT,RED MC.CS.,3R1,LH,P/N85354-50021
LH,UNPAINTED
LH,UNPAINTED
F SPORT,LH,UNPAINTED
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85361CBRACKET, WASHER
RH
RH
F SPORT,RH
LH
LH
F SPORT,LH
85371BHOSE, HEADLAMP CLEANER (FROM MOTOR TO JOINT)
L=80
85371CHOSE, HEADLAMP CLEANER, NO.1
L=180
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
8527750040HOSE, HEADLAMP CLEANER, C
main85277-50040
8934850050RETAINER, ULTRASONIC SENSOR, NO.1
main89348-50050
9007591002
main90075-91002
9015960603
main90159-60603
9018306019
main90183-06019
28 parts on this diagram · 2 diagrams in section
