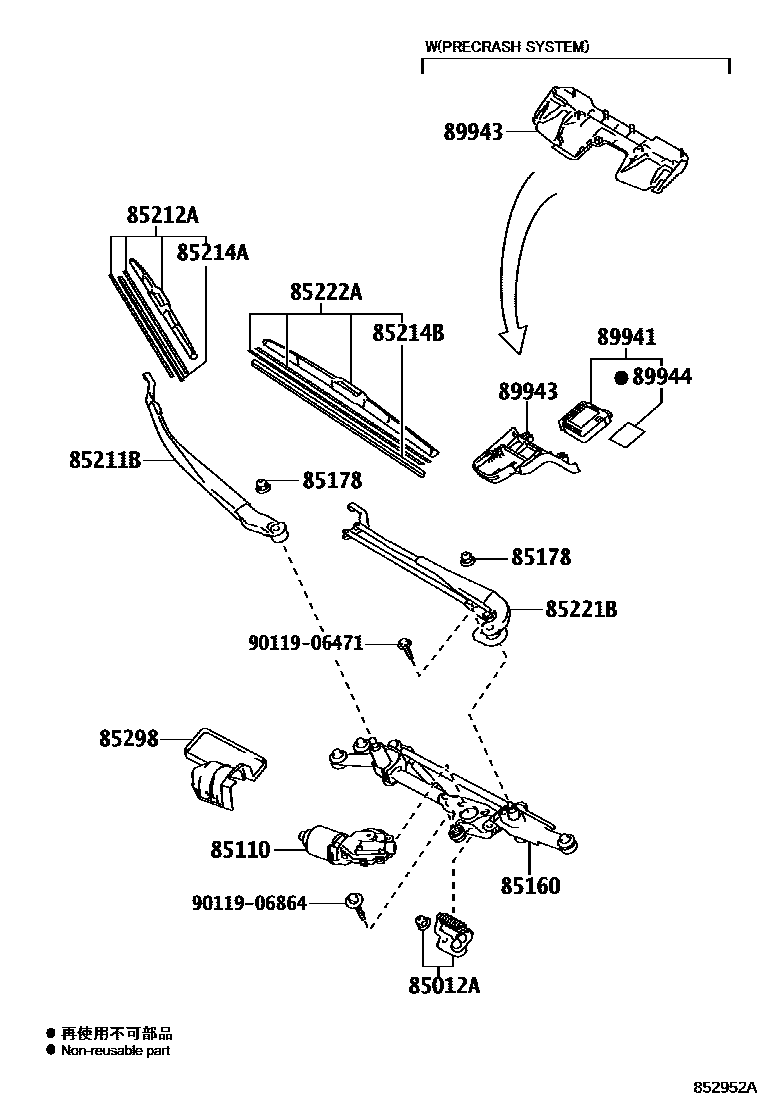

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-50010iUVF4#..RHD201209

main85012-58030iUVF4#..LHD201209

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-48210iUVF4#..RHD201210

main85110-50140iUVF4#..LHD201209-201210

sub85110-47240

main85110-50160iUVF4#..RHD201209-201210

main85110-58090iUVF4#..LHD201210

85160LINK ASSY, WINDSHIELD WIPER

main85150-50200iUVF4#..LHD201209

main85150-50210iUVF4#..RHD201209

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-10005×2iUVF4#201209

85211BARM, FRONT WIPER, RH

main85211-50140iUVF4#..LHD201209

main85211-50160supersedes 85211-50170iUVF4#..RHD201209

AUSTRALIA,NEW ZEALAND SPEC

85212ABLADE, FR WIPER, RH

main85212-42120iUVF4#..LHD201209-201708

main85212-50100iUVF4#..RHD201209-201708

85214ARUBBER, WIPER, RH

main85214-30380iUVF4#..RHD201209

main85214-42050iUVF4#..LHD201209

85214BRUBBER, WIPER, LH

main85214-30380iUVF4#..LHD201209

main85214-42050iUVF4#..RHD201209

85221BARM, FRONT WIPER, LH

main85221-50120iUVF4#..GCC201209

main85221-50140iUVF4#..LHD..(CHI,EUR)201209

main85221-50130supersedes 85221-50150iUVF4#..RHD201209

AUSTRALIA,NEW ZEALAND SPEC

85222ABLADE, FR WIPER, LH

main85222-42100iUVF4#..RHD201209-201708

main85222-50080iUVF4#..LHD201209-201708

85298COVER, WIPER MOTOR

main85111-50060iUVF4#..LHD201209

main85111-50070iUVF4#..RHD201209

89941SENSOR, RAIN

main89941-50050supersedes 89941-50060iUVF46..CHI201410

main89941-50060iUVF4#..EUR,GCC201209

89943COVER, RAIN SENSOR

main75631-50101supersedes 89943-50030iUVF46..CHI201410-201708

main89943-50020iUVF4#..RHD201209-201708

main89943-50030iUVF4#..LHD..(EUR,GCC)201209-201708

main75631-50091iUVF46..RHD201309-201708

PRE-COLLISION SYSTEM-WITH(*PB)

89944TAPE, RAIN SENSOR

main89944-50021iUVF4#201209

9011906471

main90119-06471

9011906864

main90119-06864

16 parts on this diagram · 2 diagrams in section
