TIRE PRESSURE WARNING SYSTEM

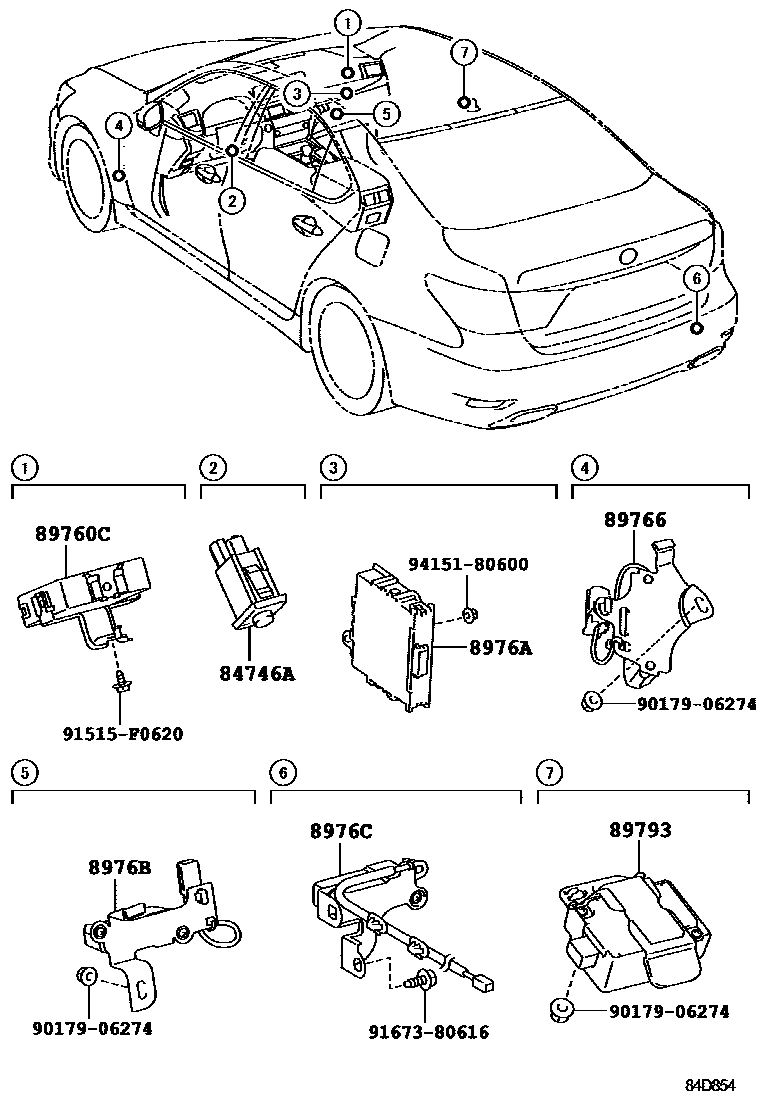

Parts diagram
84746ASWITCH, TIRE PRESSURE WARNING, NO.1
main84746-50010i201209-201708
89760CRECEIVER ASSY, TIRE PRESSURE MONITOR
main89760-50110i201211
main89760-50150i201209
ISRAEL SPEC&SPARE TIRE-GROUND TIRE
main89760-50160i201209-201305
SOUTH AMERICA SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
SOUTH AMERICA SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT,MARK=B8
sub89760-50161
main89760-50160i201209-201305
AUSTRALIA,NEW ZEALAND SPEC,MARK=B8
sub89760-50161
main89760-50160i201209-201305
AUSTRALIA,NEW ZEALAND SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
HONGKONG,MACAO SPEC,MARK=B8
sub89760-50161
main89760-50160i201209-201305
HONGKONG,MACAO SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
THAILAND SPEC,MARK=B8
sub89760-50161
main89760-50160i201209-201305
THAILAND SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT,MARK=B8
sub89760-50161
main89760-50160i201209-201305
SOUTHEAST ASIA SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
MARK=B8
sub89760-50161
main89760-50160i201209-201305
PHILIPPINES SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50160i201209-201305
PHILIPPINES SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT,MARK=B8
sub89760-50161
main89760-50160i201209-201305
INDIA SPEC&SPARE TIRE-GROUND TIRE,MARK=B8
sub89760-50161
main89760-50161i201305
AUSTRALIA,NEW ZEALAND SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
PHILIPPINES SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
PHILIPPINES SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT
main89760-50161i201305
INDIA SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
SOUTH AMERICA SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
SOUTH AMERICA SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT
main89760-50161i201305
AUSTRALIA,NEW ZEALAND SPEC
main89760-50161i201305
HONGKONG,MACAO SPEC
main89760-50161i201305
HONGKONG,MACAO SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
THAILAND SPEC
main89760-50161i201305
THAILAND SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&SPARE TIRE-GROUND TIRE
main89760-50161i201305
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC&SPARE TIRE-GROUND TIRE&TIRE INFLATION PRESSURE WARNING-WITHOUT
main89760-50161i201305
SOUTHEAST ASIA SPEC&SPARE TIRE-GROUND TIRE
89766ANTENNA, TIRE PRESSURE, FRONT LH
main89766-50020i201209-201409
PHILIPPINES SPEC
sub89766-50021
main89766-50020i201209-201409
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
sub89766-50021
main89766-50020i201209-201409
THAILAND SPEC
sub89766-50021
main89766-50020i201209-201409
SOUTH AMERICA SPEC
sub89766-50021
main89766-50021i201410
HONGKONG,MACAO SPEC
main89766-50021i201410
PHILIPPINES SPEC
main89766-50021i201410
SOUTH AMERICA SPEC
main89766-50021i201410
AUSTRALIA,NEW ZEALAND SPEC
main89766-50021i201410
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
main89766-50021i201410
THAILAND SPEC
main89766-50030i201211-201409
sub89766-50031
main89766-50031i201410
TAIWAN SPEC
main89766-50031i201410
SOUTH AMERICA SPEC
main89766-50031i201410
THAILAND SPEC
8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR
main8976A-50010i201209-201505
SOUTH AMERICA SPEC
sub8976A-50011
main8976A-50010i201209-201505
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
sub8976A-50011
main8976A-50010i201209-201505
PHILIPPINES SPEC
sub8976A-50011
main8976A-50011i201506
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
sub8976A-50012
main8976A-50011i201506
PHILIPPINES SPEC
sub8976A-50012
main8976A-50011i201506
SOUTH AMERICA SPEC
sub8976A-50012
main8976A-50020i201209-201409
THAILAND SPEC
sub8976A-50021
main8976A-50020i201209-201409
AUSTRALIA,NEW ZEALAND SPEC
sub8976A-50021
main8976A-50020i201209-201409
HONGKONG,MACAO SPEC
sub8976A-50021
main8976A-50021i201410-201505
AUSTRALIA,NEW ZEALAND SPEC
sub8976A-50022
main8976A-50021i201410-201505
THAILAND SPEC
sub8976A-50022
main8976A-50021i201410-201505
HONGKONG,MACAO SPEC
sub8976A-50022
main8976A-50022i201506-201706
HONGKONG,MACAO SPEC
sub8976A-50023
main8976A-50022i201506-201706
THAILAND SPEC
sub8976A-50023
main8976A-50022i201506-201706
AUSTRALIA,NEW ZEALAND SPEC
sub8976A-50023
main8976A-50023i201707
THAILAND SPEC
sub8976A-50024
main8976A-50023i201707
AUSTRALIA,NEW ZEALAND SPEC
sub8976A-50024
main8976A-50023i201707
HONGKONG,MACAO SPEC
sub8976A-50024
8976BINITIATOR, TIRE PRESSURE MONITOR FRONT
main8976B-50010i201209-201409
PHILIPPINES SPEC
sub8976B-50011
main8976B-50010i201209-201409
SOUTH AMERICA SPEC
sub8976B-50011
main8976B-50010i201209-201409
THAILAND SPEC
sub8976B-50011
main8976B-50010i201209-201409
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
sub8976B-50011
main8976B-50011i201410
SOUTH AMERICA SPEC
main8976B-50011i201410
PHILIPPINES SPEC
main8976B-50011i201410
AUSTRALIA,NEW ZEALAND SPEC
main8976B-50011i201410
HONGKONG,MACAO SPEC
main8976B-50011i201410
THAILAND SPEC
main8976B-50011i201410
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
8976CINITIATOR, TIRE PRESSURE MONITOR REAR
main8976C-50010i201209-201409
PHILIPPINES SPEC
sub8976C-50011
main8976C-50010i201209-201409
SOUTH AMERICA SPEC
sub8976C-50011
main8976C-50010i201209-201409
AUSTRALIA,NEW ZEALAND SPEC
sub8976C-50011
main8976C-50010i201209-201409
HONGKONG,MACAO SPEC
sub8976C-50011
main8976C-50010i201209-201409
THAILAND SPEC
sub8976C-50011
main8976C-50010i201209-201409
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
sub8976C-50011
main8976C-50011i201410
PHILIPPINES SPEC
main8976C-50011i201410
SOUTH AMERICA SPEC
main8976C-50011i201410
AUSTRALIA,NEW ZEALAND SPEC
main8976C-50011i201410
HONGKONG,MACAO SPEC
main8976C-50011i201410
THAILAND SPEC
main8976C-50011i201410
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
89793ANTENNA, TIRE PRESSURE ROOF
main89793-50020i201209
PHILIPPINES SPEC
main89793-50020i201209
SOUTH AMERICA SPEC
main89793-50020i201209
AUSTRALIA,NEW ZEALAND SPEC
main89793-50020i201209
HONGKONG,MACAO SPEC
main89793-50020i201209
THAILAND SPEC
main89793-50020i201209
KAZAKHSTAN,BELARUS,ADRIA,CAUCAS SPEC
main89793-50030i201211
9017906274
main90179-06274
91515F0620
main91515-F0620
9167380616
main91673-80616
9415180600
main94151-80600

11 parts on this diagram · 2 diagrams in section
