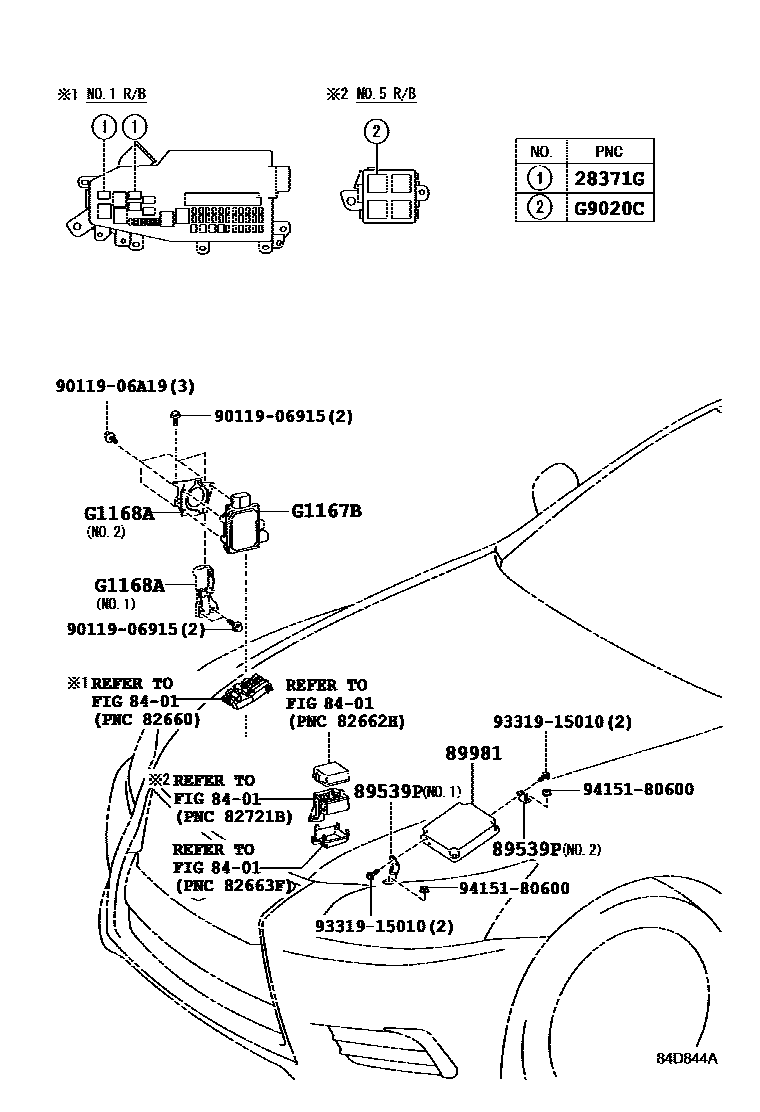

HEV CONTROL COMPUTER

28371GRELAY, IGNITION CONTACT

main90987-02027×2i2URFSE..UVF4#201209-201708

8401

89539PBRACKET, COMPUTER

main89539-50040iUVF4#201209

NO.1

main89539-50050iUVF4#201209

NO.2

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-50150iUVF4#201209-201309

main89981-50190iUVF4#201309

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116750011iUVF4#201209

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116850010iUVF4#201209

NO.1

mainG116850020iUVF4#201209

NO.2

G9020CRELAY, OIL PUMP

main90987-02025iUVF4#201209-201708

9011906915

main90119-06915

9011906A19

main90119-06A19

9331915010

main93319-15010

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
