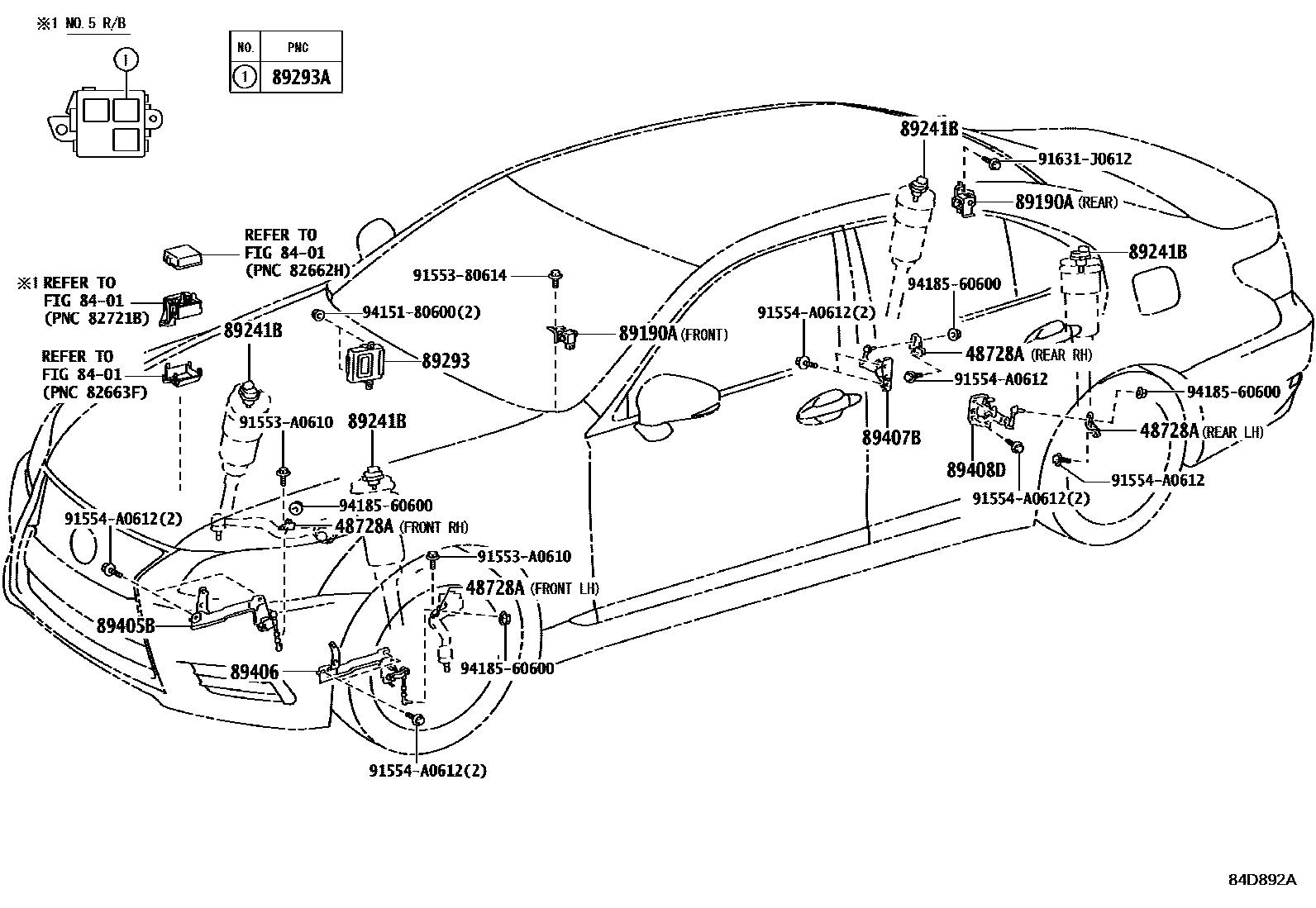

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

48728ABRACKET, LOAD SENSING VALVE SENSOR

main48728-50010iUVF4#201209-201708

REAR RH

main48728-50020iUVF4#201209-201708

REAR LH

main48728-50030iUVF4#201209-201708

FRONT RH

main48728-50040iUVF4#201209-201708

FRONT LH

8401

89190ASENSOR ASSY, ACCELERATION

main89190-30050iUVF4#201209

REAR

main89190-50011iUVF4#..RHD201209

FRONT

main89190-50021iUVF4#..LHD201209

FRONT

89241BACTUATOR, ABSORBER CONTROL

main89241-30041iUVF4#201209

89293COMPUTER, SUSPENSION CONTROL

main89293-50194iUVF46..LHD;UVF45..LHD..EUR201209-201309

main89293-50195iUVF46..LHD;UVF45..LHD..EUR201309-201410

main89293-50196iUVF46..LHD;UVF45..LHD..EUR201410

main89293-50204iUVF4#..RHD201209-201309

main89293-50205iUVF4#..RHD201309-201410

main89293-50206iUVF46..RHD201410

main89293-50412iUVF45..RHD201410

main89293-50420iUVF45..LHD..EUR201210-201309

F SPORT

main89293-50421iUVF45..GCC201309-201410

F SPORT

main89293-50422iUVF45..GCC201410

F SPORT

89293ARELAY, SUSPENSION CONTROL

main90987-02025iUVF4#201209-201708

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-50100iUVF4#201209

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-50130iUVF4#201209

89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-50070iUVF4#201209

89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-50070iUVF4#201209

9155380614

main91553-80614

91553A0610

main91553-A0610

91554A0612

main91554-A0612

91631J0612

main91631-J0612

9415180600

main94151-80600

9418560600

main94185-60600

16 parts on this diagram · 2 diagrams in section
