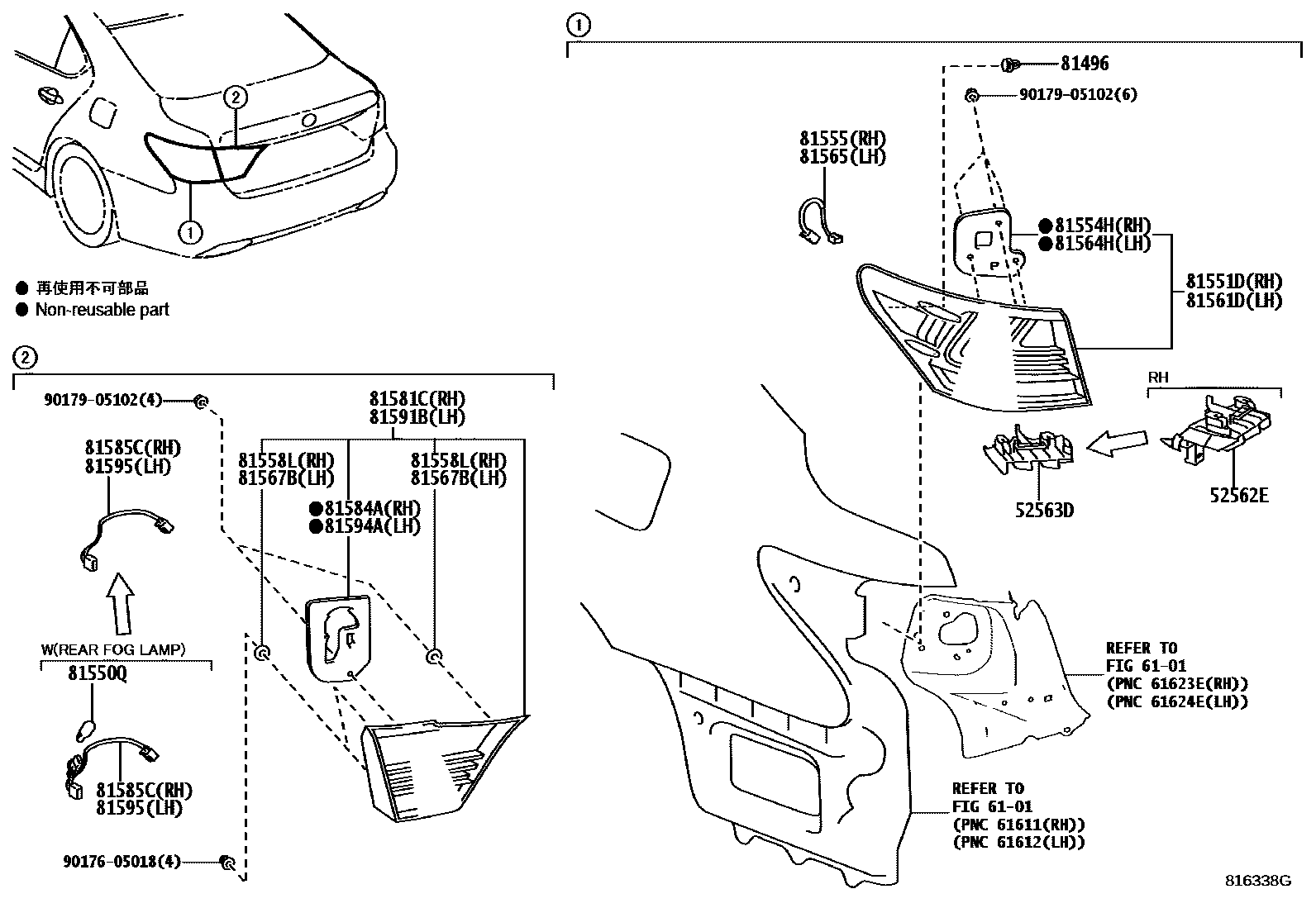

REAR COMBINATION LAMP
52562ERETAINER, REAR BUMPER, UPPER RH
52563DRETAINER, REAR BUMPER, UPPER LH
6101
81496GUIDE, REAR COMBINATION LAMP
81550QBULB, REAR FOG LAMP, NO.1
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81554HPACKING, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81558LPROTECTOR, REAR COMBINATION LAMP, RH
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81564HPACKING, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81567BPROTECTOR, REAR COMBINATION LAMP, LH
81581CLENS AND BODY, REAR LAMP, RH
81584AGASKET, REAR LAMP RH
81585CSOCKET & WIRE, REAR LAMP, RH
81591BLENS AND BODY, REAR LAMP, LH
81594AGASKET, REAR LAMP LH
81595SOCKET & WIRE, REAR LAMP, LH
9017605018
main90176-05018
9017905102
main90179-05102
21 parts on this diagram · 1 diagram in section
