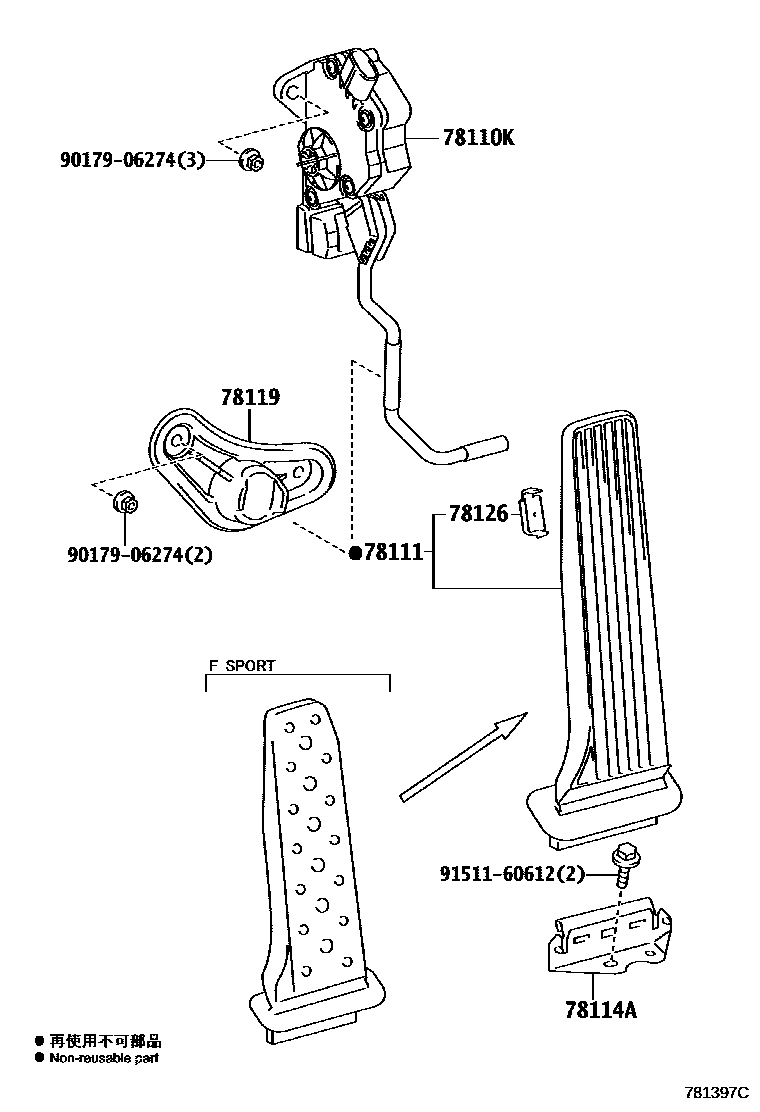

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-50030iUVF4#..LHD201209-201308

sub78110-50031

main78110-50031iUVF4#..LHD201309-201601

sub78110-50080

main78110-50040iUVF4#..RHD201209-201308

sub78110-50041

main78110-50041iUVF4#..RHD201309-201601

sub78110-50070

main78110-50070iUVF4#..RHD201602

main78110-50080iUVF4#..LHD201602

78111PEDAL, ACCELERATOR

main78101-30080iUVF45..GCC201210-201309

F SPORT

main78101-50010iUVF45..GCC201309

F SPORT

main78101-50020iUVF45..RHD201410

main78101-50030iUVF46..LHD;UVF45..LHD..EUR201309

main78101-50040iUVF45..RHD201309-201410

main78111-30200iUVF46;UVF45..EUR201209-201309

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78108-50030iUVF4#..LHD201209-201309

main78108-50040iUVF4#..RHD201209-201309

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50070iUVF4#..LHD201209

main78119-50080iUVF4#..RHD201209

78126BRACKET, ACCELERATOR PEDAL ROD

main78126-30060iUVF4#201209-201309

9017906274

main90179-06274

9151160612

main91511-60612

7 parts on this diagram · 4 diagrams in section
