BATTERY CARRIER

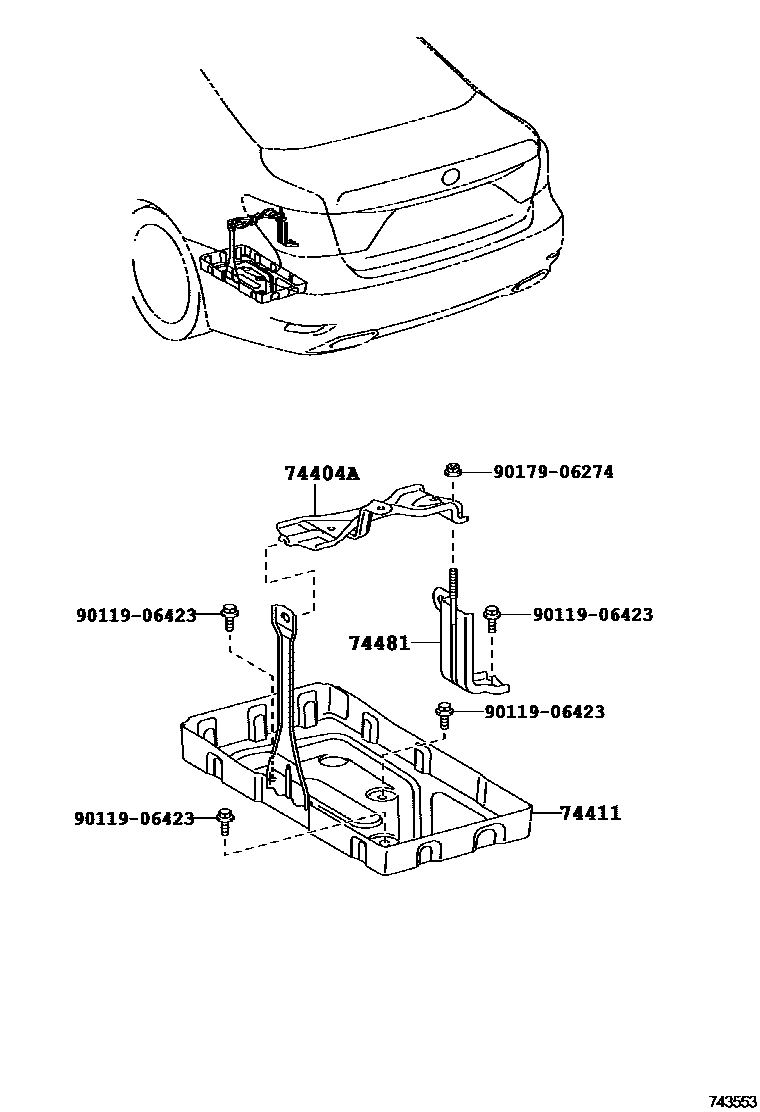

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-50060i201209

74411CARRIER, BATTERY

main74410-50030i201209

74481CLAMP, BATTERY HOLD DOWN

main74406-50010i201209

9011906423

main90119-06423

9017906274

main90179-06274

5 parts on this diagram · 1 diagram in section
