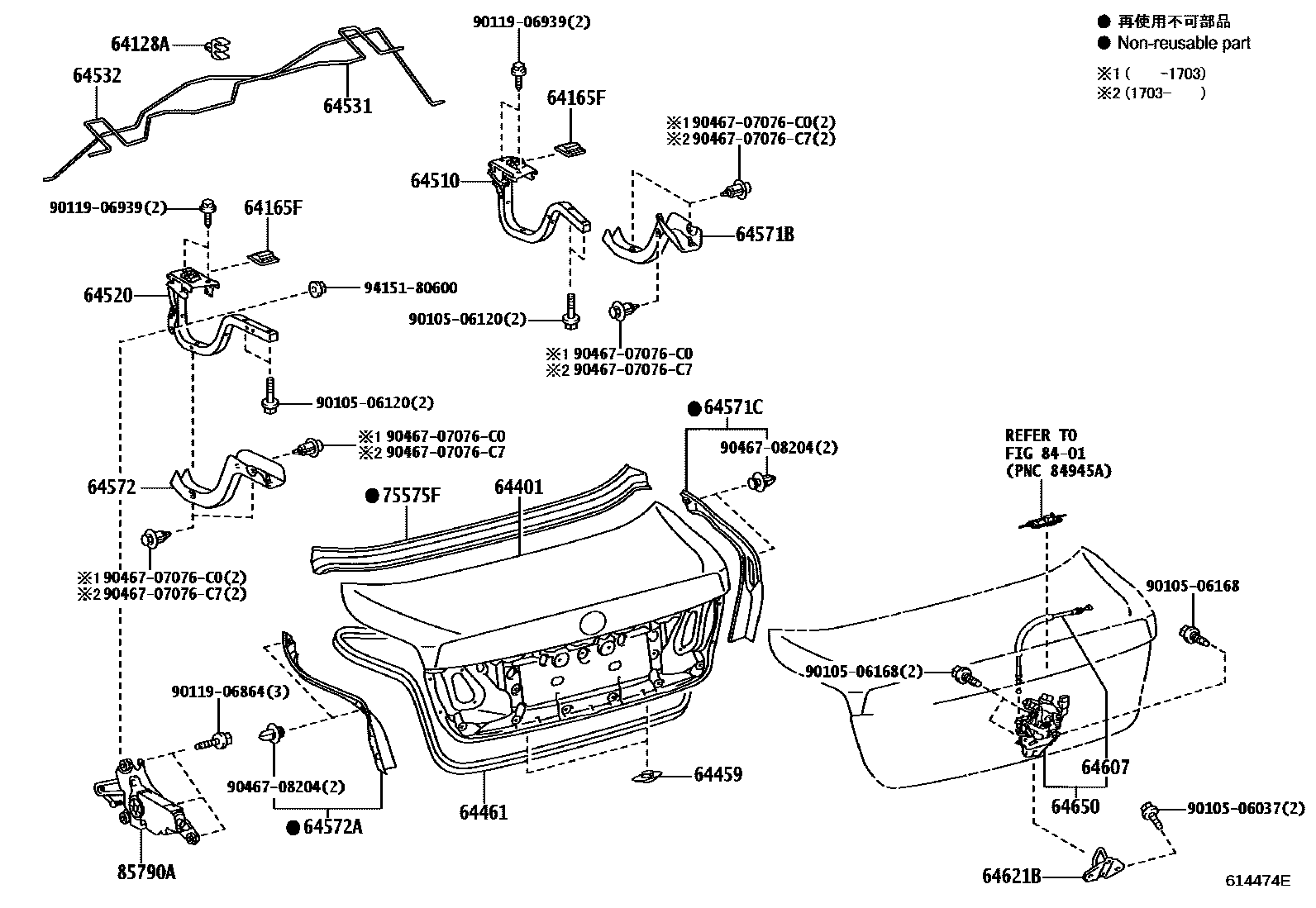

LUGGAGE COMPARTMENT DOOR & LOCK

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-33010iUVF4#201209-201708

64165FCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-50030iUVF4#201209

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-50340iUVF4#201209-201708

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-50020iUVF4#201209

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-50040iUVF4#201209

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-50062iUVF4#201209-201308

sub64510-50063

main64510-50063iUVF4#201309

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-50062iUVF4#201209-201308

sub64520-50063

main64520-50063iUVF4#201309

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-50071iUVF4#201209

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-50061iUVF4#201209

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-50050iUVF4#201209

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-50070iUVF4#201209

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-50040iUVF4#201209

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-50060iUVF4#201209

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-50030iUVF4#201209

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-50030iUVF4#201209

64650CLOSER ASSY, LUGGAGE DOOR

main64650-50050iUVF4#201209

75575FMOULDING, BACK WINDOW, OUTSIDE LOWER

main75575-50030iUVF4#201209

8401

85790AMOTOR ASSY, LUGGAGE CLOSER

main85790-50021iUVF4#201209

9010506037

main90105-06037

9010506120

main90105-06120

9010506168

main90105-06168

9011906864

main90119-06864

9011906939

main90119-06939

9046707076C0

main90467-07076C0

9046707076C7

main90467-07076C7

9046708204

main90467-08204

9415180600

main94151-80600

28 parts on this diagram · 1 diagram in section
