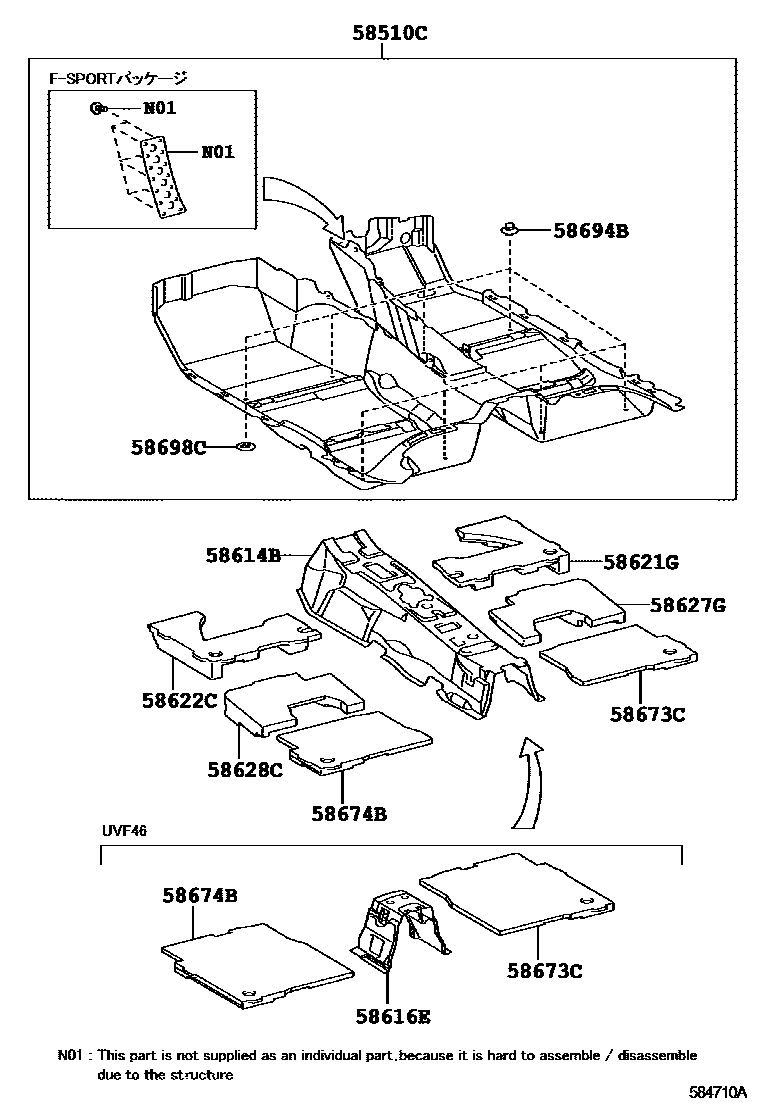

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-50890-C2i201210-201309

F SPORT,BLACK,TRIM2#

main58510-50B50-A4i201209-201309

MELLOW WHITE,TRIM00,02

main58510-50B50-A5i201209-201309

IVORY,TRIM01

main58510-50B50-C2i201209-201309

BLACK,TRIM1#,2#,4#,5#

main58510-50B60-A2i201209-201309

MELLOW WHITE,TRIM00,02

main58510-50B60-A3i201209-201309

IVORY,TRIM01

main58510-50B60-C1i201209-201309

BLACK,TRIM1#,2#,4#,5#

main58510-50C70-A2i201211-201309

MELLOW WHITE,TRIM00

main58510-50C70-A3i201211-201309

IVORY,TRIM01

main58510-50C70-C1i201211-201309

BLACK,TRIM2#,4#,5#

main58510-50G80-A1i201309-201410

MELLOW WHITE,TRIM00,02

main58510-50G80-A2i201309-201410

IVORY,TRIM01

main58510-50G80-C1i201309-201410

BLACK,TRIM1#,2#,4#,5#

main58510-50G90-A0i201309-201708

MELLOW WHITE,TRIM00,02

main58510-50G90-A1i201309-201708

IVORY,TRIM01

main58510-50G90-C0i201309-201708

BLACK,TRIM1#,2#,4#,5#

main58510-50K10-C0i201410-201708

BLACK,TRIM2#

main58510-50K20-C0i201309-201708

F SPORT,BLACK,TRIM2#

main58510-50K70-A0i201309-201708

MELLOW WHITE,TRIM00

main58510-50K70-A1i201309-201708

IVORY,TRIM01

main58510-50K70-C0i201309-201708

BLACK,TRIM2#,4#,5#

main58510-50880-C2i201210-201309

F SPORT&,BLACK,TRIM2#

main58510-50B70-A2supersedes 58510-50B40-A3i201209-201309

EXECUTIVE PACKAGE(4SEAT)&LEATHER INSTRUMENT PANEL&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),MELLOW WHITE,TRIM00

main58510-50B70-A3supersedes 58510-50B40-A4i201209-201309

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY,TRIM01

main58510-50B70-C1supersedes 58510-50B40-C1i201209-201309

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK,TRIM1#,2#,4#,5#

main58510-50C40-A2supersedes 58510-50B40-A3i201209-201309

EXECUTIVE PACKAGE(5SEAT)&LEATHER INSTRUMENT PANEL&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),MELLOW WHITE,TRIM00

main58510-50C40-A3supersedes 58510-50B40-A4i201209-201309

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY,TRIM01

main58510-50C40-C1supersedes 58510-50B40-C1i201209-201309

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK,TRIM1#,2#,4#,5#

main58510-50C50-A2supersedes 58510-50B80-A4i201209-201309

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),MELLOW WHITE,TRIM00,02

main58510-50C50-A3supersedes 58510-50B80-A5i201209-201309

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY,TRIM01

main58510-50C50-C1supersedes 58510-50B80-C5i201209-201309

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK,TRIM1#,2#,4#,5#

main58510-50C60-A2supersedes 58510-50B80-A4i201209-201309

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),MELLOW WHITE,TRIM00,02

main58510-50C60-A3supersedes 58510-50B80-A5i201209-201309

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY,TRIM01

main58510-50C60-C1supersedes 58510-50B80-C5i201209-201309

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK,TRIM1#,2#,4#,5#

main58510-50J00-A0supersedes 58510-50G70-A0i201309-201708

EXECUTIVE PACKAGE(4SEAT)&LEATHER INSTRUMENT PANEL&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),MELLOW WHITE,TRIM00

main58510-50J00-A1supersedes 58510-50G70-A1i201309-201708

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY,TRIM01

main58510-50J00-C0supersedes 58510-50G70-C0i201309-201708

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK,TRIM1#,2#,4#,5#

main58510-50J70-A0supersedes 58510-50G70-A0i201309-201708

EXECUTIVE PACKAGE(5SEAT)&LEATHER INSTRUMENT PANEL&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),MELLOW WHITE,TRIM00

main58510-50J70-A1supersedes 58510-50G70-A1i201309-201708

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY,TRIM01

main58510-50J70-C0supersedes 58510-50G70-C0i201309-201708

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK,TRIM1#,2#,4#,5#

main58510-50J80-A0supersedes 58510-50J10-A1i201309-201708

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),MELLOW WHITE,TRIM00,02

main58510-50J80-A1supersedes 58510-50J10-A2i201309-201708

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),IVORY,TRIM01

main58510-50J80-C0supersedes 58510-50J10-C4i201309-201708

EXECUTIVE PACKAGE(5SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:*CB & *BD:*CB(CENTER),BLACK,TRIM1#,2#,4#,5#

main58510-50K30-A0supersedes 58510-50J10-A1i201309-201708

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),MELLOW WHITE,TRIM00,02

main58510-50K30-A1supersedes 58510-50J10-A2i201309-201708

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),IVORY,TRIM01

main58510-50K30-C0supersedes 58510-50J10-C4i201309-201708

EXECUTIVE PACKAGE(4SEAT)&TELEVISION & DVD PLAYER-REAR DISPLAY:ROOF & *BD:*CB(REAR),BLACK,TRIM1#,2#,4#,5#

58614BSHEET, CENTER FLOOR SILENCER

main58644-50080i201209

58616ESHEET, CENTER FLOOR SILENCER, CENTER

main58644-50070i201209

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-50030i201209

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-50020i201209

58627GPAD, CENTER FLOOR SILENCER, REAR RH

main58627-50030i201209

58628CPAD, CENTER FLOOR SILENCER, REAR LH

main58628-50030i201209

58673CPAD, REAR FLOOR SILENCER, NO.1

main58673-50030i201209

main58673-50040i201209

58674BPAD, REAR FLOOR SILENCER, NO.2

main58674-50040i201209

main58674-50050i201209

58694BPLATE, MAT SET, UPPER

main58694-50010-A2×8i201209-201708

MELLOW WHITE,TRIM00,02

main58694-50010-A3×8i201209-201708

IVORY,TRIM01

main58694-50010-C3×8i201209-201708

BLACK,TRIM1#,2#,4#,5#

58698CPLATE, MAT SET, LOWER

main58698-76010×8i201209

11 parts on this diagram · 4 diagrams in section
