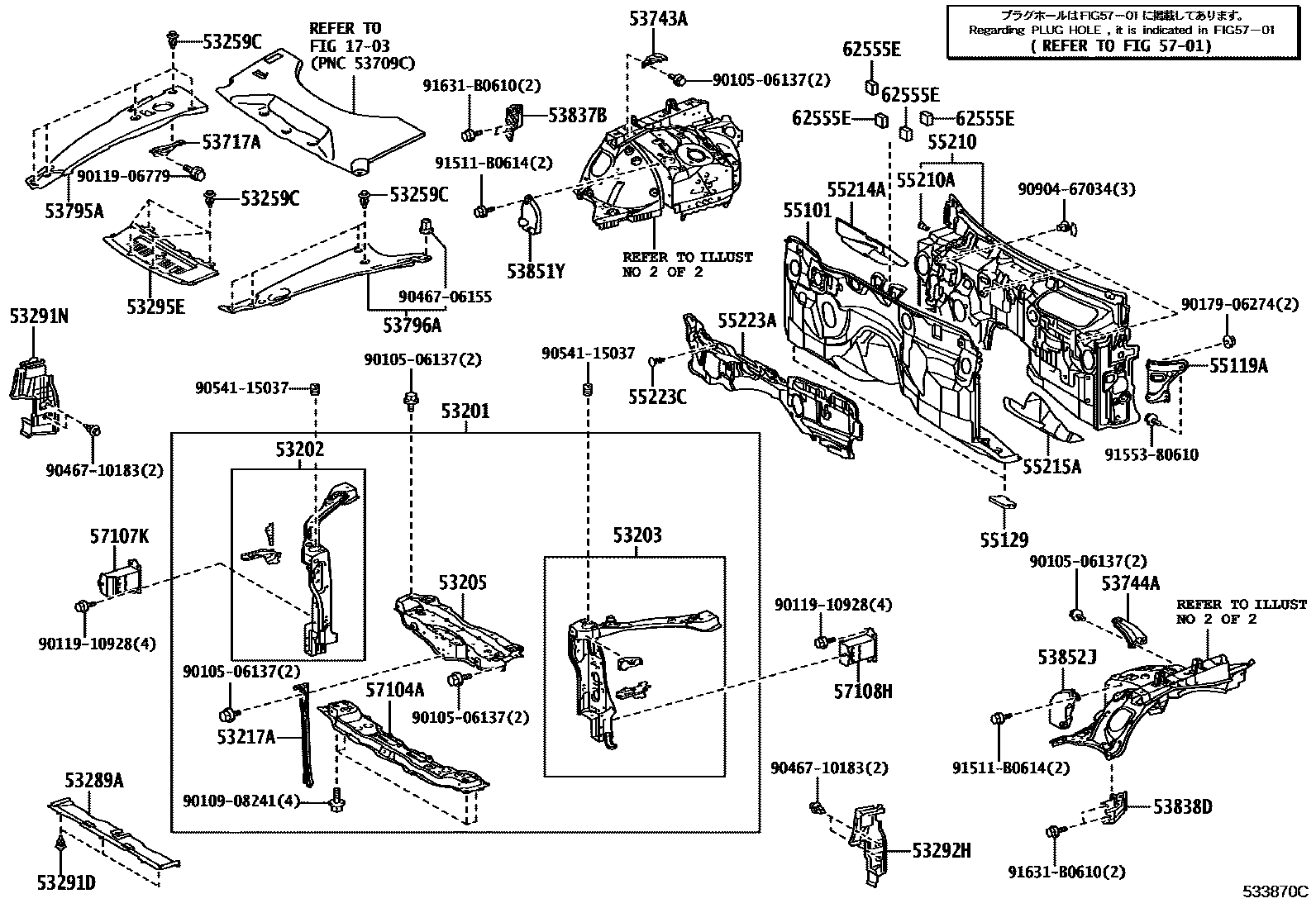

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1FRONT FENDER APRON

53201SUPPORT SUB-ASSY, RADIATOR

main53201-50090iUVF4#201209

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-50902iUVF4#201209-201303

sub53202-50903

sub82715-50E80

main53202-50903iUVF4#201303

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-50902iUVF4#201209

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-50060iUVF4#201209

53217ABRACE, HOOD LOCK SUPPORT

main53205-50070iUVF4#201209

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211iUVF4#201209-201211

main90467-07217iUVF4#201211

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-50070iUVF4#201209

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07201iUVF4#201209

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-50070iUVF4#201209

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-50070iUVF4#201209

53295ESEAL, COOL AIR INTAKE DUCT

main53295-50040iUVF4#201209

53717APLATE, FENDER APRON

main53717-50030iUVF4#..LHD201209

main53717-50040iUVF4#..RHD201209

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-50050iUVF4#201209

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-50050iUVF4#201209

53795ACOVER, ENGINE ROOM, SIDE

main53795-50090iUVF4#..RHD201209

main53795-50100iUVF4#..LHD201209

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-50050iUVF4#..LHD201209

main53796-50070iUVF4#..RHD201209

53837BBRACKET, FRONT SIDE PANEL, NO.2

main53837-50020iUVF4#201209

53838DBRACKET, FRONT SIDE PANEL, NO.2 LH

main53838-50030iUVF4#201209

53851YPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53853-50011iUVF4#201209

53852JPAD, FRONT WHEEL OPENING EXTENSION, LH

main53855-50011iUVF4#201209

55101PANEL SUB-ASSY, DASH

main55101-50120iUVF4#..LHD201209

main55101-50130iUVF4#..RHD201209

55119AEXTENSION, DASH PANEL, LH

main55119-50010iUVF4#201209

55129COVER, DASH PANEL HOLE

main55129-50010iUVF4#201209

RH

main55139-50020iUVF4#201209

LH

55210INSULATOR ASSY, DASH PANEL

main55210-50140iUVF4#..LHD201209-201511

sub55210-50141

main55210-50141iUVF4#..LHD201512

main55210-50150iUVF4#..RHD201209

55210ACLIP

main90467-13079iUVF4#201209

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-50090iUVF4#..RHD201209-201309

main55214-50100iUVF4#..LHD201209

main55214-50110iUVF4#..RHD201309

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-50050iUVF4#..LHD201209-201309

main55215-50060iUVF4#..RHD201209

main55215-50070iUVF4#..LHD201309

55223AINSULATOR, DASH PANEL, OUTER

main55223-50091iUVF4#..LHD201209-201302

sub55223-50092

main55223-50092iUVF4#..LHD201303-201512

sub55223-50093

main55223-50093iUVF4#..LHD201601

main55223-50101iUVF4#..RHD201209

55223CCLIP

main90467-06020-C0iUVF4#201209-201708

BLACK

sub90467-06020

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-50090iUVF4#201209

57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-50031iUVF4#201209

57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57107-50031iUVF4#201209

62555EPAD, PILLAR, NO.5

main62555-89101iUVF4#201209

9010506137

main90105-06137

9010908241

main90109-08241

9011906779

main90119-06779

9011910928

main90119-10928

9017906274

main90179-06274

9046706155

main90467-06155

9046710183

main90467-10183

9054115037

main90541-15037

9090467034

main90904-67034

91511B0614

main91511-B0614

9155380610

main91553-80610

91631B0610

main91631-B0610

46 parts on this diagram · 3 diagrams in section
