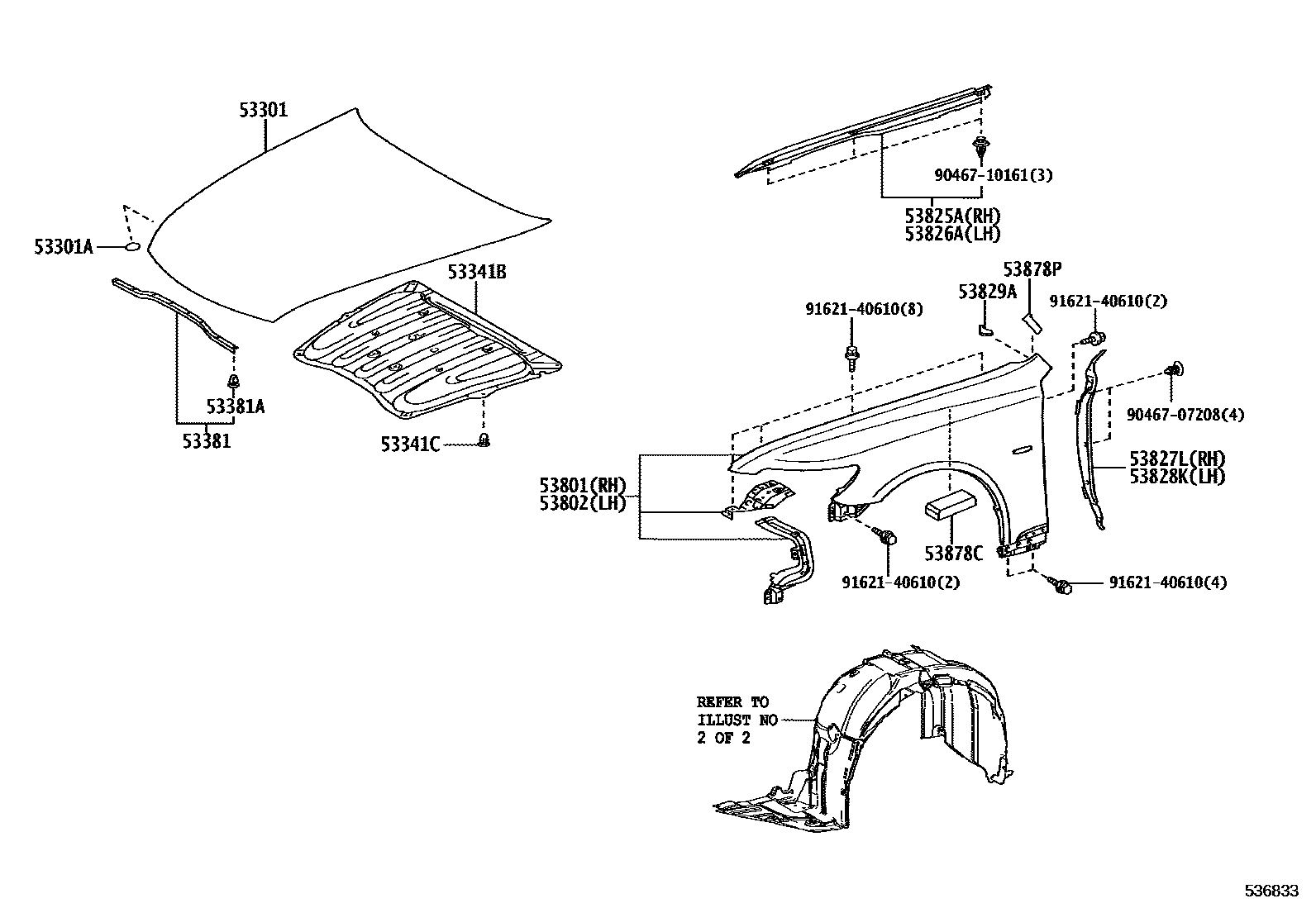

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-50100iUVF4#¥105,000201209-201708

53301APLUG, HOLE(FOR HOOD)

main90333-25003iUVF4#¥70201209

53341BINSULATOR, HOOD

main53341-50070iUVF4#¥10,400201209

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iUVF4#¥120201209

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-50080iUVF4#¥1,350201209

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUVF4#¥100201209

53801FENDER SUB-ASSY, FRONT RH

main53801-50200iUVF45..RHD¥76,300201209-201410

main53801-50210iUVF45..GCC¥76,300201210

F SPORT

main53801-50210iUVF45..RHD¥76,300201410

53802FENDER SUB-ASSY, FRONT LH

main53802-50200iUVF45..RHD¥76,300201209-201410

main53802-50210iUVF45..GCC¥76,300201210

F SPORT

main53802-50210iUVF45..RHD¥76,300201410

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-50020iUVF4#¥4,110201209

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-50020iUVF4#¥4,110201209

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-50060iUVF4#¥3,080201209

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-50060iUVF4#¥3,080201209

53829APROTECTOR, FRONT FENDER, LOWER

main53829-50010iUVF4#¥280201209

53878CSPACER, FRONT FENDER

main55783-30110iUVF4#¥740201209

53878PSPACER, FRONT FENDER

main53878-50030iUVF4#¥240201209

9046707208

main90467-07208¥110

9046710161

main90467-10161¥90

9162140610

main91621-40610¥70

18 parts on this diagram · 2 diagrams in section
