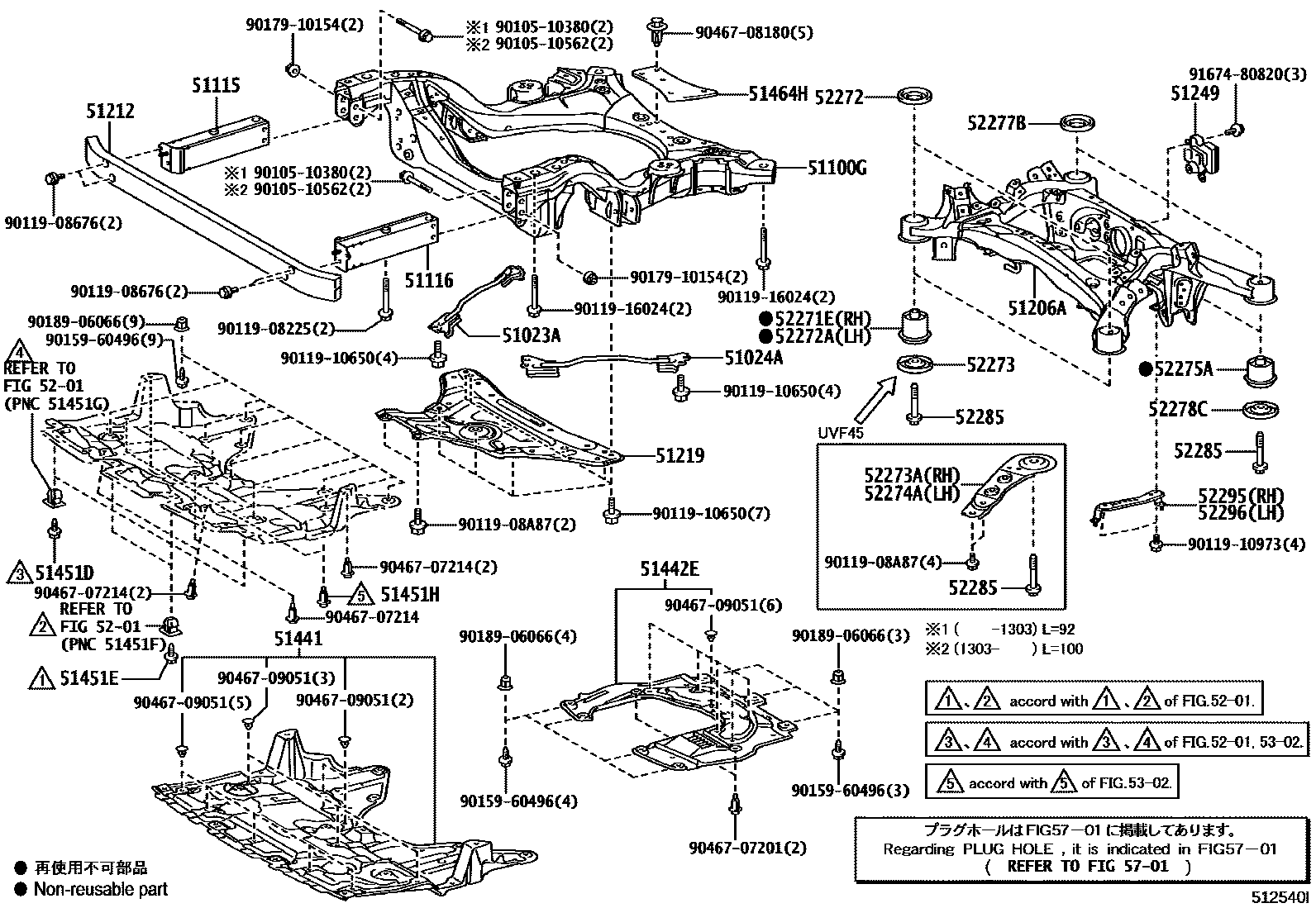

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-50010iUVF4#¥2,670201209

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-50010iUVF4#¥2,670201209

51100GFRAME ASSY, FRONT

main51100-50030iUVF4#¥95,500201209-201310

sub51100-50031¥79,500

sub90105-10562¥240

main51100-50031iUVF4#¥79,500201310-201708

sub51100-50032¥79,500

sub91674-A1028¥120

51115RAIL, FRAME SIDE, REAR RH

main51107-50022iUVF4#¥4,520201209

51116RAIL, FRAME SIDE, REAR LH

main51108-50022iUVF4#¥4,520201209

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50050iUVF4#¥115,000201209-201307

sub51206-50051¥57,500

main51206-50051iUVF4#¥57,500201308

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51212-50061iUVF4#¥11,800201209

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50030iUVF4#¥12,500201209

51249DAMPER, REAR SUSPENSION MEMBER

main51249-50030iUVF4#¥3,990201209

51441COVER, ENGINE UNDER, NO.1

main51440-50080iUVF4#..CHI,EUR¥15,400201209

main51440-50090iUVF4#..GCC201209

51442ECOVER, ENGINE UNDER, NO.2

main51420-50030iUVF4#¥11,200201209

51451DSCREW, NO.1

main90159-60477iUVF4#¥70201209-201708

51451ESCREW, NO.2

main90159-60477iUVF4#¥70201209-201708

51451HSCREW, NO.3

main90467-07214iUVF4#¥70201209-201708

51464HSILENCER, TRANSMISSION UNDER

main51464-50010iUVF4#¥720201209

5201

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-50060iUVF4#¥4,930201209-201302

sub52271-50061¥4,110

main52271-50061iUVF4#¥4,110201303

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52278-50030iUVF4#¥630201209

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-50010iUVF4#¥4,640201209-201302

sub52272-50011¥3,860

main52272-50011iUVF4#¥3,860201303

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-50020iUVF45..RHD¥430201209-201410

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-50010iUVF45..RHD¥3,270201410

main52203-50010iUVF45..GCC¥3,270201309

F SPORT

main52273-50040iUVF45..EUR¥3,490201210-201309

F SPORT

sub52203-50010¥3,270

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-50010iUVF45..GCC¥3,270201309

F SPORT

main52204-50010iUVF45..RHD¥3,270201410

main52274-50040iUVF45..EUR¥3,490201210-201309

F SPORT

sub52204-50010¥3,270

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50071iUVF4#¥4,930201209-201302

sub52275-50072¥4,110

main52275-50072iUVF4#¥4,110201303

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-50031iUVF4#¥840201209

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020iUVF4#¥840201209

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iUVF4#¥1,360201209-201302

main90119-14154iUVF4#¥360201303

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50030iUVF4#¥1,580201209

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50030iUVF4#¥1,580201209

5701

9010510380

main90105-10380¥310

9010510562

main90105-10562¥240

9011908225

main90119-08225¥0

9011908676

main90119-08676¥120

9011908A87

main90119-08A87¥100

9011910650

main90119-10650¥110

9011910973

main90119-10973¥100

9011916024

main90119-16024¥490

9015960496

main90159-60496¥60

9017910154

main90179-10154¥110

9018906066

main90189-06066¥80

9046707201

main90467-07201¥100

9046707214

main90467-07214¥70

9046708180

main90467-08180¥130

9046709051

main90467-09051¥120

9167480820

main91674-80820¥80

45 parts on this diagram · 2 diagrams in section
