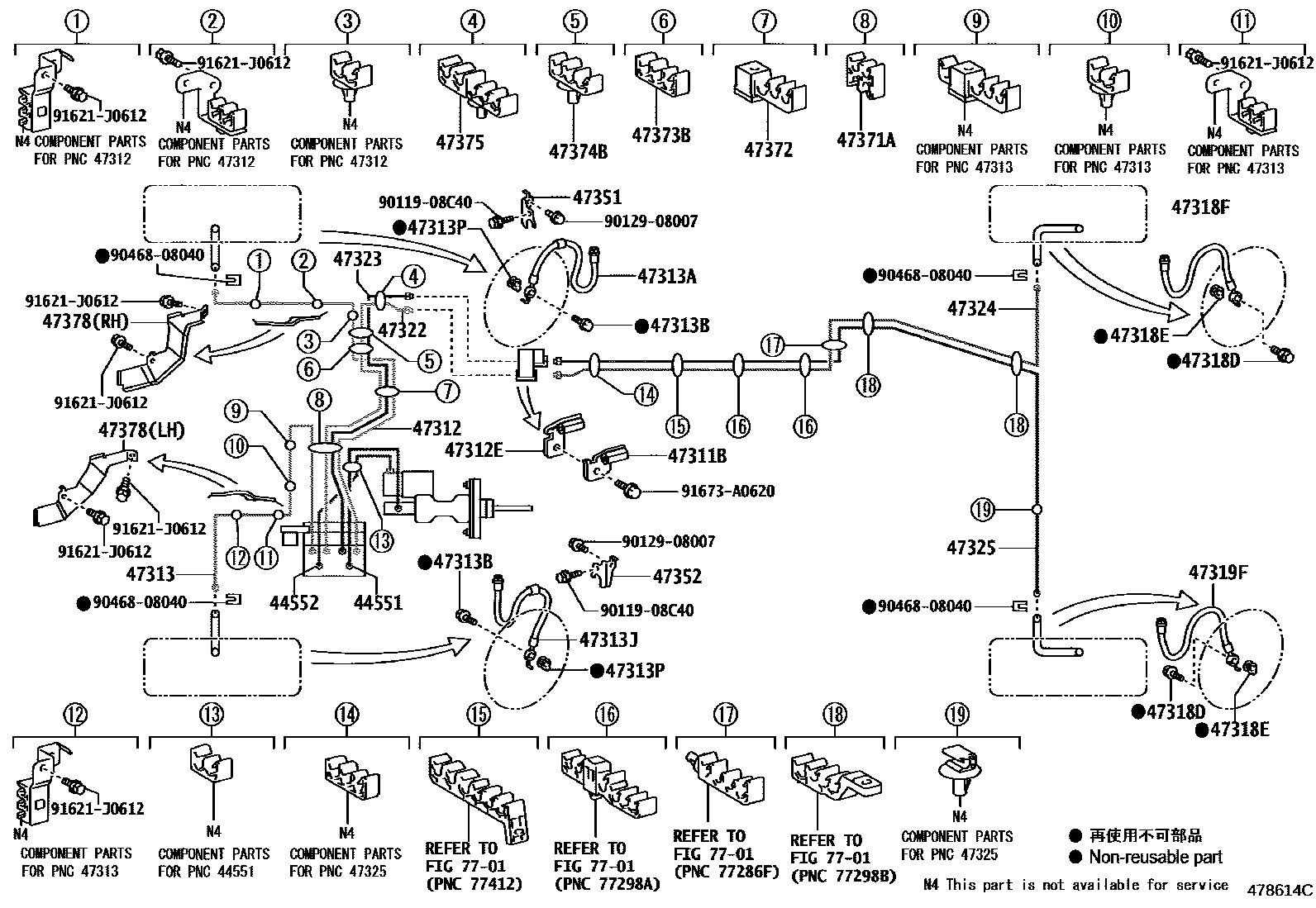

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-50110iUVF4#..LHD201209-201409

sub44551-50111

main44551-50111iUVF4#..LHD201410

main44551-50120iUVF4#..RHD201209-201409

sub44551-50121

main44551-50121iUVF4#..RHD201410

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-50061iUVF4#..LHD201209-201409

sub44552-50062

main44552-50062iUVF4#..LHD201410

main44552-50070iUVF4#..RHD201209-201409

sub44552-50071

main44552-50071iUVF4#..RHD201410

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10274iUVF4#201209-201309

main90412-10292iUVF4#201309

47312TUBE, FRONT BRAKE, NO.2

main47312-50270iUVF4#..RHD201209-201409

sub47312-50271

main47312-50271iUVF4#..RHD201410

main47312-50280iUVF4#..LHD201209-201409

sub47312-50281

main47312-50281iUVF4#..LHD201410

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10275iUVF4#201209-201309

main90412-10297iUVF4#201309

47313TUBE, FRONT BRAKE, NO.3

main47313-50221iUVF4#..LHD201209-201409

sub47313-50222

main47313-50222iUVF4#..LHD201410

main47313-50240iUVF4#..RHD201209-201409

sub47313-50241

main47313-50241iUVF4#..RHD201410

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F88iUVF4#201209

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iUVF4#201209

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02F89iUVF4#201209

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iUVF4#201209

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iUVF4#201209

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iUVF4#201209

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02F77iUVF4#201209

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02F77iUVF4#201209

47322TUBE, REAR BRAKE, NO.2

main47322-50240iUVF4#..LHD201209-201309

main47322-50250iUVF4#..RHD201209-201309

main47322-50290iUVF4#..LHD201309-201409

sub47322-50291

main47322-50291iUVF4#..LHD201410

main47322-50300iUVF4#..RHD201309-201409

sub47322-50301

main47322-50301iUVF4#..RHD201410

47323TUBE, REAR BRAKE, NO.3

main47323-50100iUVF4#..LHD201209-201309

main47323-50110iUVF4#..RHD201209-201309

main47323-50150iUVF4#..LHD201309-201409

sub47323-50151

main47323-50151iUVF4#..LHD201410

main47323-50160iUVF4#..RHD201309-201409

sub47323-50161

main47323-50161iUVF4#..RHD201410

47324TUBE, REAR BRAKE, NO.4

main47324-50160iUVF45201209-201309

main47324-50170iUVF46201209-201309

main47324-50180iUVF45201309-201708

sub47324-50181

main47324-50181iUVF45201410-201508

main47324-50190iUVF46201309-201708

main47324-50191iUVF46201410-201508

47325TUBE, REAR BRAKE, NO.5

main47325-50120iUVF45201209-201309

main47325-50130iUVF46201209-201309

main47325-50140iUVF45201309-201708

sub47325-50141

main47325-50141iUVF45201410-201508

main47325-50150iUVF46201309-201708

main47325-50151iUVF46201410-201508

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-50020iUVF4#201209-201708

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-50020iUVF4#201209-201708

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00876iUVF4#201209

47372CLAMP, BRAKE TUBE, NO.2

main47371-50200iUVF4#..LHD201309

main90949-01D08iUVF4#..LHD201209-201309

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00857iUVF4#..LHD201209

main90949-01D47iUVF4#..RHD201209

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D41iUVF4#..LHD201209

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D47iUVF4#..LHD201209

47378PROTECTOR, BRAKE TUBE

main47378-50040iUVF4#201209

RH

main47388-50030iUVF4#201209

LH

7701

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

91621J0612

main91621-J0612

91673A0620

main91673-A0620

32 parts on this diagram · 4 diagrams in section
