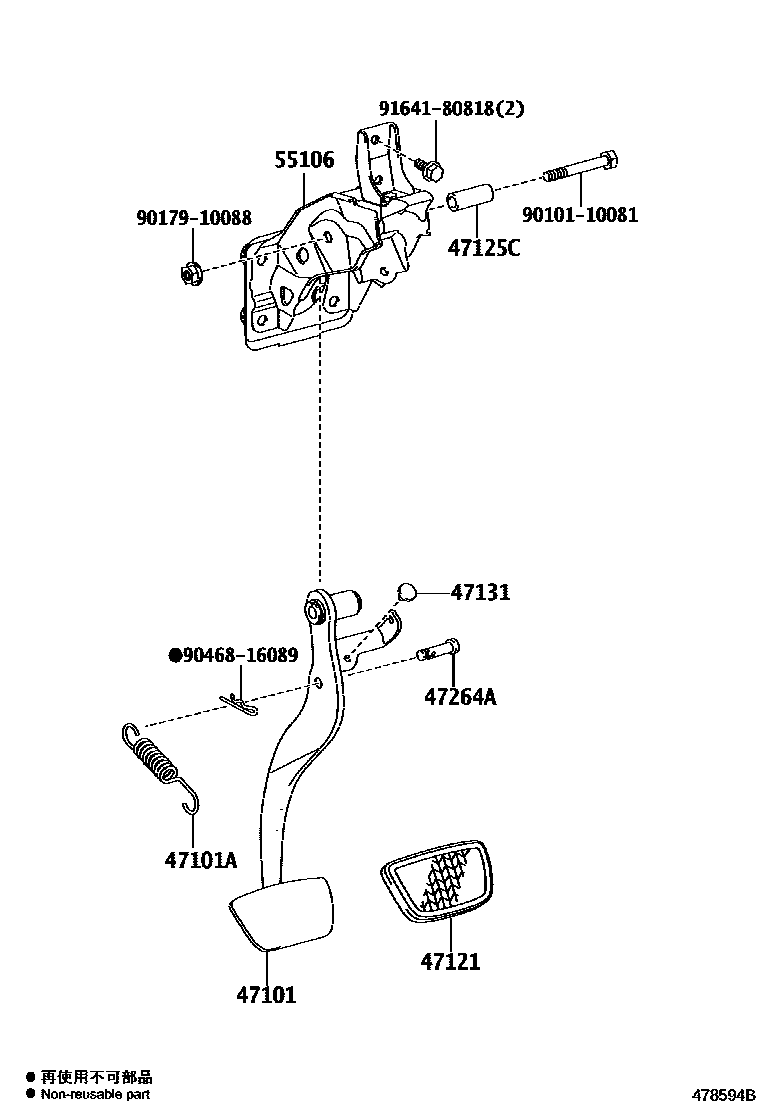

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-50130iUVF4#..RHD201209

main47101-50140iUVF4#..LHD201209

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07002iUVF4#201209

47121PAD, BRAKE PEDAL

main47121-30080iUVF45..RHD201209-201410

main47121-30090iUVF45..GCC201210

F SPORT

main47121-30090iUVF45..RHD201410

47125CCOLLAR(FOR BRAKE PEDAL BRACKET)

main47144-50010iUVF4#201209

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iUVF4#201209

47264APIN(FOR PUSH ROD)

main90249-10199iUVF4#201209

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-50090iUVF4#..LHD201209

main55106-50100iUVF4#..RHD201209

9010110081

main90101-10081

9017910088

main90179-10088

9046816089

main90468-16089

9164180818

main91641-80818

11 parts on this diagram · 1 diagram in section
