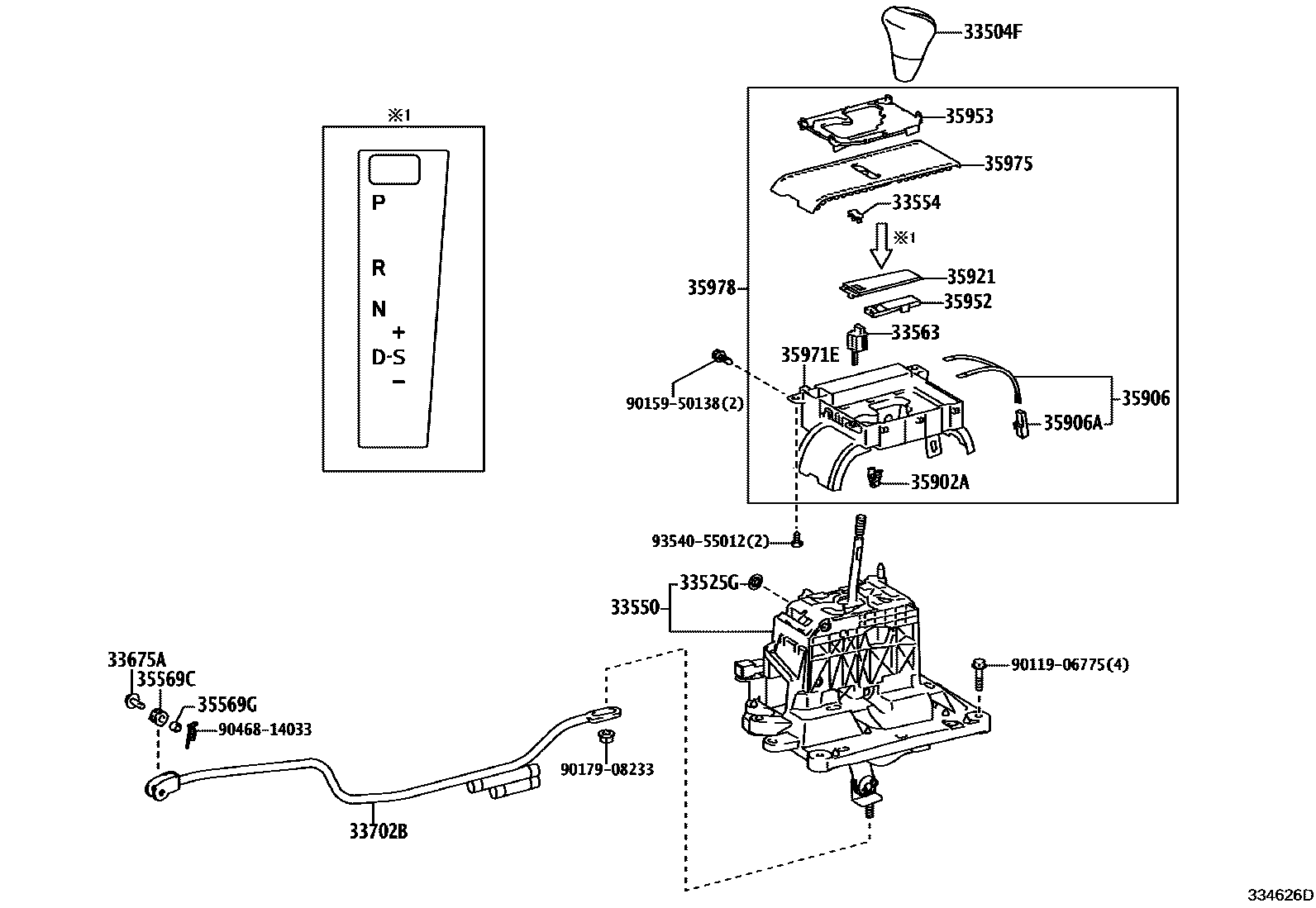

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-50350iUVF46..RHD201209-201410

main33504-50360iUVF46..LHD;UVF45..LHD..EUR201209

main33504-50370iUVF45..RHD201410

main33504-50380iUVF45..LHD..EUR201210

F SPORT

33525GRING, SHIFT LEVER

main33525-50020iUVF4#201209

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-50610iUVF4#..RHD201209-201210

sub33550-50611

main33550-50611iUVF4#..RHD201211

main33550-50620iUVF4#..LHD201209-201212

sub33550-50621

main33550-50621iUVF4#..LHD201212

33554CAP, SHIFT LEVER

main33554-50080iUVF4#201209

33563BUTTON, SHIFT LOCK RELEASE

main33563-50110iUVF4#..RHD201209

main33563-50120iUVF4#..LHD201209

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iUVF4#201209

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-50090iUVF4#201209

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iUVF4#201209-201708

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iUVF4#201209-201708

35902ACLIP, COVER SUB-ASSY, POSITION INDICATOR HOUSING

main90467-10203iUVF4#201209

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-50090iUVF4#201209

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-11967iUVF4#201209

35921PLATE, CONTROL POSITION INDICATOR

main35921-50180iUVF4#..RHD201209

main35921-50190iUVF4#..LHD201209

35952LENS, POSITION INDICATOR

main35952-50070iUVF4#..RHD201209

main35952-50080iUVF4#..LHD201209

35953GUIDE, POSITION INDICATOR LIGHT

main35953-50050iUVF4#..RHD201209

main35953-50060iUVF4#..LHD201209

35971EHOUSING, POSITION INDICATOR

main35971-50120iUVF4#..RHD201209

main35971-50130iUVF4#..LHD201209

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-50050iUVF4#201209

35978INDICATOR, SHIFT POSITION

main35978-50110iUVF4#..RHD201209-201708

main35978-50170iUVF4#..LHD201209-201708

9011906775

main90119-06775

9015950138

main90159-50138

9017908233

main90179-08233

9046814033

main90468-14033

9354055012

main93540-55012

23 parts on this diagram · 2 diagrams in section
