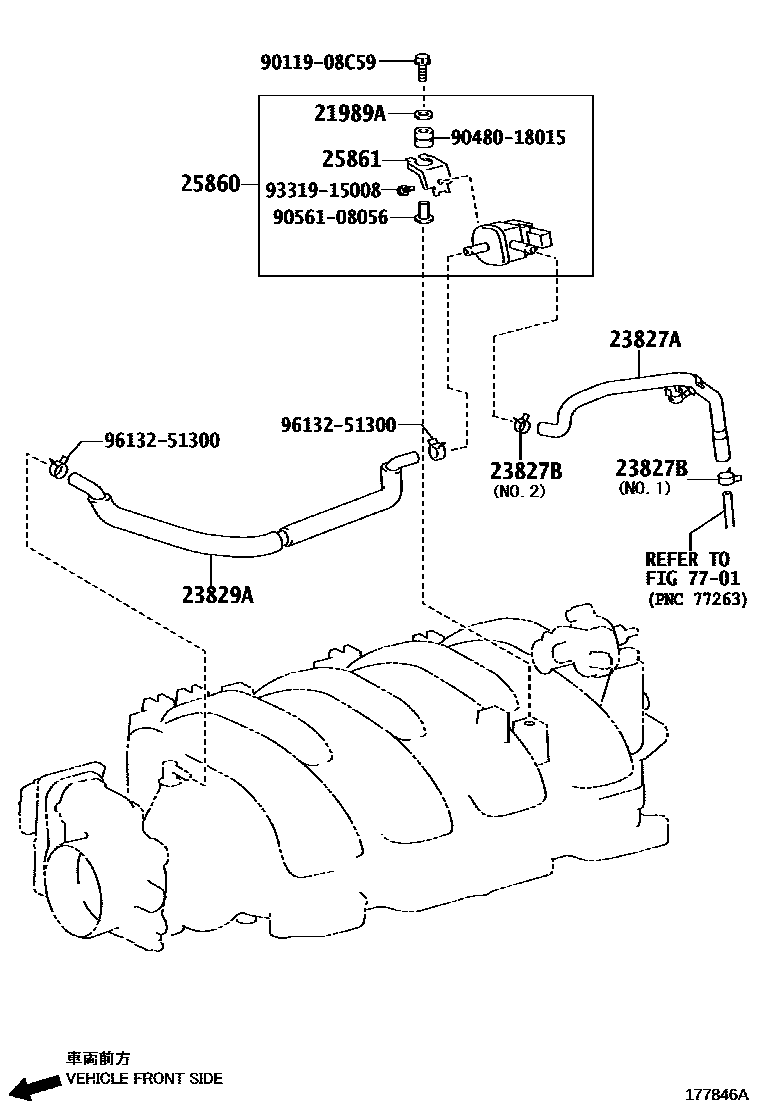

VACUUM PIPING

0001 1 0002 1

21989AINSULATOR, PLATE

main21989-38010i2URFSE..UVF4#¥370201209

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38020i2URFSE..UVF4#..LHD201209-201708

main23827-38030i2URFSE..UVF4#..RHD¥2,150201209-201708

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URFSE..UVF4#¥170201209-201708

NO.1

main96132-51300i2URFSE..UVF4#¥120201209-201708

NO.2

23829AHOSE, FUEL VAPOR FEED

main23829-38030i2URFSE..UVF4#¥3,090201209

sub23829-38031¥2,570

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i2URFSE..UVF4#¥3,480201209

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i2URFSE..UVF4#¥230201209

7701

9011908C59

main90119-08C59¥80

9048018015

main90480-18015¥100

9056108056

main90561-08056¥90

9331915008

main93319-15008¥170

9613251300

main96132-51300¥120

12 parts on this diagram · 2 diagrams in section
