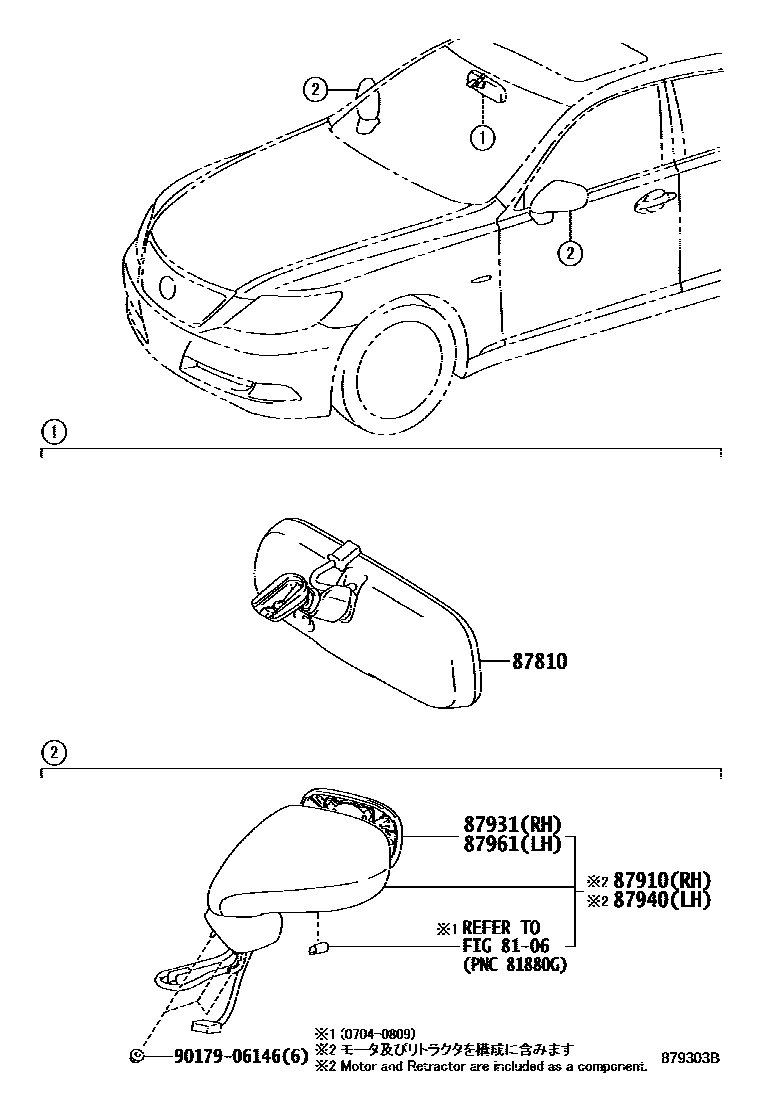

MIRROR

8106

87810MIRROR ASSY, INNER REAR VIEW

main87810-0W540i200911

NEW ZEALAND SPEC

main87810-0W450supersedes 87810-0W430i200911

PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)

main87810-0W510supersedes 87810-0W500i200911

PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)

main87810-50341supersedes 87810-50301i200809-200911

PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)

sub87810-50342

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-50570-A1i200704-200707

BLUISH PEARL CS.,074

main87910-50570-A2i200809-200810

WHITE PEARL CS.,077

main87910-50570-B0i200809-200810

PREMIUM SILVER,1F2

main87910-50570-B1i200704-200809

DK.GRAY MC.,1G0

main87910-50570-B2i200809-200810

FROSTY PEARL MC.,1G5

main87910-50570-C0i200704-200809

BLACK,212

main87910-50570-C1i200809-200810

BLACK OPAL MC.,214

main87910-50570-D1i200809-200810

DK.RED MC.CS.,3R7

main87910-50570-E0i200704-200809

BEIGE ME.,4T1

main87910-50570-E1i200809-200810

SABLE M.M.,4T5

main87910-50570-G0i200809-200810

JADE GREEN ME.,6V0

main87910-50570-J0i200704-200809

DK.BLUE MC. CC.,8U0

main87910-50571-A2i200810-200911

WHITE PEARL CS.,077

main87910-50571-B0i200810-200911

PREMIUM SILVER,1F2

main87910-50571-B1i200810-200911

DK.GRAY MC.,1G0

main87910-50571-B2i200810-200911

FROSTY PEARL MC.,1G5

main87910-50571-C0i200810-200911

BLACK,212

main87910-50571-C1i200810-200911

BLACK OPAL MC.,214

main87910-50571-D1i200810-200911

DK.RED MC.CS.,3R7

main87910-50571-E0i200810-200911

BEIGE ME.,4T1

main87910-50571-E1i200810-200911

SABLE M.M.,4T5

main87910-50571-G0i200810-200911

JADE GREEN ME.,6V0

main87910-50571-J0i200810-200911

DK.BLUE MC. CC.,8U0

main87910-50581-A1i200704-200707

BLUISH PEARL CS.,074

main87910-50581-A2i200704-200809

WHITE PEARL CS.,077

main87910-50581-B0i200809-200810

PREMIUM SILVER,1F2

main87910-50581-B1i200704-200809

DK.GRAY MC.,1G0

main87910-50581-B2i200809-200810

FROSTY PEARL MC.,1G5

main87910-50581-C0i200704-200809

BLACK,212

main87910-50581-C1i200704-200809

BLACK OPAL MC.,214

main87910-50581-D1i200704-200809

DK.RED MC.CS.,3R7

main87910-50581-E0i200704-200809

BEIGE ME.,4T1

main87910-50581-E1i200809-200810

SABLE M.M.,4T5

main87910-50581-G0i200704-200809

JADE GREEN ME.,6V0

main87910-50581-J0i200704-200809

DK.BLUE MC. CC.,8U0

main87910-50582-A2i200810-200911

WHITE PEARL CS.,077

main87910-50582-B0i200810-200911

PREMIUM SILVER,1F2

main87910-50582-B1i200810-200911

DK.GRAY MC.,1G0

main87910-50582-B2i200810-200911

FROSTY PEARL MC.,1G5

main87910-50582-C0i200810-200911

BLACK,212

main87910-50582-C1i200810-200911

BLACK OPAL MC.,214

main87910-50582-D1i200810-200911

DK.RED MC.CS.,3R7

main87910-50582-E0i200810-200911

BEIGE ME.,4T1

main87910-50582-E1i200810-200911

SABLE M.M.,4T5

main87910-50582-G0i200810-200911

JADE GREEN ME.,6V0

main87910-50582-J0i200810-200911

DK.BLUE MC. CC.,8U0

main87910-50630-A0i200911-201209

WHITE PEARL CS.,077

main87910-50630-B0i200911-201209

PREMIUM SILVER,1F2

main87910-50630-B1i200911-201109

DK.GRAY MC.,1G0

main87910-50630-B3i201109-201209

MERCURY GRAY MC.,1H9

main87910-50630-C0i200911-201209

BLACK,212

main87910-50630-C1i200911-201209

BLACK OPAL MC.,214

main87910-50630-C2i201009-201209

STARLIGHT BLACK GF.,217

main87910-50630-D0i200911-201209

RED MC.CS.,3R1

main87910-50630-E0i200911-201009

SABLE M.M.,4T5

main87910-50630-E1i200911-201209

SLEEK ECRU ME.,4U7

main87910-50630-G0i200911-201209

DEEP PERIDOT MC.,6V6

main87910-50630-J0i200911-201209

LAPIS LAZULI MC.,8V3

main87910-50630-J1i200911-201209

SHADOW SAPPHIRE ME.,8V4

main87910-50650-A0i200911-201209

WHITE PEARL CS.,077

main87910-50650-B0i200911-201209

PREMIUM SILVER,1F2

main87910-50650-B1i200911-201109

DK.GRAY MC.,1G0

main87910-50650-B3i201109-201209

MERCURY GRAY MC.,1H9

main87910-50650-C0i200911-201209

BLACK,212

main87910-50650-C1i200911-201209

BLACK OPAL MC.,214

main87910-50650-C2i201009-201209

STARLIGHT BLACK GF.,217

main87910-50650-D0i200911-201209

RED MC.CS.,3R1

main87910-50650-E0i200911-201009

SABLE M.M.,4T5

main87910-50650-E1i200911-201209

SLEEK ECRU ME.,4U7

main87910-50650-G0i200911-201209

DEEP PERIDOT MC.,6V6

main87910-50650-J0i200911-201209

LAPIS LAZULI MC.,8V3

main87910-50650-J1i200911-201209

SHADOW SAPPHIRE ME.,8V4

main87910-50660-A0i200911-201209

WHITE PEARL CS.,077

main87910-50660-B0i200911-201209

PREMIUM SILVER,1F2

main87910-50660-B1i200911-201109

DK.GRAY MC.,1G0

main87910-50660-B3i201109-201209

MERCURY GRAY MC.,1H9

main87910-50660-C0i200911-201209

BLACK,212

main87910-50660-C1i200911-201209

BLACK OPAL MC.,214

main87910-50660-C2i201009-201209

STARLIGHT BLACK GF.,217

main87910-50660-D0i200911-201209

RED MC.CS.,3R1

main87910-50660-E0i200911-201009

SABLE M.M.,4T5

main87910-50660-E1i200911-201209

SLEEK ECRU ME.,4U7

main87910-50660-G0i200911-201209

DEEP PERIDOT MC.,6V6

main87910-50660-J0i200911-201209

LAPIS LAZULI MC.,8V3

main87910-50660-J1i200911-201209

SHADOW SAPPHIRE ME.,8V4

main87910-50670-A0i200911-201209

RUSSIA SPEC,WHITE PEARL CS.,077

main87910-50670-B0i200911-201209

RUSSIA SPEC,PREMIUM SILVER,1F2

main87910-50670-B1i200911-201109

RUSSIA SPEC,DK.GRAY MC.,1G0

main87910-50670-B3i201109-201209

RUSSIA SPEC,MERCURY GRAY MC.,1H9

main87910-50670-C0i200911-201209

RUSSIA SPEC,BLACK,212

main87910-50670-C1i200911-201209

RUSSIA SPEC,BLACK OPAL MC.,214

main87910-50670-C2i201009-201209

RUSSIA SPEC,STARLIGHT BLACK GF.,217

main87910-50670-D0i200911-201209

RUSSIA SPEC,RED MC.CS.,3R1

main87910-50670-E0i200911-201009

RUSSIA SPEC,SABLE M.M.,4T5

main87910-50670-E1i200911-201209

RUSSIA SPEC,SLEEK ECRU ME.,4U7

main87910-50670-G0i200911-201209

RUSSIA SPEC,DEEP PERIDOT MC.,6V6

main87910-50670-J0i200911-201209

RUSSIA SPEC,LAPIS LAZULI MC.,8V3

main87910-50670-J1i200911-201209

RUSSIA SPEC,SHADOW SAPPHIRE ME.,8V4

87931OUTER MIRROR, RH

main87931-50570i200809-200911

main87931-50580i200809-200911

main87931-50630i200911

main87931-50650i200911

main87931-50660i200911

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-50530-A1i200704-200707

BLUISH PEARL CS.,074

main87940-50530-A2i200704-200809

WHITE PEARL CS.,077

main87940-50530-B0i200809-200810

PREMIUM SILVER,1F2

main87940-50530-B1i200809-200810

DK.GRAY MC.,1G0

main87940-50530-B2i200709-200809

FROSTY PEARL MC.,1G5

main87940-50530-C0i200809-200810

BLACK,212

main87940-50530-C1i200704-200809

BLACK OPAL MC.,214

main87940-50530-D1i200704-200809

DK.RED MC.CS.,3R7

main87940-50530-E0i200809-200810

BEIGE ME.,4T1

main87940-50530-E1i200704-200809

SABLE M.M.,4T5

main87940-50530-G0i200704-200809

JADE GREEN ME.,6V0

main87940-50530-J0i200809-200810

DK.BLUE MC. CC.,8U0

main87940-50531-A2i200810-200911

WHITE PEARL CS.,077

main87940-50531-B0i200810-200911

PREMIUM SILVER,1F2

main87940-50531-B1i200810-200911

DK.GRAY MC.,1G0

main87940-50531-B2i200810-200911

FROSTY PEARL MC.,1G5

main87940-50531-C0i200810-200911

BLACK,212

main87940-50531-C1i200810-200911

BLACK OPAL MC.,214

main87940-50531-D1i200810-200911

DK.RED MC.CS.,3R7

main87940-50531-E0i200810-200911

BEIGE ME.,4T1

main87940-50531-E1i200810-200911

SABLE M.M.,4T5

main87940-50531-G0i200810-200911

JADE GREEN ME.,6V0

main87940-50531-J0i200810-200911

DK.BLUE MC. CC.,8U0

main87940-50541-A1i200704-200707

BLUISH PEARL CS.,074

main87940-50541-A2i200809-200810

WHITE PEARL CS.,077

main87940-50541-B0i200704-200809

PREMIUM SILVER,1F2

main87940-50541-B1i200809-200810

DK.GRAY MC.,1G0

main87940-50541-B2i200709-200809

FROSTY PEARL MC.,1G5

main87940-50541-C0i200704-200809

BLACK,212

main87940-50541-C1i200809-200810

BLACK OPAL MC.,214

main87940-50541-D1i200809-200810

DK.RED MC.CS.,3R7

main87940-50541-E0i200809-200810

BEIGE ME.,4T1

main87940-50541-E1i200704-200809

SABLE M.M.,4T5

main87940-50541-G0i200809-200810

JADE GREEN ME.,6V0

main87940-50541-J0i200704-200809

DK.BLUE MC. CC.,8U0

main87940-50542-A2i200810-200911

WHITE PEARL CS.,077

main87940-50542-B0i200810-200911

PREMIUM SILVER,1F2

main87940-50542-B1i200810-200911

DK.GRAY MC.,1G0

main87940-50542-B2i200810-200911

FROSTY PEARL MC.,1G5

main87940-50542-C0i200810-200911

BLACK,212

main87940-50542-C1i200810-200911

BLACK OPAL MC.,214

main87940-50542-D1i200810-200911

DK.RED MC.CS.,3R7

main87940-50542-E0i200810-200911

BEIGE ME.,4T1

main87940-50542-E1i200810-200911

SABLE M.M.,4T5

main87940-50542-G0i200810-200911

JADE GREEN ME.,6V0

main87940-50542-J0i200810-200911

DK.BLUE MC. CC.,8U0

main87940-50590-A0i200911-201209

WHITE PEARL CS.,077

main87940-50590-B0i200911-201209

PREMIUM SILVER,1F2

main87940-50590-B1i200911-201109

DK.GRAY MC.,1G0

main87940-50590-B3i201109-201209

MERCURY GRAY MC.,1H9

main87940-50590-C0i200911-201209

BLACK,212

main87940-50590-C1i200911-201209

BLACK OPAL MC.,214

main87940-50590-C2i201009-201209

STARLIGHT BLACK GF.,217

main87940-50590-D0i200911-201209

RED MC.CS.,3R1

main87940-50590-E0i200911-201009

SABLE M.M.,4T5

main87940-50590-E1i200911-201209

SLEEK ECRU ME.,4U7

main87940-50590-G0i200911-201209

DEEP PERIDOT MC.,6V6

main87940-50590-J0i200911-201209

LAPIS LAZULI MC.,8V3

main87940-50590-J1i200911-201209

SHADOW SAPPHIRE ME.,8V4

main87940-50610-A0i200911-201209

WHITE PEARL CS.,077

main87940-50610-B0i200911-201209

PREMIUM SILVER,1F2

main87940-50610-B1i200911-201109

DK.GRAY MC.,1G0

main87940-50610-B3i201109-201209

MERCURY GRAY MC.,1H9

main87940-50610-C0i200911-201209

BLACK,212

main87940-50610-C1i200911-201209

BLACK OPAL MC.,214

main87940-50610-C2i201009-201209

STARLIGHT BLACK GF.,217

main87940-50610-D0i200911-201209

RED MC.CS.,3R1

main87940-50610-E0i200911-201009

SABLE M.M.,4T5

main87940-50610-E1i200911-201209

SLEEK ECRU ME.,4U7

main87940-50610-G0i200911-201209

DEEP PERIDOT MC.,6V6

main87940-50610-J0i200911-201209

LAPIS LAZULI MC.,8V3

main87940-50610-J1i200911-201209

SHADOW SAPPHIRE ME.,8V4

main87940-50620-A0i200911-201209

WHITE PEARL CS.,077

main87940-50620-B0i200911-201209

PREMIUM SILVER,1F2

main87940-50620-B1i200911-201109

DK.GRAY MC.,1G0

main87940-50620-B3i201109-201209

MERCURY GRAY MC.,1H9

main87940-50620-C0i200911-201209

BLACK,212

main87940-50620-C1i200911-201209

BLACK OPAL MC.,214

main87940-50620-C2i201009-201209

STARLIGHT BLACK GF.,217

main87940-50620-D0i200911-201209

RED MC.CS.,3R1

main87940-50620-E0i200911-201009

SABLE M.M.,4T5

main87940-50620-E1i200911-201209

SLEEK ECRU ME.,4U7

main87940-50620-G0i200911-201209

DEEP PERIDOT MC.,6V6

main87940-50620-J0i200911-201209

LAPIS LAZULI MC.,8V3

main87940-50620-J1i200911-201209

SHADOW SAPPHIRE ME.,8V4

main87940-50630-A0i200911-201209

RUSSIA SPEC,WHITE PEARL CS.,077

main87940-50630-B0i200911-201209

RUSSIA SPEC,PREMIUM SILVER,1F2

main87940-50630-B1i200911-201109

RUSSIA SPEC,DK.GRAY MC.,1G0

main87940-50630-B3i201109-201209

RUSSIA SPEC,MERCURY GRAY MC.,1H9

main87940-50630-C0i200911-201209

RUSSIA SPEC,BLACK,212

main87940-50630-C1i200911-201209

RUSSIA SPEC,BLACK OPAL MC.,214

main87940-50630-C2i201009-201209

RUSSIA SPEC,STARLIGHT BLACK GF.,217

main87940-50630-D0i200911-201209

RUSSIA SPEC,RED MC.CS.,3R1

main87940-50630-E0i200911-201009

RUSSIA SPEC,SABLE M.M.,4T5

main87940-50630-E1i200911-201209

RUSSIA SPEC,SLEEK ECRU ME.,4U7

main87940-50630-G0i200911-201209

RUSSIA SPEC,DEEP PERIDOT MC.,6V6

main87940-50630-J0i200911-201209

RUSSIA SPEC,LAPIS LAZULI MC.,8V3

main87940-50630-J1i200911-201209

RUSSIA SPEC,SHADOW SAPPHIRE ME.,8V4

87961MIRROR OUTER, LH

main87961-50530i200809-200911

main87961-50540i200809-200911

main87961-50590i200911

main87961-50610i200911

main87961-50620i200911

9017906146

main90179-06146

7 parts on this diagram · 2 diagrams in section
