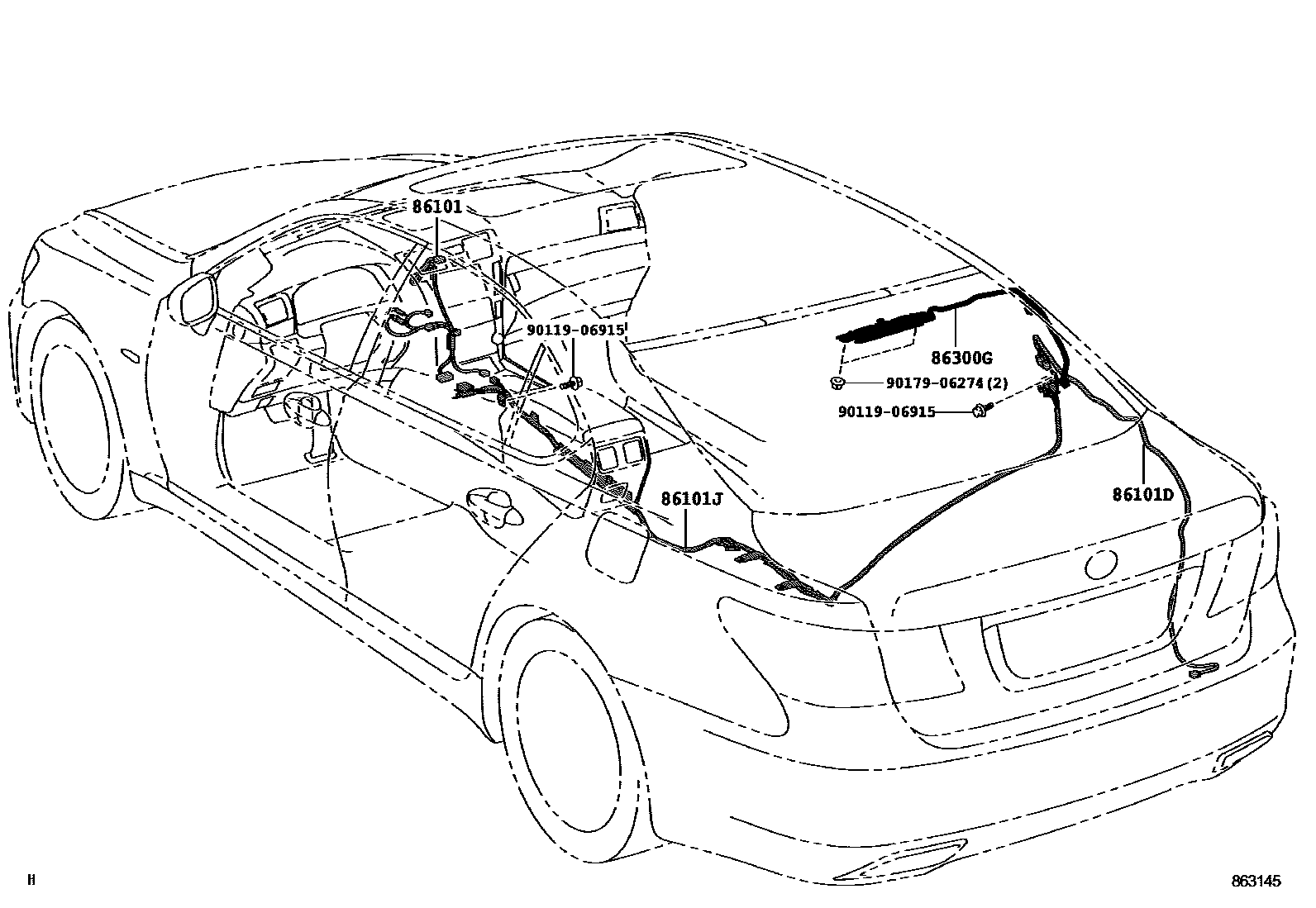

ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-50490iUVF4#200704-200911

main86101-50860iUVF4#200911-201209

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-50820iUVF46..LHD..EUR200911

CHINA(EXCEPT BEIJING) SPEC&MAYDAY SYSTEM-WITH(G-BOOK)

main86101-50820iUVF46..LHD..EUR200911

BEIJING SPEC&MAYDAY SYSTEM-WITH(G-BOOK)

main86251-50010iUVF4#200704-200911

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-50550iUVF45..LHD200704-200911

main86101-50570iUVF46..LHD200704-200911

main86101-50590iUVF45..RHD200704-200911

main86101-50610iUVF46..RHD200704-200911

main86101-50A00iUVF45..LHD200911

main86101-50A10iUVF46..LHD200911

main86101-50A20iUVF45..RHD200911

main86101-50A30iUVF46..RHD200911

main86101-50A60iUVF46..LHD..EUR200911

BEIJING SPEC

main86101-50A60iUVF46..LHD..EUR200911

CHINA(EXCEPT BEIJING) SPEC

86300GANTENNA ASSY, TELEVISION AMPLIFIER

main86300-50170iUVF4#200704-200911

main86300-50310iUVF4#200911-201209

9011906915

main90119-06915

9017906274

main90179-06274

6 parts on this diagram · 3 diagrams in section
