HEV CONTROL COMPUTER

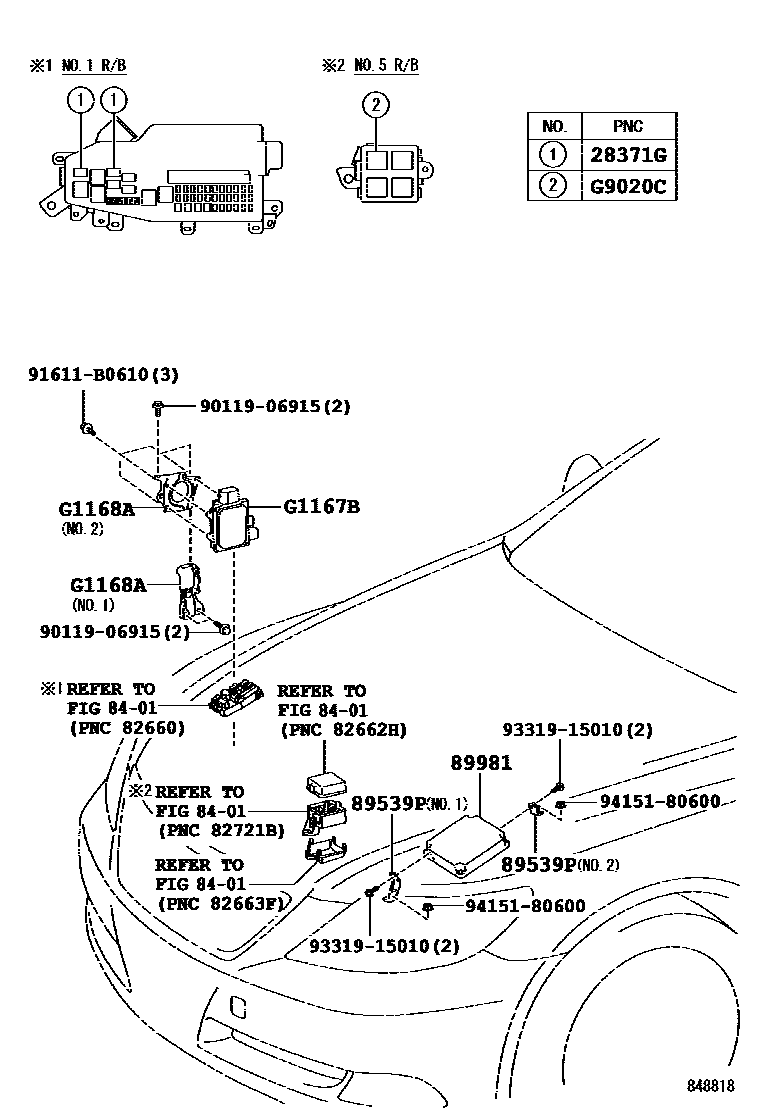

Parts diagram

28371GRELAY, IGNITION CONTACT

main90987-02027×2i200704-200809

8401

89539PBRACKET, COMPUTER

main89539-50040i200911

NO.1

main89539-50050i200809-200911

NO.2

89981COMPUTER, HYBRID VEHICLE CONTROL

main89981-50020i200704-200709

main89981-50021i200710-200809

main89981-50060i200809-200911

main89981-50100i200911

G1167BCONTROLLER, OIL PUMP MOTOR

mainG116730020i200704-200809

mainG116730021i201203

G1168ABRACKET, OIL PUMP MOTOR CONTROLLER

mainG116850010i200704-200809

NO.1

mainG116850020i200809-200911

NO.2

G9020CRELAY, OIL PUMP

main90987-02025i200704-200809

9011906915

main90119-06915

91611B0610

main91611-B0610

9331915010

main93319-15010

9415180600

main94151-80600

11 parts on this diagram · 1 diagram in section
