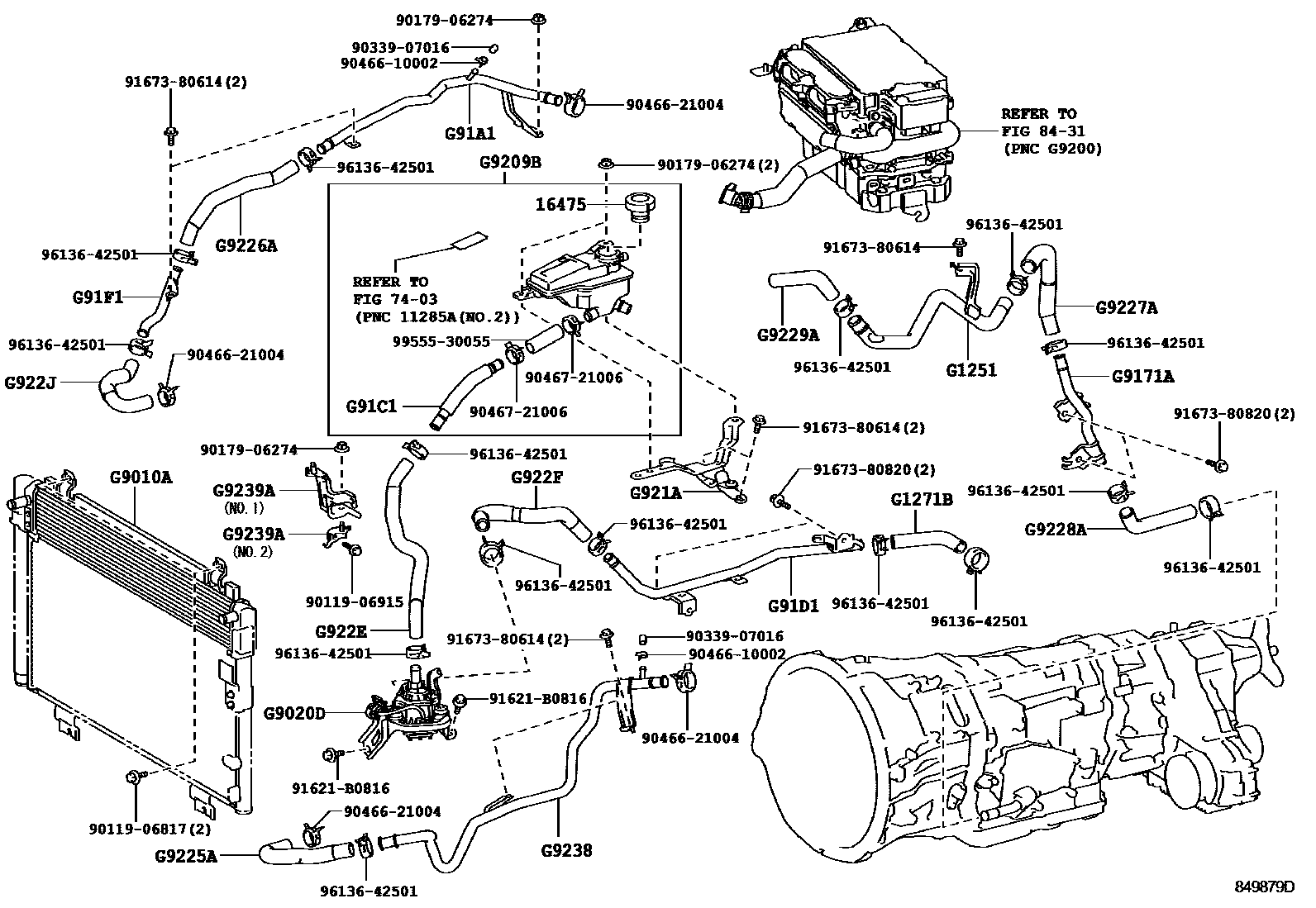

INVERTER COOLING
7403
8431
G1251PIPE, MOTOR COOLING, NO.1
G1271BHOSE, MOTOR COOLING, NO.1
G9010ARADIATOR ASSY
subG9010-50011
G9020DPUMP ASSY, WATER W/MOTOR & BRACKET
G9171APIPE, INVERTER COOLING, NO.1
G91A1PIPE, INVERTER COOLING, INLET
G91C1PIPE, HV WATER PUMP INLET
G91D1PIPE, HV WATER PUMP OUTLET, NO.1
G91F1PIPE, HV RADIATOR OUTLET
G9209BTANK SUB-ASSY, INVERTER RESERVE
subG9209-50011
G921ABRACKET, INVERTER RESERVE TANK, NO.1
G9225AHOSE, INVERTER COOLING, NO.7
G9226AHOSE, INVERTER COOLING, NO.2
G9228AHOSE, INVERTER COOLING, NO.4
G9229AHOSE, INVERTER COOLING, NO.5
G922EHOSE, HYBRID WATER PUMP INLET
G922FHOSE, HYBRID WATER PUMP OUTLET, NO.1
G922JHOSE, HYBRID RADIATOR OUTLET
G9238PIPE, INVERTER COOLING
G9239ABRACKET, INVERTER COOLING PIPE
NO.1
NO.2
9011906817
main90119-06817
9011906915
main90119-06915
9017906274
main90179-06274
9033907016
main90339-07016
9046610002
main90466-10002
9046621004
main90466-21004
9046721006
main90467-21006
91621B0816
main91621-B0816
9167380614
main91673-80614
9167380820
main91673-80820
9613642501
main96136-42501
9955530055
main99555-30055
36 parts on this diagram · 4 diagrams in section
