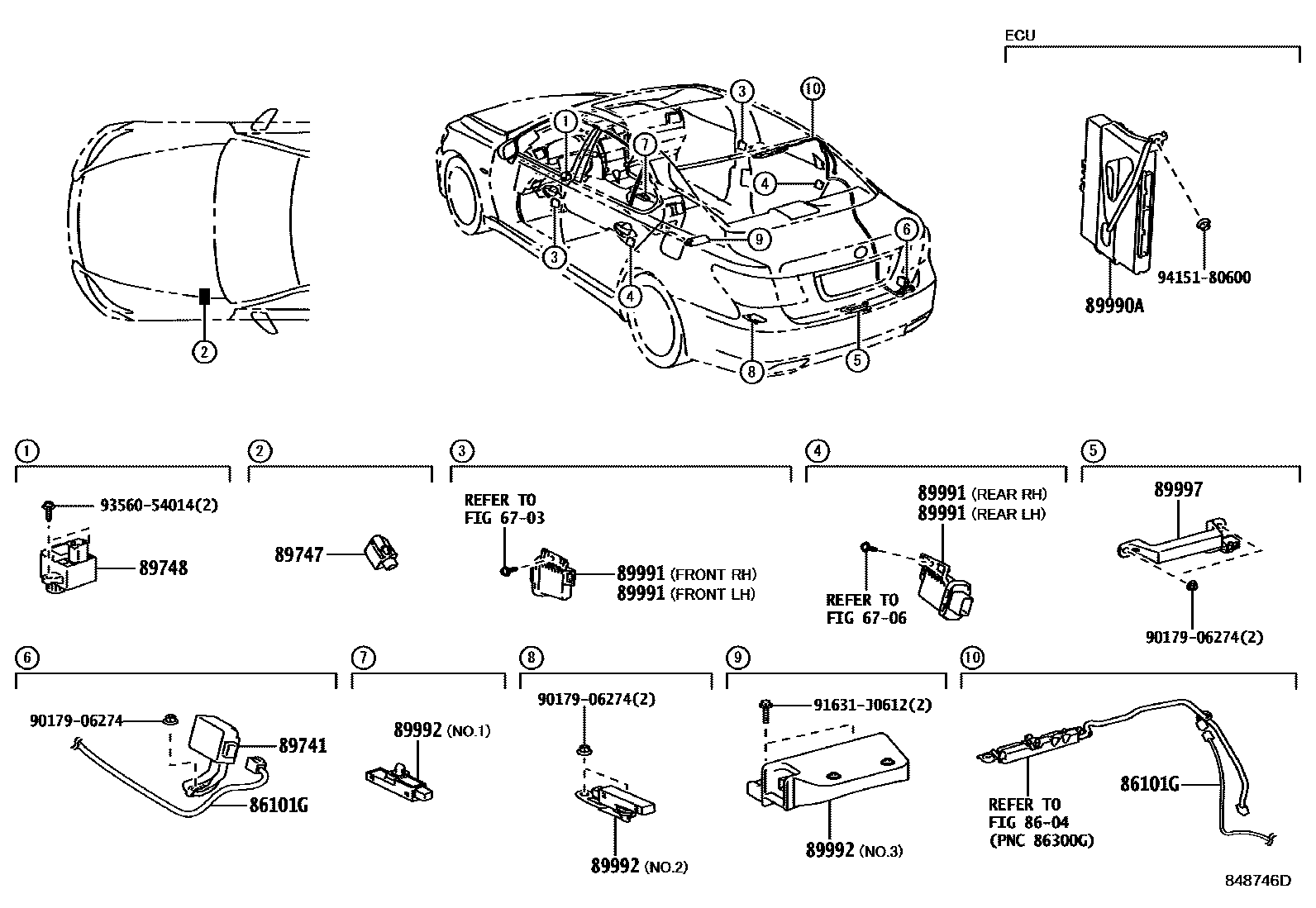

WIRELESS DOOR LOCK

0001 1 0002 1

6703

6706

8604

86101GCORD SUB-ASSY, ANTENNA

main86101-50620iUVF4#200704-201209

89741RECEIVER, DOOR CONTROL

main89740-50090iUVF4#200704-200705

sub89740-50091

main89740-50091iUVF4#200706-200911

main89740-50190iUVF4#200911-201108

sub89740-50191

main89740-50191iUVF4#201109

sub89740-50192

89747BUZZER, WIRELESS DOOR LOCK

main89747-52010iUVF4#200704-200911

89748CONTROLLER, WIRELESS DOOR LOCK BUZZER

main89748-50010iUVF4#200704-201209

89990ACOMPUTER ASSY, SMART KEY

main89990-50021iUVF4#..RHD200704-200709

sub89990-50022

main89990-50022iUVF4#..RHD200710-200809

sub89990-50023

main89990-50041iUVF4#..LHD200704-200809

sub89990-50042

main89990-50100iUVF4#..RHD200809-200911

sub89990-50101

main89990-50120iUVF4#..LHD200809-200911

sub89990-50121

main89990-50130iUVF4#..RHD200911-201008

sub89990-50131

main89990-50131iUVF4#..RHD201009-201106

sub89990-50132

main89990-50132iUVF4#..RHD201107

sub89990-50133

main89990-50150iUVF4#..LHD..EUR200911-201008

sub89990-50151

main89990-50151iUVF4#..LHD..EUR201009-201106

sub89990-50152

main89990-50152iUVF4#..LHD..EUR201107-201109

sub89990-50153

main89990-50170iUVF46..GCC200911-201008

sub89990-50171

main89990-50171iUVF46..GCC201009

main89990-50190iUVF4#..LHD..EUR201109

sub89990-50191

89991OSCILLATOR, DOOR ELECTRICAL KEY

main89991-33010iUVF4#200704-201209

FRONT-RH,REAR-LH

main89991-33020iUVF4#200704-201209

FRONT-LH,REAR-RH

89992OSCILLATOR, INDOOR ELECTRICAL KEY

main89992-30090iUVF4#200704-200911

NO.1

main89992-50100iUVF4#200704-201111

NO.3

sub89992-50101

main89992-50101iUVF4#201112

NO.3

main89992-50110iUVF4#200809-201102

NO.2

sub89992-50111

main89992-50111iUVF4#201103

NO.2

main89992-53010iUVF4#200704-200809

NO.2

89997ANTENNA, ELECTRICAL KEY

main89997-30070iUVF4#201108-201209

main89997-41010iUVF4#200704-201108

9017906274

main90179-06274

91631J0612

main91631-J0612

9356054014

main93560-54014

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
