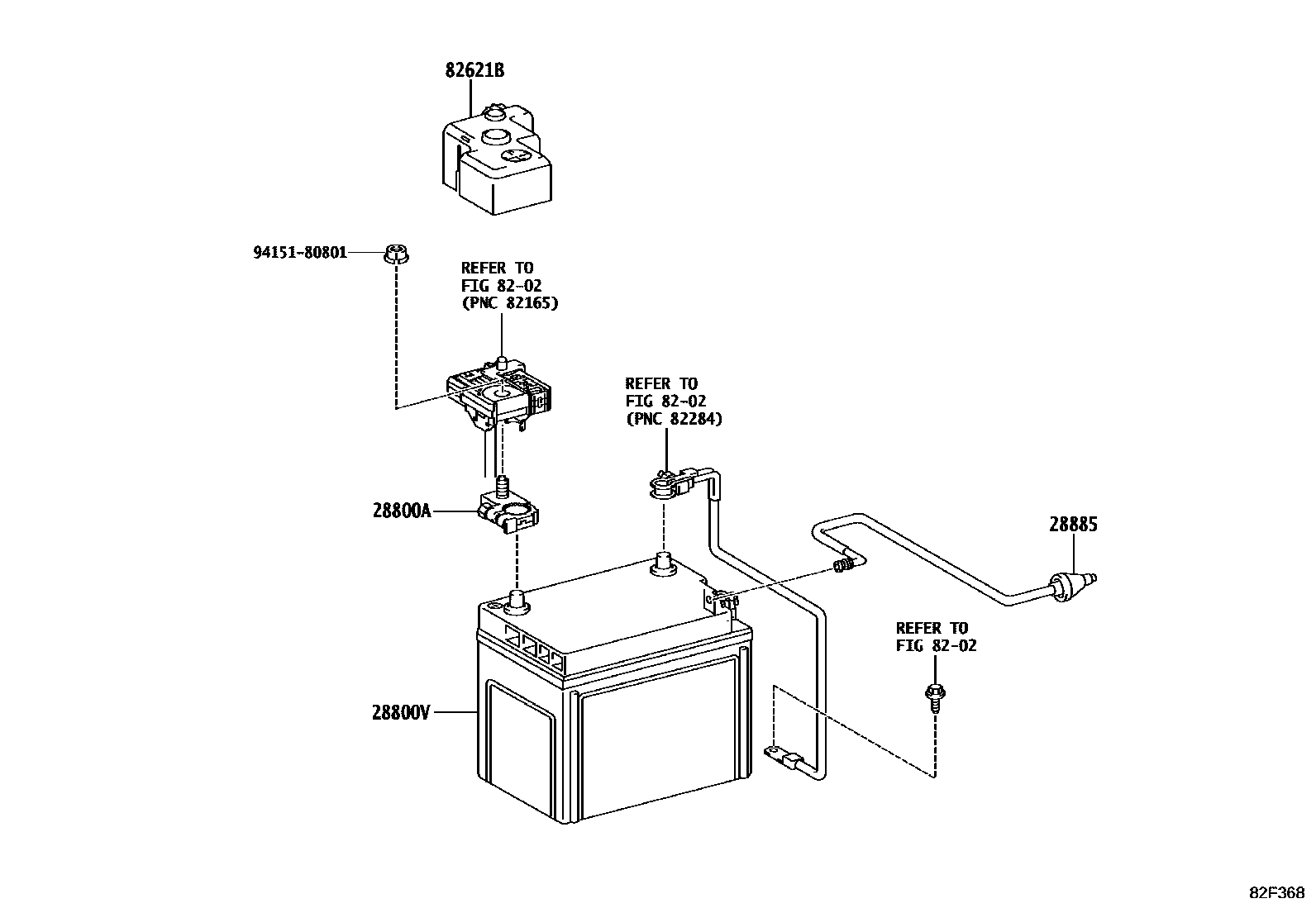

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1HV BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY 0007 1HV BATTERY

28800ATERMINAL, BATTERY POSITIVE

main90982-05065i2URFSE..UVF4#200704-200809

28800VBATTERY, W/TEMPERATURE SENSOR

main28800-38150i2URFSE..UVF4#200704-200809

S75D31L

sub28800-38120

28885HOSE, BATTERY ROOM VENTILATION

main28885-38010i2URFSE..UVF4#200704-200809

8202

82621BCOVER, FUSIBLE LINK

main82621-30010iUVF4#200704-200809

9415180801

main94151-80801

6 parts on this diagram · 7 diagrams in section
