INTERIOR LAMP
5501
6402
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
CHINA(EXCEPT BEIJING) SPEC
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
CHINA(EXCEPT BEIJING) SPEC
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
CHINA(EXCEPT BEIJING) SPEC
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
CHINA(EXCEPT BEIJING) SPEC
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
NEW ZEALAND SPEC&WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER)
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81206ALAMP SUB-ASSY, CONSOLE BOX
WITH(REAR POWER SEAT)&MOON ROOF-WITH,MELLOW WHITE,TRIM01,05,07,08
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,IVORY,TRIM00,02,06
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1#,2#
MELLOW WHITE,TRIM05,07,08
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE&MOON ROOF-WITH,IVORY,TRIM02
WITH(REAR POWER SEAT)&INTERIOR UPGRADE PACKAGE,LT.GRAY,TRIM1#,2#
INTERIOR PACKAGE&W(REAR DISPLAY),IVORY,TRIM00
WITH(REAR POWER SEAT)&INTERIOR PACKAGE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
WITH(REAR POWER SEAT)&W(REAR DISPLAY),LT.GRAY,TRIM1#,2#
WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00
MOON ROOF-WITH&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
WITH (OTTOMAN)&W(REAR DISPLAY),LT.GRAY,TRIM10,12,2#
81230LAMP ASSY, COURTESY
81230ALAMP ASSY, COURTESY, NO.2
81230BBULB(FOR COURTESY LAMP)
12V 5W
81230CBULB(FOR COURTESY LAMP NO.2)
12V 3.8W
81231ALENS, COURTESY LAMP, NO.2
81250CBULB, SPOT LAMP
12V 8W
81251ALENS, SPOT LAMP
WITH(REAR POWER SEAT)
INTERIOR PACKAGE&W(REAR DISPLAY),IVORY,TRIM00
WITH(REAR POWER SEAT)&INTERIOR PACKAGE&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
WITH(REAR POWER SEAT)&W(REAR DISPLAY),LT.GRAY,TRIM1#,2#
W(REAR DISPLAY)
WITH (OTTOMAN)&INTERIOR PACKAGE&MOON ROOF-WITH&W(REAR DISPLAY & REAR DVD PLAYER),IVORY,TRIM00
MOON ROOF-WITH&W(REAR DISPLAY),MELLOW WHITE,TRIM01,05
WITH (OTTOMAN)&W(REAR DISPLAY),LT.GRAY,TRIM10,12,2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
CHINA(EXCEPT BEIJING) SPEC&INTERIOR PACKAGE&MOON ROOF-WITH&WITH(REAR COOLER),IVORY,TRIM00
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02
BEIJING SPEC&WITH(OTTOMAN:5 SEAT)&INTERIOR UPGRADE PACKAGE&PRE-COLLISION SYSTEM-WITH(*MRT & *PB & *PSB),LT.GRAY,TRIM1#,2#
81340ALAMP ASSY, REAR VANITY
MELLOW WHITE,TRIM01,05
MOON ROOF-WITH,IVORY,TRIM00
IVORY,TRIM02
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
81340BBULB (FOR VANITY LAMP)
12V 8W
81340CBULB (FOR REAR VANITY LAMP)
81360TLAMP ASSY, SPOT
IVORY,TRIM00
MELLOW WHITE,TRIM01,05
LT.GRAY,TRIM1#,2#
MELLOW WHITE,TRIM01,05,07,08
IVORY,TRIM02
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
8202
9016840048
main90168-40048
9016840116
main90168-40116
9018904217
main90189-04217

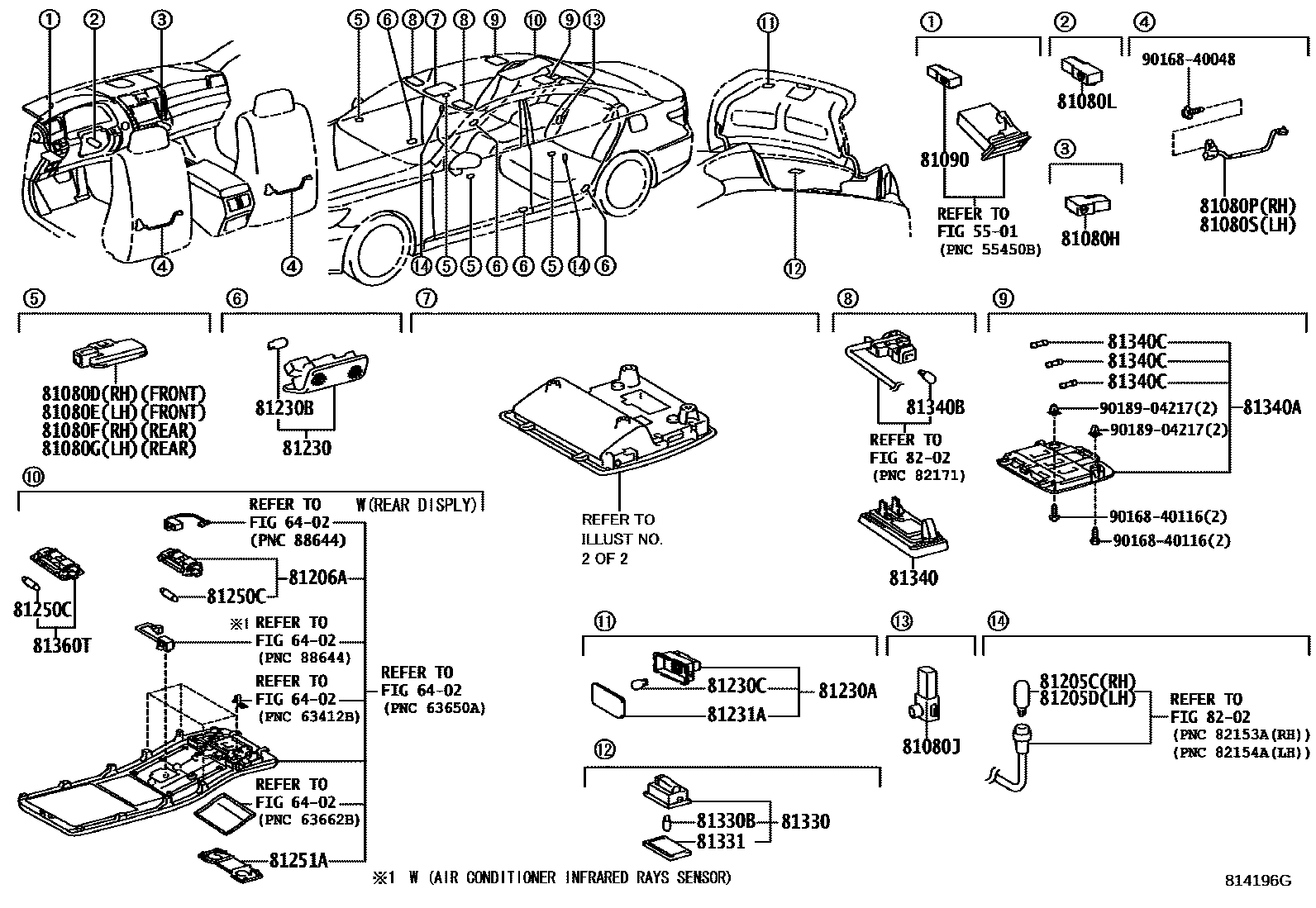

34 parts on this diagram · 5 diagrams in section
