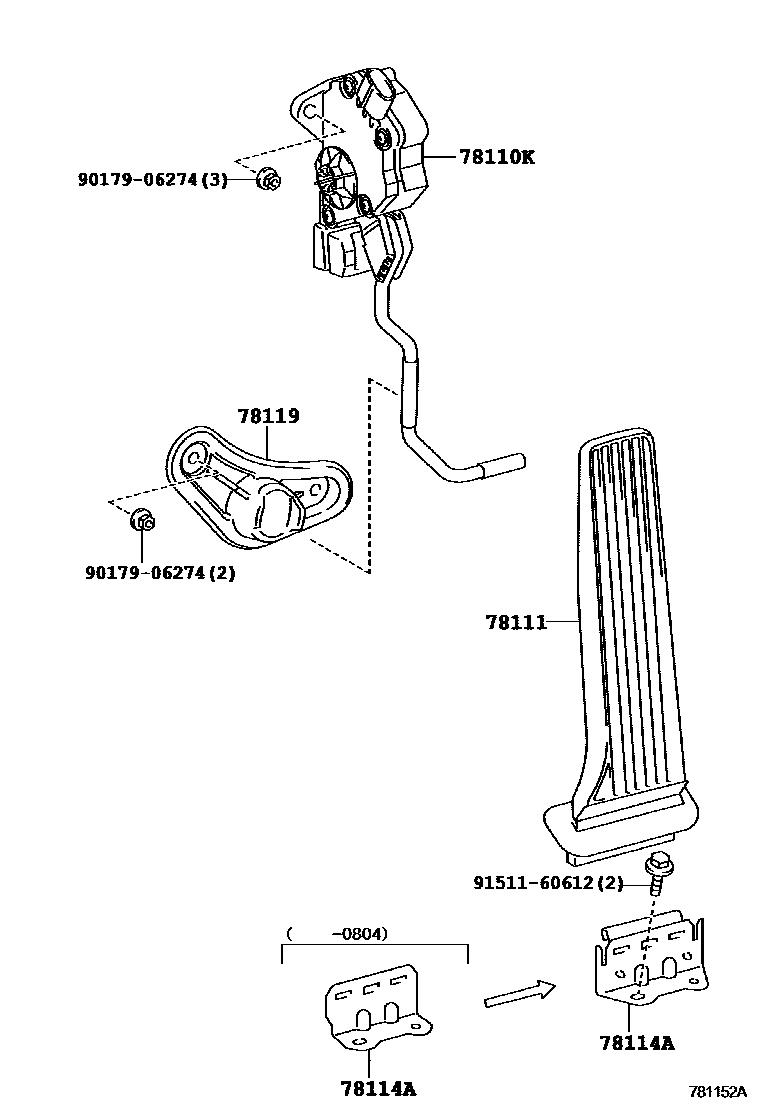

ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-50010iUVF4#..LHD200704-200911

sub78110-50050

main78110-50020iUVF4#..RHD200704-200911

sub78110-50060

78111PEDAL, ACCELERATOR

main78111-30130iUVF4#200704-200911

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main55155-50010iUVF4#..LHD200704-200810

sub78108-50030

main55155-50020iUVF4#..RHD200704-200804

sub78108-50040

main78108-50030iUVF4#..LHD200810-200911

main78108-50040iUVF4#..RHD200804-200911

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-50070iUVF4#..LHD200704-200911

main78119-50080iUVF4#..RHD200704-200911

9017906274

main90179-06274

9151160612

main91511-60612

6 parts on this diagram · 2 diagrams in section
