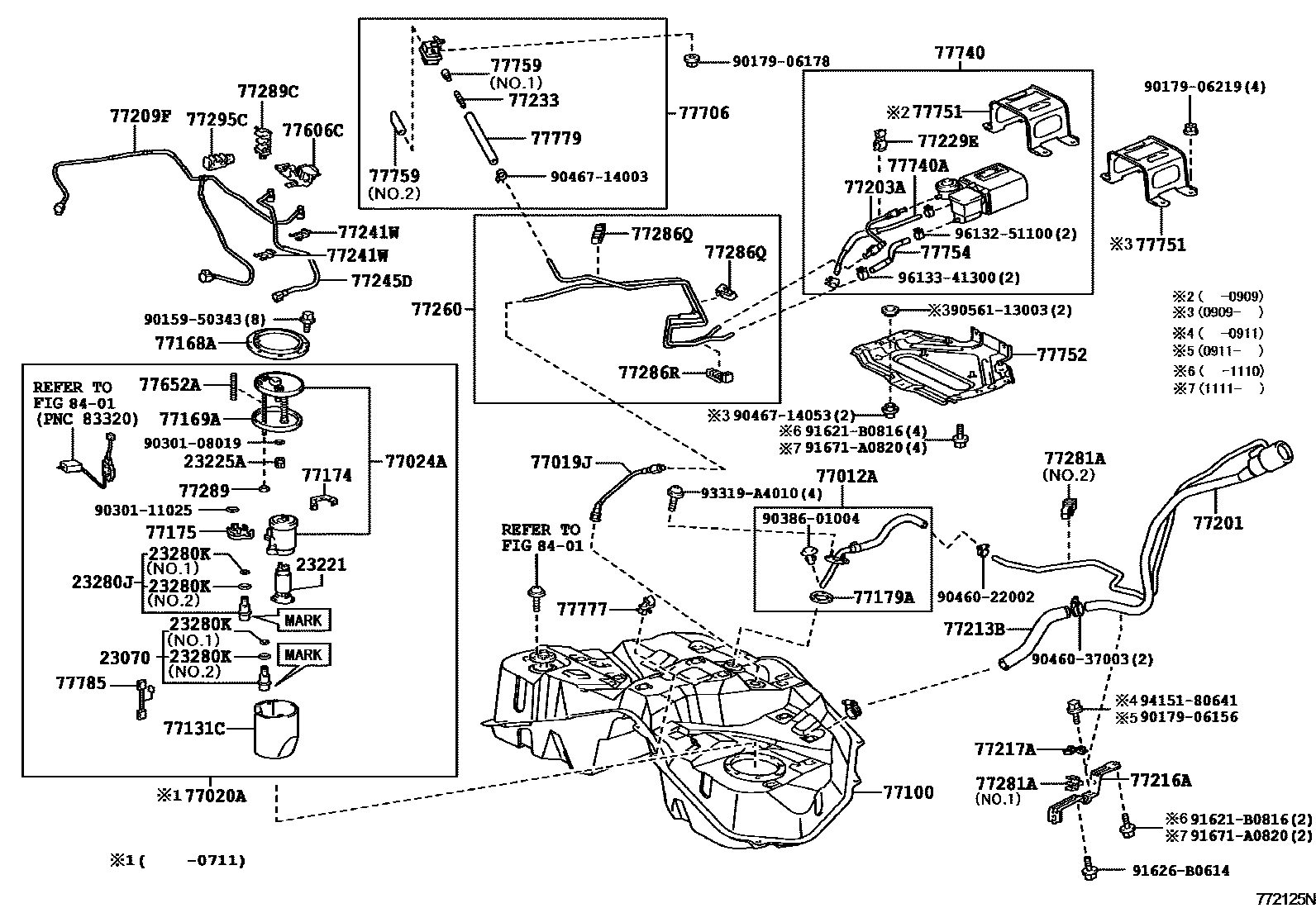

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
MARK 23070-38020
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
MARK 23280-38020
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1
77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
sub77024-50020
sub23070-38020
sub23220-38041
sub23225-23010
sub23280-38020
sub77131-50040
sub77169-52010
sub77174-50010
sub77175-50010
sub77289-52090
sub77652-22090
sub77785-50020
sub83320-50120
sub90301-08019
sub90301-11025
77024APLATE SUB-ASSY, FUEL SUCTION
sub77024-50021
77100TANK ASSY, FUEL
sub77001-50172
77131CSUB-TANK, FUEL, NO.1
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
CHINA(EXCEPT BEIJING) SPEC
BEIJING SPEC
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
sub77216-50041
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
sub77217-50071
77229ECLAMP, BREATHER TUBE
77233JOINT, FUEL HOSE
77245DTUBE, FUEL TANK RETURN VENT
77260HOSE ASSY, FUEL MAIN
77281ACLAMP, FUEL FILLER PIPE
NO.1
NO.2
77286QCLAMP, FUEL TUBE, NO.9
77286RCLAMP, FUEL TUBE, NO.10
77289HOLDER, FUEL TANK PIPE SETTING
77289CCLAMP, FUEL TUBE, NO.4
77295CGROMMET, FUEL TUBE
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606CPROTECTOR, FUEL TANK, NO.2
77652ACUSHION, FUEL TANK, NO.2
77706FILTER SUB-ASSY, CHARCOAL CANISTER
77740CANISTER ASSY, CHARCOAL
77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
77751BRACKET, CHARCOAL CANISTER BASE
77752BRACKET, CHARCOAL CANISTER SUPPORT
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
L=155
77759HOSE, CHARCOAL CANISTER
NO.2
NO.1
77777BRACKET, FUEL TUBE CLAMP
77779TUBE, CHARCOAL CANISTER OUTLET
77785HARNESS, FUEL PUMP
sub77785-50021
8401
9015950343
main90159-50343
9017906156
main90179-06156
9017906178
main90179-06178
9017906219
main90179-06219
9030108019
main90301-08019
9030111025
main90301-11025
9038601004
main90386-01004
9046022002
main90460-22002
9046037003
main90460-37003
9046714003
main90467-14003
9046714053
main90467-14053
9056113003
main90561-13003
91621B0816
main91621-B0816
91626B0614
main91626-B0614
91671A0820
main91671-A0820
93319A4010
main93319-A4010
9415180641
main94151-80641
9613251100
main96132-51100
9613341300
main96133-41300
66 parts on this diagram · 3 diagrams in section
