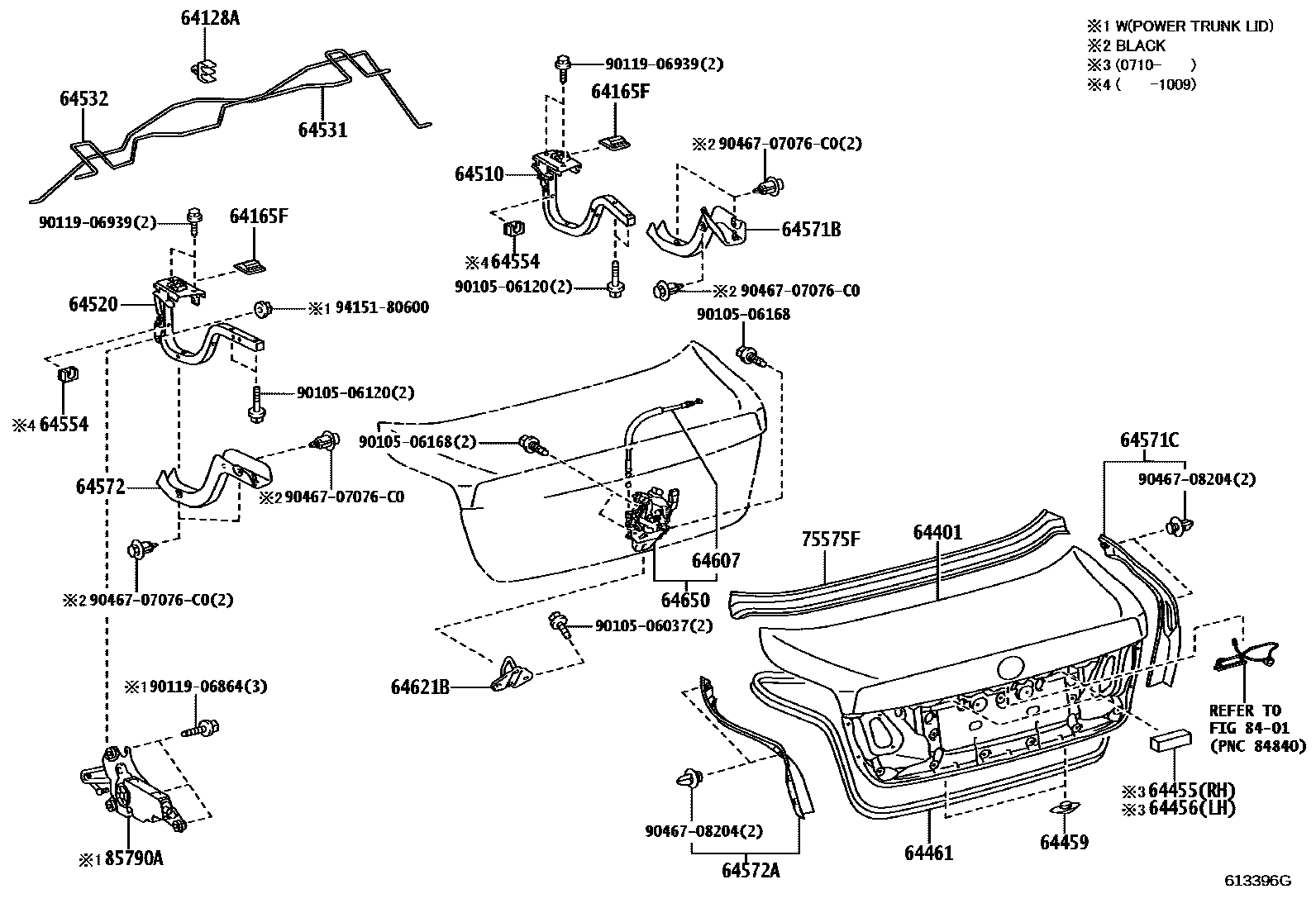

LUGGAGE COMPARTMENT DOOR & LOCK
64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2
64165FCOVER, UPPER BACK PANEL HOLE, NO.1
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
RUSSIA SPEC&BACK MONITOR (REAR TELEVISION CAMERA)-WITHOUT
64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH
64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH
64459CUSHION, LUGGAGE COMPARTMENT DOOR
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64554STOPPER, LUGGAGE DOOR BALANCER
64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH
64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH
64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH
64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
75575FMOULDING, BACK WINDOW, OUTSIDE LOWER
8401
85790AMOTOR ASSY, LUGGAGE CLOSER
AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID)
sub85790-50020
sub85790-50021
9010506037
main90105-06037
9010506120
main90105-06120
9010506168
main90105-06168
9011906864
main90119-06864
9011906939
main90119-06939
9046707076C0
main90467-07076C0
9046708204
main90467-08204
9415180600
main94151-80600
30 parts on this diagram · 1 diagram in section
