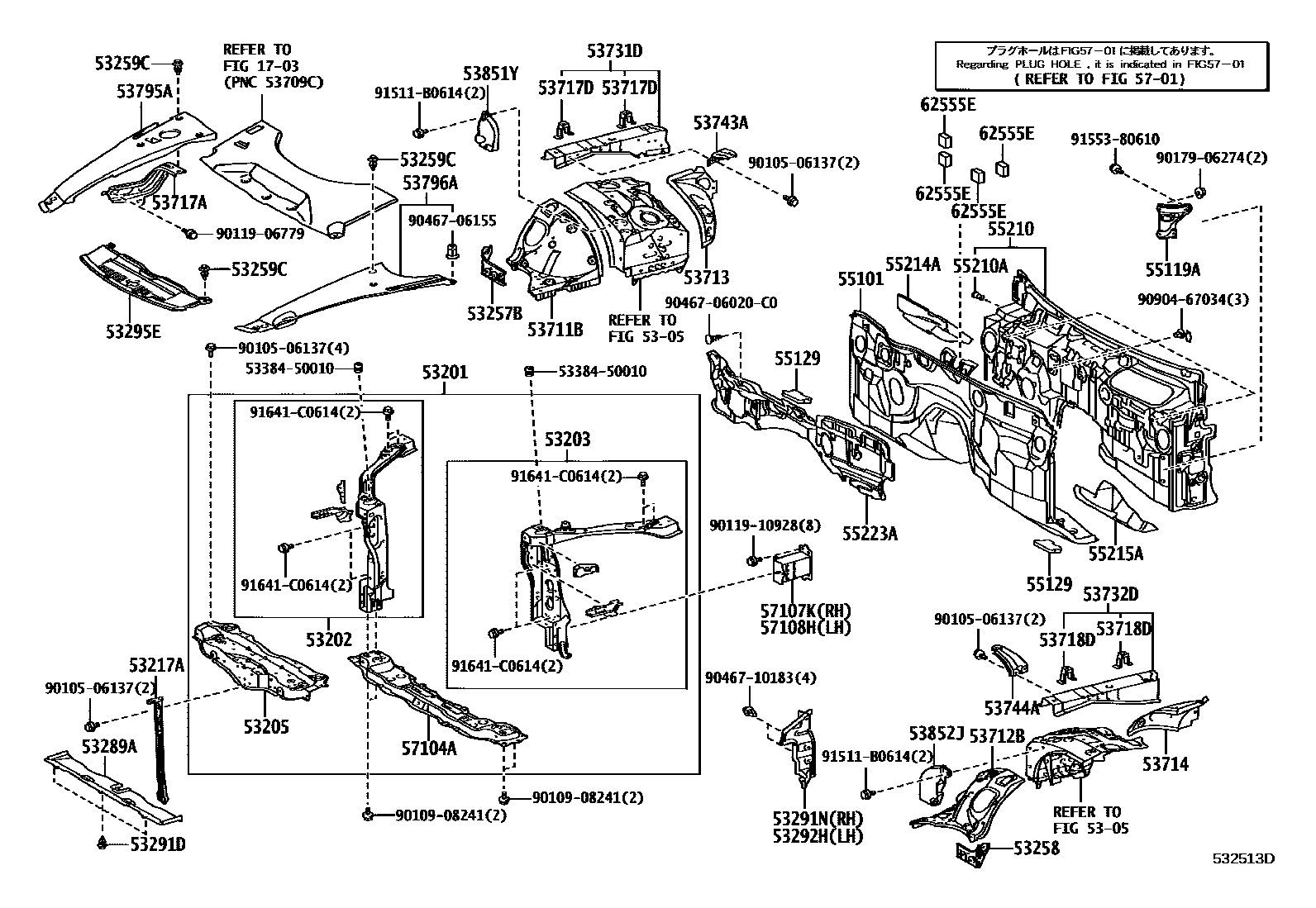

FRONT FENDER APRON & DASH PANEL
5305
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53289ACOVER, RADIATOR SUPPORT OPENING
53291DCLIP, RADIATOR SUPPORT TO FRAME
53291NSEAL, RADIATOR SUPPORT TO FRAME, RH
53292HSEAL, RADIATOR SUPPORT TO FRAME, LH
53295ESEAL, COOL AIR INTAKE DUCT
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713APRON, FENDER SIDE, RH
53714APRON, FENDER SIDE, LH
53717APLATE, FENDER APRON
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53851YPAD, FRONT WHEEL OPENING EXTENSION, NO.1
53852JPAD, FRONT WHEEL OPENING EXTENSION, LH
55101PANEL SUB-ASSY, DASH
55119AEXTENSION, DASH PANEL, LH
55129COVER, DASH PANEL HOLE
RH
LH
55210ACLIP
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH
57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH
62555EPAD, PILLAR, NO.5
5338450010BAR, HOOD SILENCER SUPPORT
9010506137
9010908241
9011906779
9011910928
9017906274
9046706020C0
main90467-06020C0
9046706155
9046710183
9090467034
91511B0614
9155380610
91641C0614
55 parts on this diagram · 2 diagrams in section
