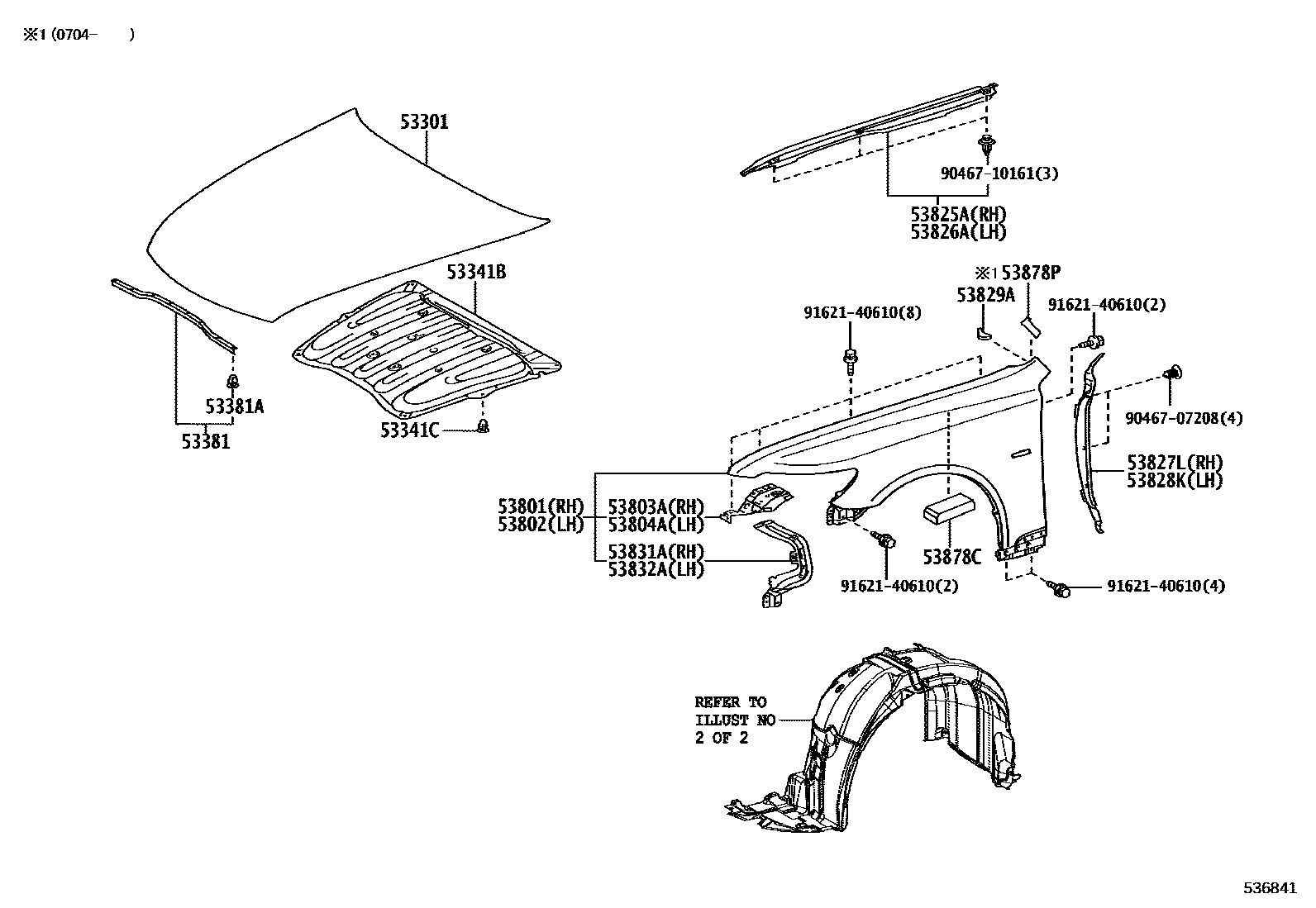

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53803ABRACKET SUB-ASSY, FRONT SIDE PANEL, RH
53804ABRACKET SUB-ASSY, FRONT SIDE PANEL, LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53829APROTECTOR, FRONT FENDER, LOWER
53831APANEL, FRONT FENDER SIDE, UPPER RH
53832APANEL, FRONT FENDER SIDE, UPPER LH
53878CSPACER, FRONT FENDER
53878PSPACER, FRONT FENDER
9046707208
9046710161
9162140610
21 parts on this diagram · 2 diagrams in section
