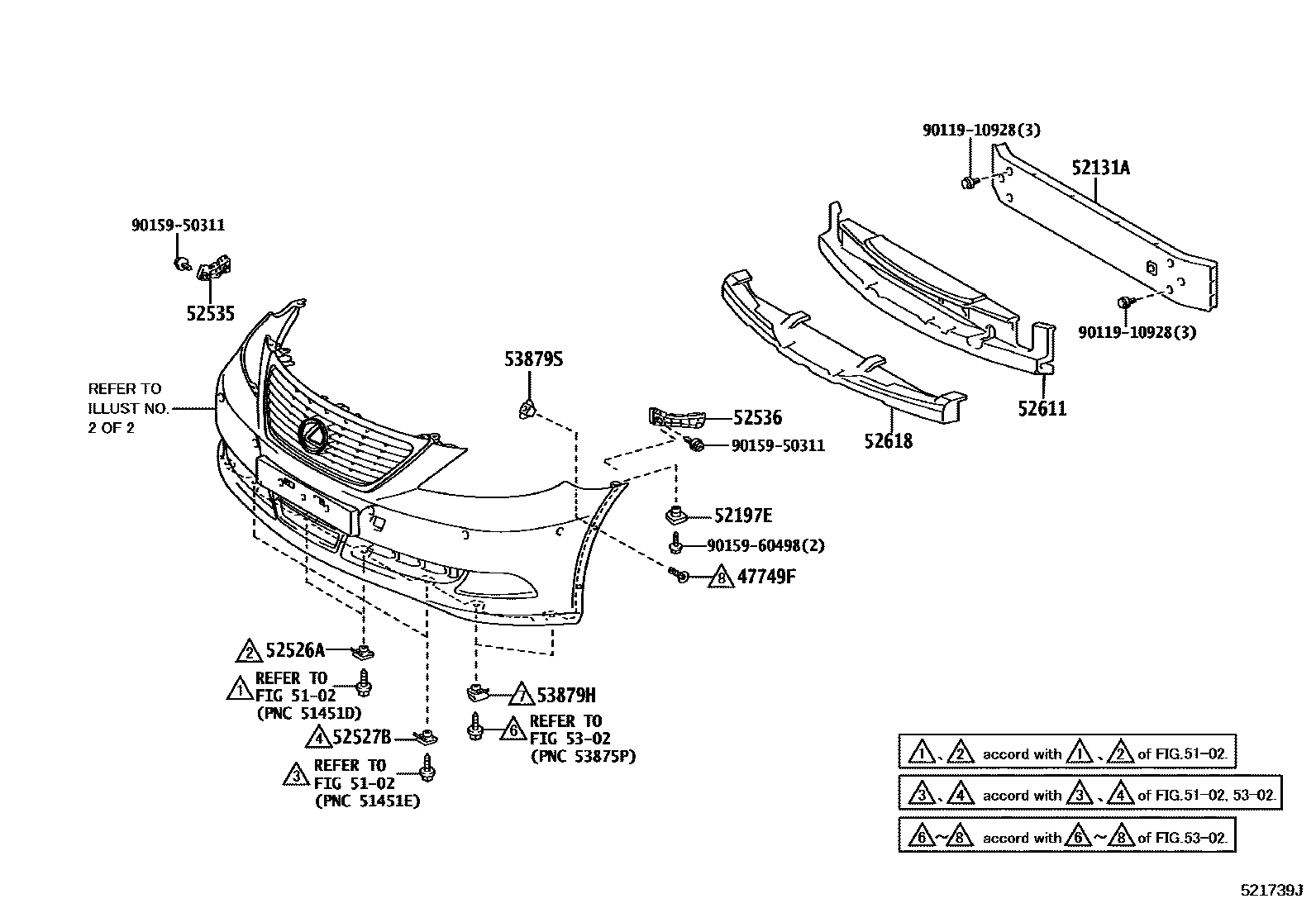

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

47749FCLIP, PIN HOLD

main47749-50090iUVF4#200704-201209

5102

52131AREINFORCEMENT, FRONT BUMPER

main52131-50070iUVF4#200704-200911

main52131-50091iUVF46..GCC200911-201209

sub52131-50092

main52131-50101iUVF4#..EUR200911-201209

sub52131-50102

52197EBRACKET, FRONT BUMPER SEAL

main52197-30040iUVF4#200704-200911

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-53020iUVF4#200911-201209

main90179-05060iUVF4#200704-200911

52527BRETAINER, FRONT BUMPER, LOWER NO.2

main52526-53020iUVF4#200911-201209

main90179-05060iUVF4#200704-200911

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-50070iUVF4#200704-200911

main52535-50080iUVF4#200911

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-50060iUVF4#200704-200911

main52536-50070iUVF4#200911

52611ABSORBER, FRONT BUMPER ENERGY

main52611-50070iUVF4#200704-200911

main52611-50100iUVF46..GCC200911

main52611-50110iUVF4#..EUR200911

52618ABSORBER, FRONT BUMPER, LOWER

main52614-50010iUVF4#200704-200911

main52614-50030iUVF4#200911

5302

53879HRETAINER, FRONT FENDER LINER

main53879-17020iUVF4#200704-201209

53879SRETAINER, FRONT FENDER LINER

main53879-50020iUVF4#200704-201209

9011910928

main90119-10928

9015950311

main90159-50311

9015960498

main90159-60498

16 parts on this diagram · 4 diagrams in section
