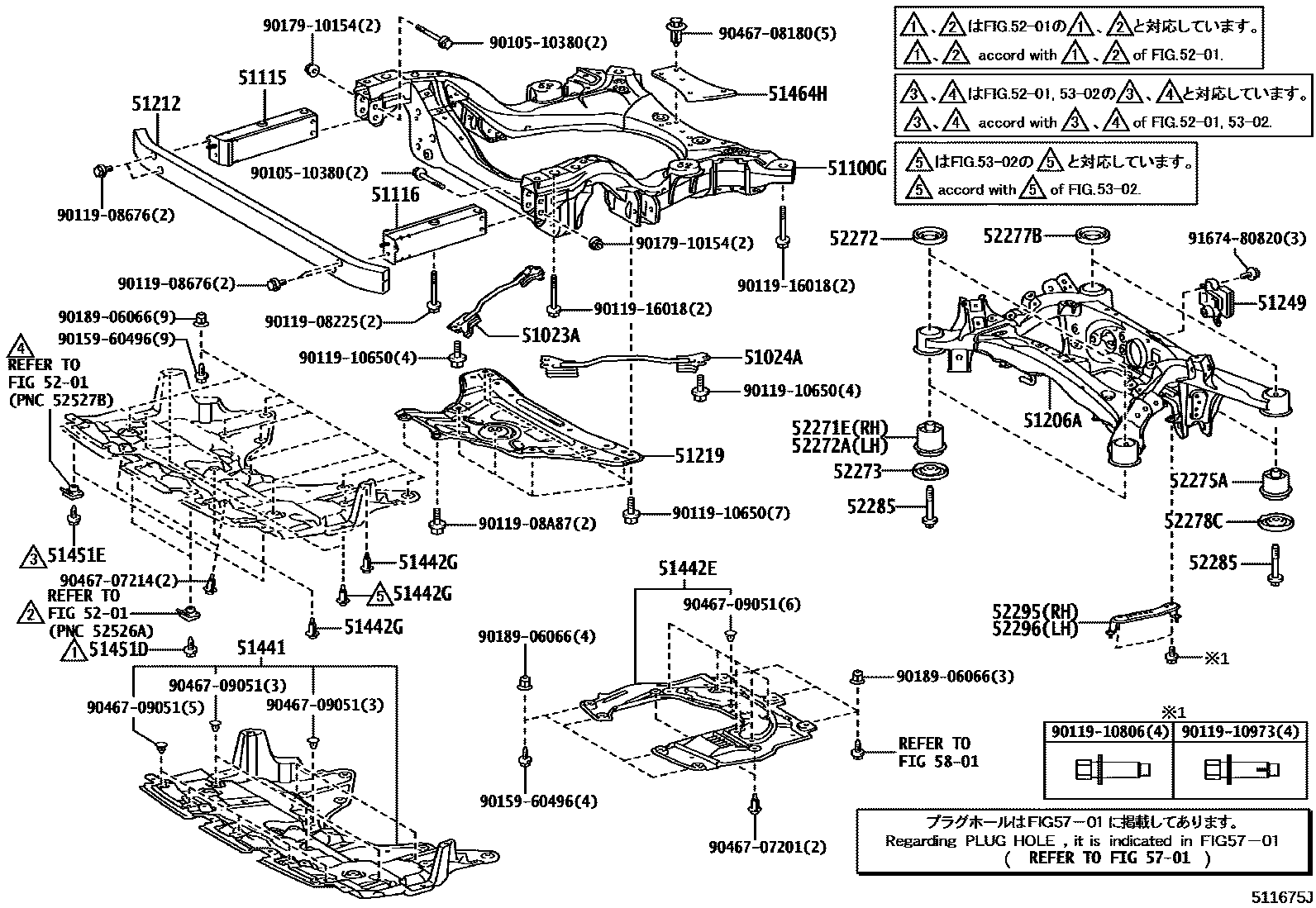

SUSPENSION CROSSMEMBER & UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-50010iUVF4#¥2,670200704-200911

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-50010iUVF4#¥2,670200704-200911

51100GFRAME ASSY, FRONT

main51100-50030iUVF4#¥95,500200704-201209

sub51100-50031¥79,500

sub90105-10562¥240

51115RAIL, FRAME SIDE, REAR RH

main51107-50021iUVF4#¥7,400200704-201106

main51107-50022iUVF4#¥4,520201106

51116RAIL, FRAME SIDE, REAR LH

main51108-50021iUVF4#¥7,400200704-201106

main51108-50022iUVF4#¥4,520201106

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-50050iUVF4#¥115,000200704-200911

sub51206-50051¥57,500

51212CROSSMEMBER, FRONT SUSPENSION, LOWER

main51212-50031iUVF4#¥30,600200704-200911

main51212-50050iUVF4#¥26,000200911-201108

main51212-50051iUVF4#¥17,400201109-201209

51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR

main51219-50030iUVF4#¥12,500200704-200911

51249DAMPER, REAR SUSPENSION MEMBER

main51249-50030iUVF4#¥3,990200704-200911

51441COVER, ENGINE UNDER, NO.1

main51440-50050iUVF4#¥30,900200704-200809

sub51440-50051¥30,900

main51440-50051iUVF4#¥30,900200809-200911

main51440-50060iUVF46..GCC200911

51442ECOVER, ENGINE UNDER, NO.2

main51420-50030iUVF4#¥11,200200704-200911

51442GCLIP, ENGINE UNDER COVER, NO.1

main90467-07166iUVF4#¥90200704-201003

main90467-07214iUVF4#¥70201004-201209

51451DSCREW, NO.1

main90159-60477iUVF4#¥70200704-201209

51451ESCREW, NO.2

main90159-60477iUVF4#¥70200704-201209

51464HSILENCER, TRANSMISSION UNDER

main51464-50010iUVF4#¥720200704-200911

5201

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-50060iUVF4#¥4,930200704-200911

sub52271-50061¥4,110

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52278-50030iUVF4#¥630200704-200911

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-50010iUVF4#¥4,640200704-200911

sub52272-50011¥3,860

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-50020iUVF4#¥430200704-200911

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-50071iUVF4#¥4,930200704-200911

sub52275-50072¥4,110

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-50031iUVF4#¥840200704-200911

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52274-50020iUVF4#¥840200704-200911

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iUVF4#¥1,360200704-200911

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50030iUVF4#¥1,580200704-200911

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50030iUVF4#¥1,580200704-200911

5701

5801

9010510380

main90105-10380¥310

9011908225

main90119-08225¥0

9011908676

main90119-08676¥120

9011908A87

main90119-08A87¥100

9011910650

main90119-10650¥110

9011910806

main90119-10806¥810

9011910973

main90119-10973¥100

9011916018

main90119-16018¥780

9015960496

main90159-60496¥60

9017910154

main90179-10154¥110

9018906066

main90189-06066¥80

9046707201

main90467-07201¥100

9046707214

main90467-07214¥70

9046708180

main90467-08180¥130

9046709051

main90467-09051¥120

9167480820

main91674-80820¥80

44 parts on this diagram · 1 diagram in section
