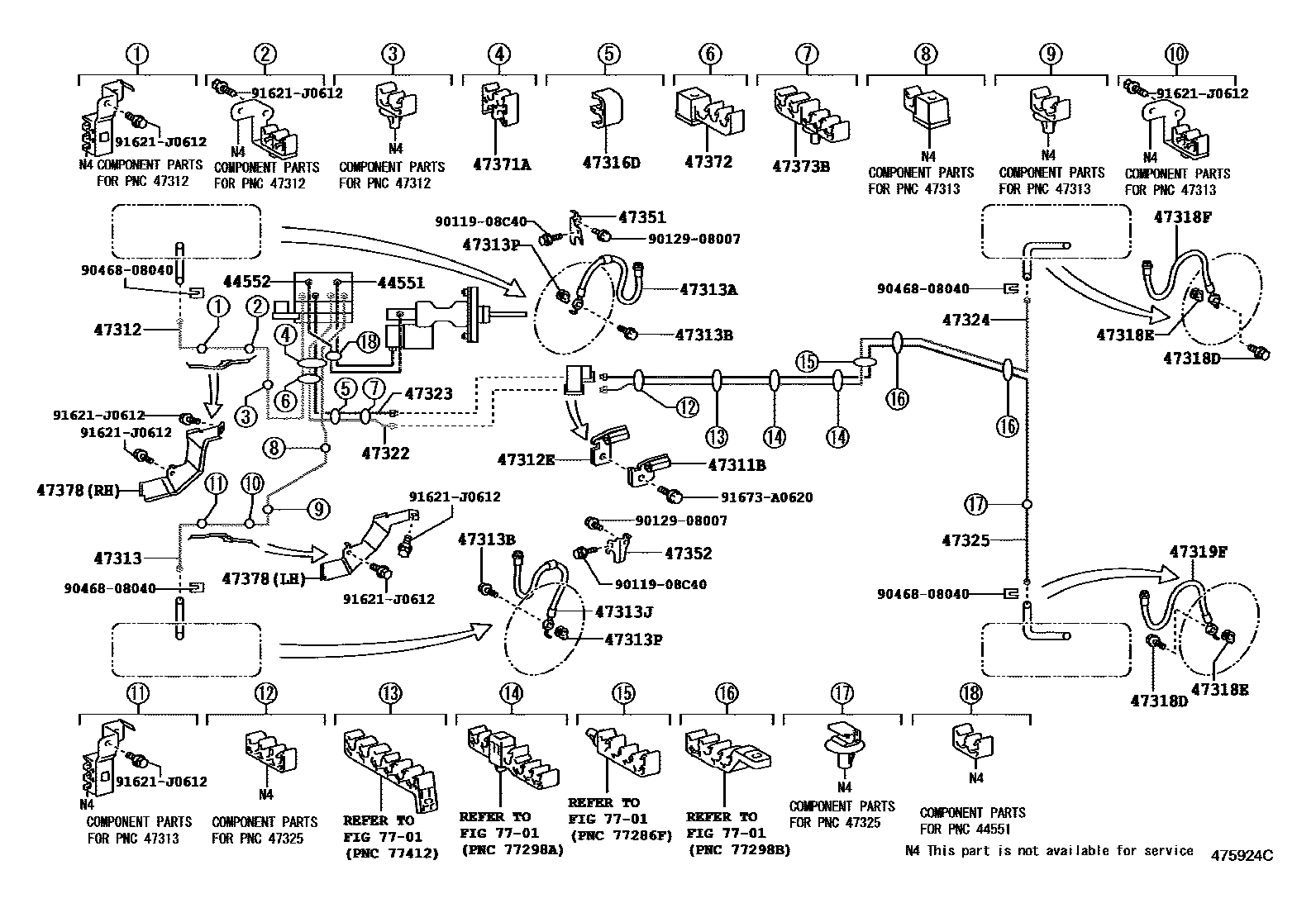

BRAKE TUBE & CLAMP
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47312EWAY, NO.2(FOR FRONT BRAKE TUBE)
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
CHINA(EXCEPT BEIJING) SPEC
BEIJING SPEC
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47316DGROMMET(FOR REAR BRAKE TUBE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
47319FHOSE, FLEXIBLE(FOR REAR LH)
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
7701
9011908C40
main90119-08C40
9012908007
main90129-08007
9046808040
main90468-08040
91621J0612
main91621-J0612
91673A0620
main91673-A0620
31 parts on this diagram · 4 diagrams in section
