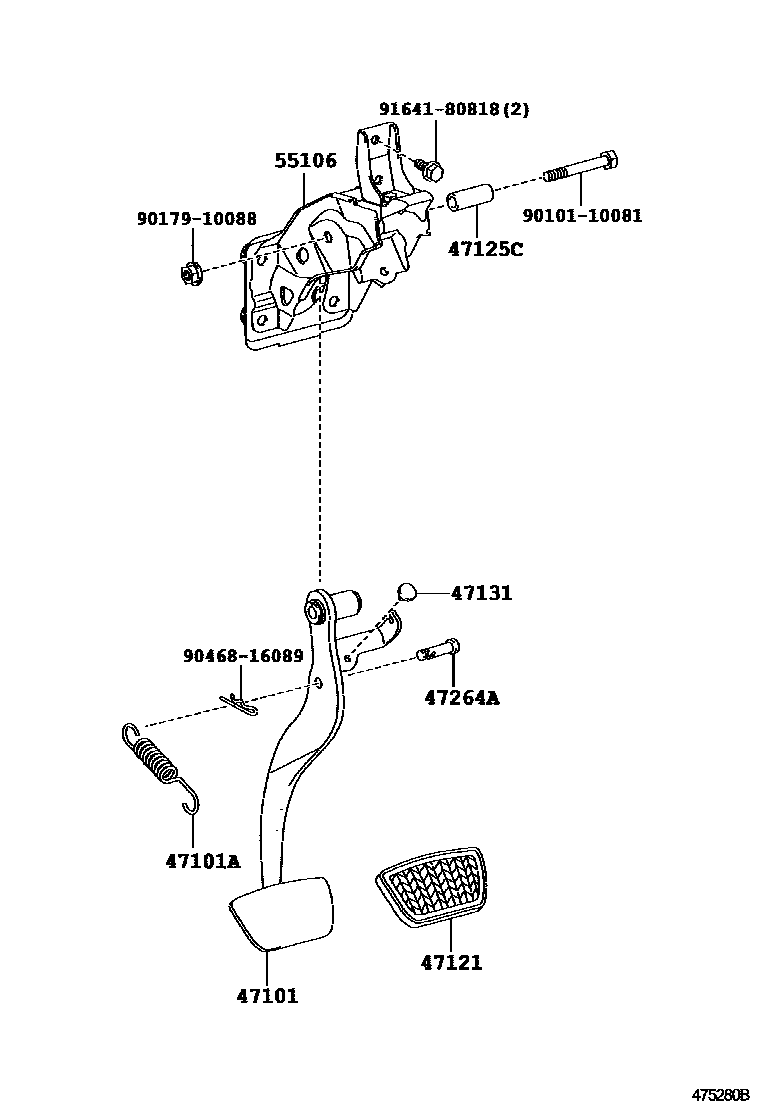

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-50090iUVF4#..LHD200704-200911

main47101-50100iUVF4#..RHD200704-200911

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07002iUVF4#200704-200911

47121PAD, BRAKE PEDAL

main47121-50020iUVF4#200704-200911

47125CCOLLAR(FOR BRAKE PEDAL BRACKET)

main47144-50010iUVF4#200704-200911

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iUVF4#200704-200911

47264APIN(FOR PUSH ROD)

main90249-10199iUVF4#200704-200911

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-50090iUVF4#..LHD200704-200911

main55106-50100iUVF4#..RHD200704-200911

9010110081

main90101-10081

9017910088

main90179-10088

9046816089

main90468-16089

9164180818

main91641-80818

11 parts on this diagram · 1 diagram in section
