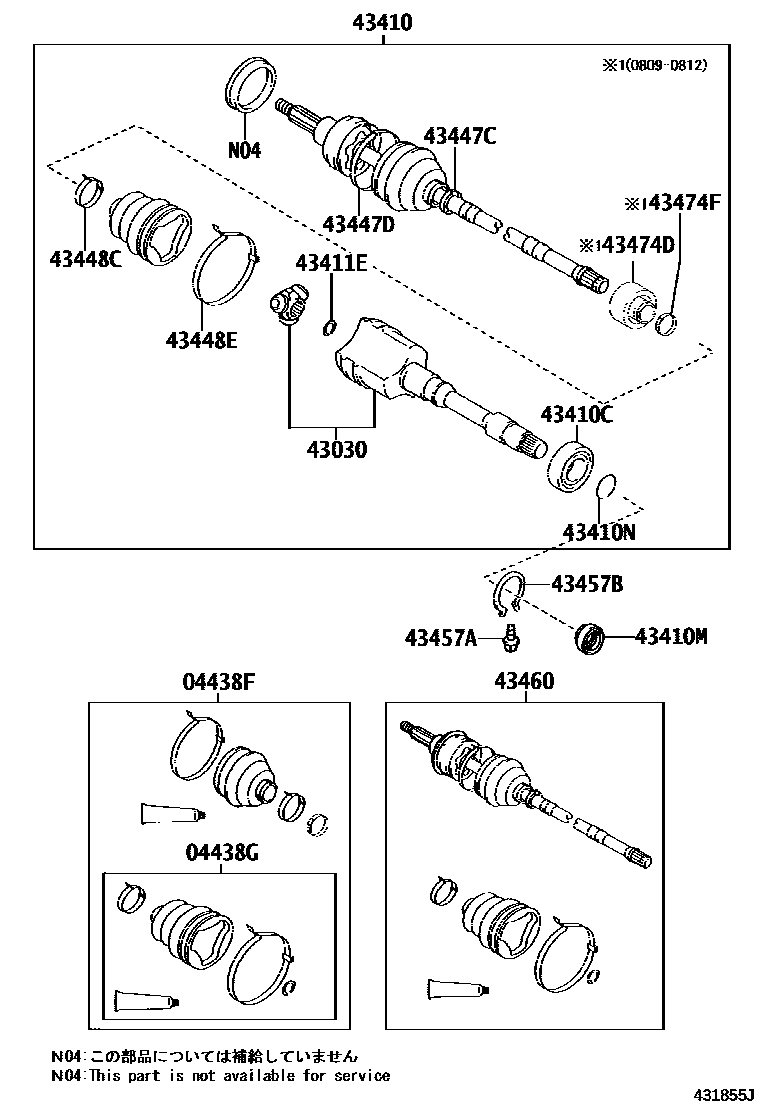

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-50010iUVF4#¥10,800200704-200806

sub04427-50020¥10,800

main04427-50020iUVF4#¥10,800200806-201007

main04427-50040iUVF4#¥10,800201008

sub04427-50041¥9,000

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-50030iUVF4#¥6,700200704-200911

sub04437-50040¥5,500

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-50010iUVF4#¥40,800200704-201209

sub43030-50011¥34,000

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-50011iUVF4#¥85,400200704-200812

sub43410-50012¥85,400

main43410-50012iUVF4#¥85,400200812-201007

sub43410-50013¥85,400

main43410-50013iUVF4#¥85,400201008

sub43410-50014¥71,100

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iUVF4#¥2,470200704-200805

sub90363-36004¥2,470

sub90363-36010¥2,470

main90363-36010iUVF4#¥2,470200806-200911

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35060iUVF4#¥400200704-201209

sub90311-35070¥400

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iUVF4#¥110200704-200911

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-07020iUVF4#¥80200704-200911

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-07080iUVF4#¥240200704-200911

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-05270iUVF4#¥680200704-200911

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-22020iUVF4#¥320200704-201208

sub42345-50070¥190

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42346-22010iUVF4#¥620200704-201208

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iUVF4#¥130200704-200911

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iUVF4#¥130200704-200911

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59645iUVF4#¥68,000200704-200811

sub43460-59646¥68,000

main43460-59646iUVF4#¥68,000200812-201008

sub43460-59647¥68,000

main43460-59647iUVF4#¥68,000201008-201209

sub43460-59648¥56,600

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-50010iUVF4#¥3,940200704-200812

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-22020iUVF4#¥320200806-200812

sub42345-50070¥190

main42345-50040iUVF4#¥310200704-200806

sub42345-22020¥320

17 parts on this diagram · 2 diagrams in section
