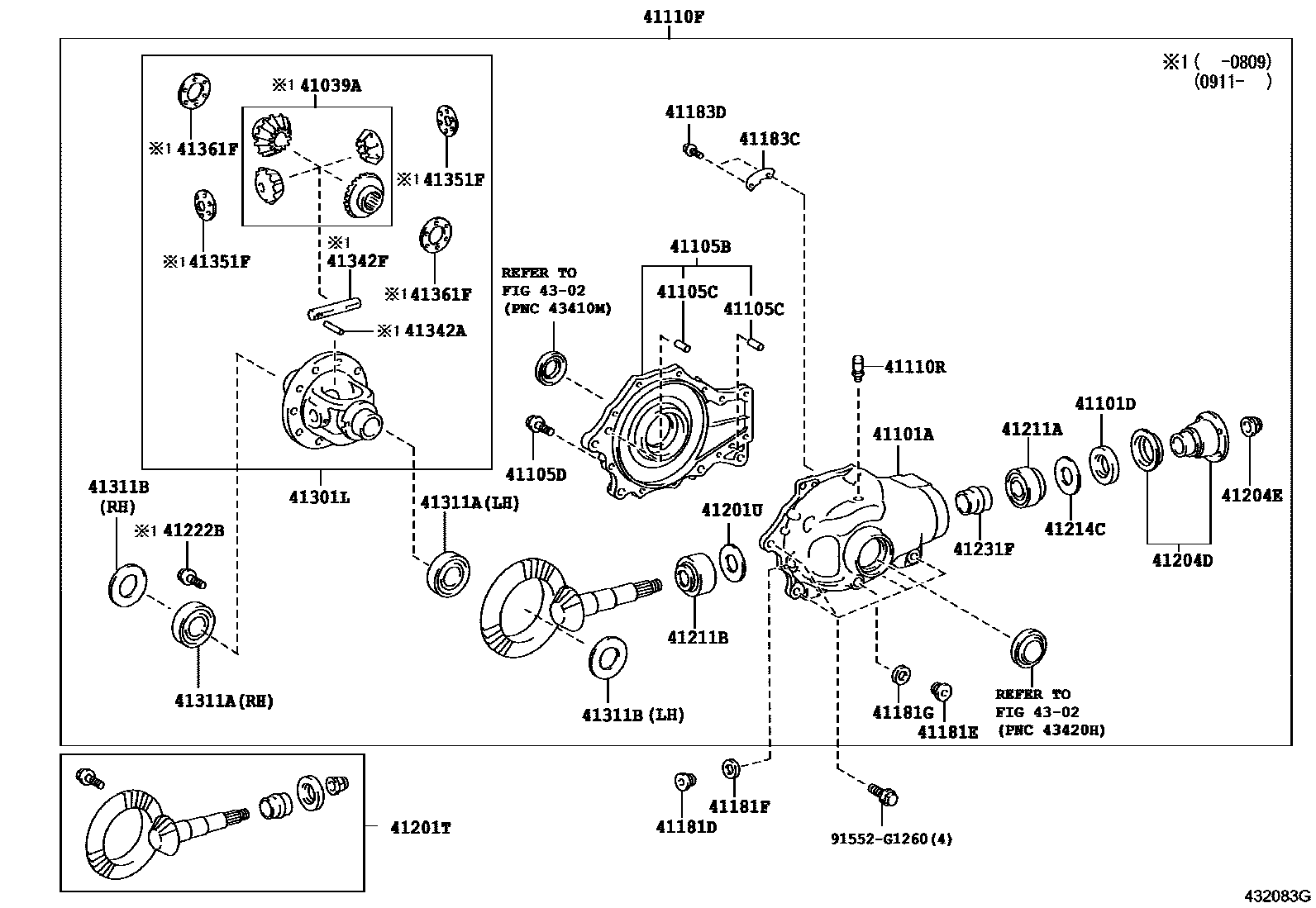

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41105BRETAINER SUB-ASSY, FRONT DIFFERENTIAL CARRIER
41105CPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER RETAINER)
41105DBOLT (FOR FRONT DIFFERENTIAL CARRIER RETAINER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=47:14=3.357
41181EPLUG (FOR FRONT DIFFERENTIAL DRAIN)
41181FGASKET (FOR FRONT DIFFERENTIAL FILLER PLUG)
41181GGASKET (FOR FRONT DIFFERENTIAL DRAIN PLUG)
41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL
41183DBOLT (FOR FRONT DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR)
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
41201USHIM (FOR FRONT DIFF DRIVE PINION SPACER FRONT ADJUST)
T=1.00
T=1.02
T=1.04
T=1.06
T=1.08
T=1.10
T=1.12
T=1.14
T=1.16
T=1.18
T=1.20
T=1.22
T=1.24
T=1.26
T=1.28
T=1.30
T=1.32
T=1.34
T=1.36
T=1.38
T=1.40
T=1.42
T=1.44
T=1.46
T=1.48
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
sub90366-36022
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41301LCASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1
sub41301-50070
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
LH
RH
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=2.20,RH
T=2.22,RH
T=2.24,RH
T=2.26,RH
T=2.28,RH
T=2.30,RH
T=2.32,RH
T=2.34,RH
T=2.36,RH
T=2.38,RH
T=2.40,RH
T=2.42,RH
T=2.44,RH
T=2.46,RH
T=2.48,RH
T=2.50,RH
T=2.52,RH
T=2.54,RH
T=2.56,RH
T=2.58,RH
T=2.60,RH
T=2.62,RH
T=2.64,RH
T=2.66,RH
T=2.68,RH
T=2.70,RH
T=2.72,RH
T=2.74,RH
T=2.76,RH
T=2.78,RH
T=2.80,RH
T=2.82,RH
T=2.84,RH
T=2.86,RH
T=2.88,RH
T=2.90,RH
T=2.92,RH
T=2.94,RH
T=2.96,RH
T=2.98,RH
T=3.00,RH
T=3.02,RH
T=3.04,RH
T=3.06,RH
T=2.10,RH
T=2.12,RH
T=2.14,RH
T=2.16,RH
T=2.18,RH
T=2.16,LH
T=2.18,LH
T=2.20,LH
T=2.22,LH
T=2.24,LH
T=2.26,LH
T=2.28,LH
T=2.30,LH
T=2.32,LH
T=2.34,LH
T=2.36,LH
T=2.38,LH
T=2.40,LH
T=2.42,LH
T=2.44,LH
T=2.46,LH
T=2.48,LH
T=2.50,LH
T=2.52,LH
T=2.54,LH
T=2.56,LH
T=2.58,LH
T=2.60,LH
T=2.62,LH
T=2.64,LH
T=2.66,LH
T=2.68,LH
T=2.70,LH
T=2.72,LH
T=2.74,LH
T=2.76,LH
T=2.78,LH
T=2.80,LH
T=2.82,LH
T=2.84,LH
T=2.86,LH
T=2.88,LH
T=2.90,LH
T=2.92,LH
T=2.94,LH
T=2.96,LH
T=2.98,LH
T=3.00,LH
T=3.02,LH
T=3.04,LH
T=2.12
T=2.12,LH
T=2.14
T=2.14,LH
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.0
T=1.1
T=1.2
T=1.3
4302
91552G1260
main91552-G1260
32 parts on this diagram · 1 diagram in section
