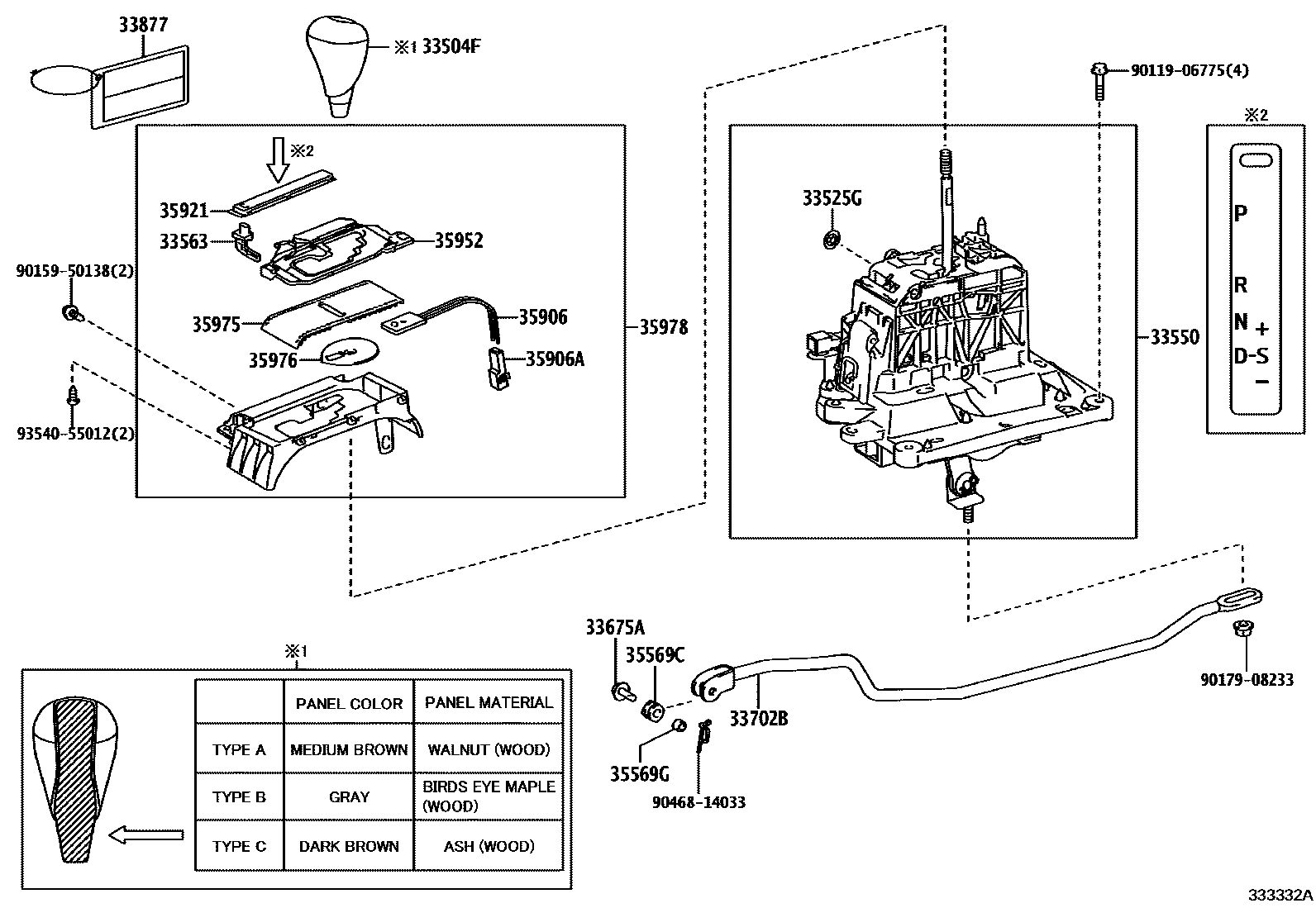

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK & SILVER,TRIM05,14,TYPE C:REFER ILLUST.
sub33504-30352
BLACK & BROWN,TRIM02,2#,TYPE C:REFER ILLUST.
sub33504-30352
ORCHID BROWN & BROWN,TRIM07,TYPE C:REFER ILLUST.
sub33504-30352
GRAY,TRIM1#,TYPE B:REFER ILLUST.
GRAY,TRIM10,12,TYPE B:REFER ILLUST.
DK.BROWN,TRIM01,05,TYPE C:REFER ILLUST.
BLACK & SILVER,TRIM0#,1#,TYPE C:REFER ILLUST.
sub33504-30352
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,SILVER,TRIM0#,1#,TYPE C:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,SILVER,TRIM0#,1#,TYPE C:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,GRAY,TRIM08,15,TYPE C:REFER ILLUST.
GRAY,TRIM08,15,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,GRAY,TRIM08,15,TYPE C:REFER ILLUST.
SILVER,TRIM05,14,TYPE C:REFER ILLUST.
SILVER,TRIM05,1#,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,SILVER,TRIM05,14,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,SILVER,TRIM05,14,TYPE C:REFER ILLUST.
BROWN,TRIM02,2#,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,BROWN,TRIM02,2#,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,BROWN,TRIM02,2#,TYPE C:REFER ILLUST.
BROWN,TRIM07,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,BROWN,TRIM07,TYPE C:REFER ILLUST.
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,BROWN,TRIM07,TYPE C:REFER ILLUST.
ORCHID BROWN & BROWN,TRIM0#,TYPE D:REFER ILLUST.
sub33504-30352
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,BROWN,TRIM0#,TYPE D:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,BROWN,TRIM0#,TYPE D:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,BROWN,TRIM0#,2#,TYPE A:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,BROWN,TRIM0#,2#,TYPE A:REFER ILLUST.
sub33504-50141
GRAY,TRIM0#,1#,TYPE B:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,GRAY,TRIM0#,1#,TYPE B:REFER ILLUST.
sub33504-50141
STEERING WHEEL-4-SPOKE,WOODS,HEATER,LEATHER PAD,GRAY,TRIM0#,1#,TYPE B:REFER ILLUST.
sub33504-50141
33525GRING, SHIFT LEVER
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
35921PLATE, CONTROL POSITION INDICATOR
35952LENS, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
9011906775
main90119-06775
9015950138
main90159-50138
9017908233
main90179-08233
9046814033
main90468-14033
9354055012
main93540-55012
21 parts on this diagram · 4 diagrams in section
