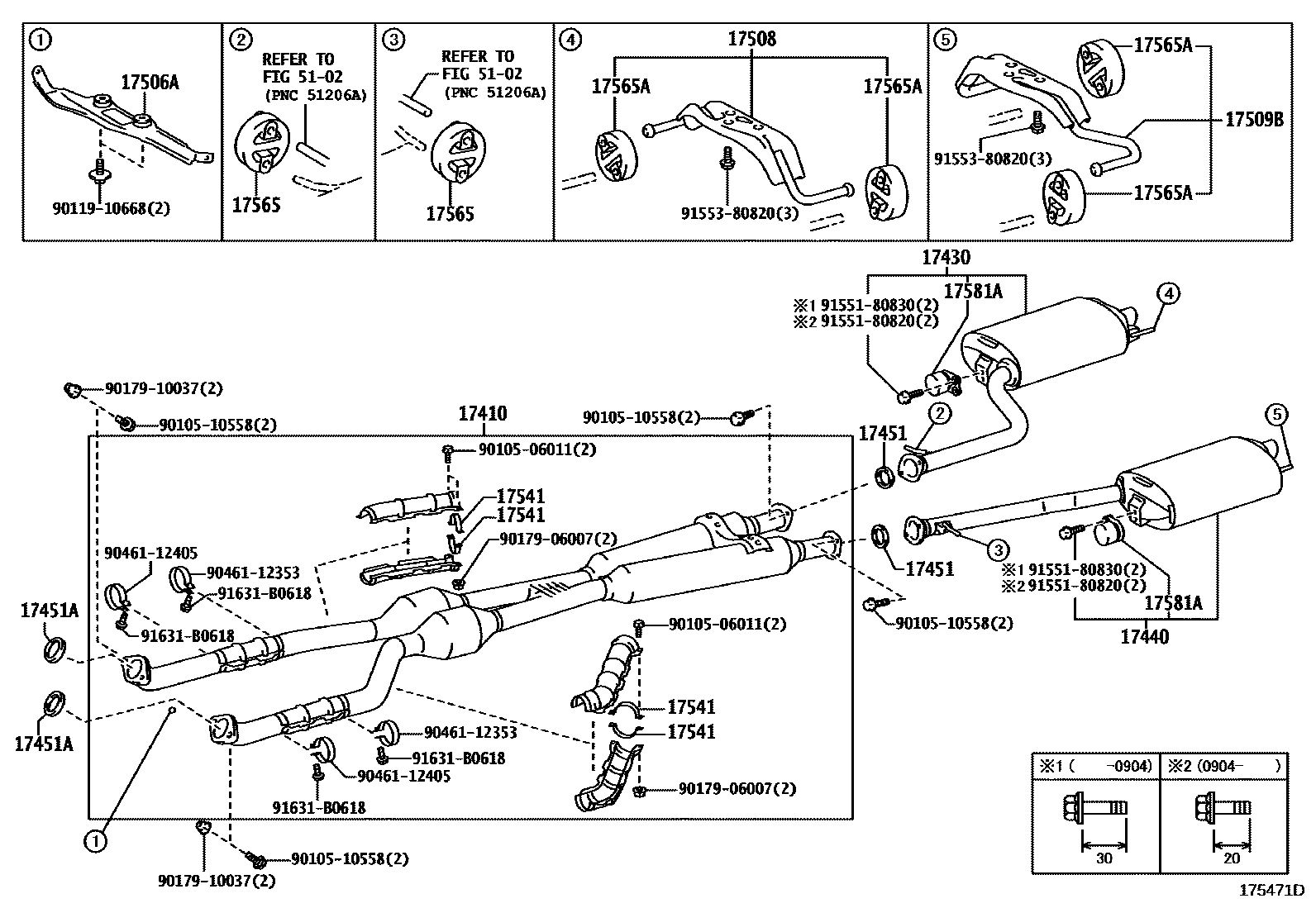

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
*114=TOYOTA/PA1/Y
*114=TOYOTA/PA1/Y
17430PIPE ASSY, EXHAUST, TAIL
sub17430-38570
RUSSIA SPEC
HONG KONG SPEC
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
SOUTH AMERICA SPEC
17440PIPE, EXHAUST TAIL, LH
sub17440-38040
RUSSIA SPEC
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
HONG KONG SPEC
SOUTH AMERICA SPEC
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT
17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17509BSUPPORT, EXHAUST PIPE NO.4
17541STAY, EXHUST PIPE PROTECTOR, NO.1
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17581ADAMPER, EXHAUST PIPE
5102
9010506011
main90105-06011
9010510558
main90105-10558
9011910668
main90119-10668
9017906007
main90179-06007
9017910037
main90179-10037
9046112353
main90461-12353
9046112405
main90461-12405
9155180820
main91551-80820
9155180830
main91551-80830
9155380820
main91553-80820
91631B0618
main91631-B0618
24 parts on this diagram · 1 diagram in section
