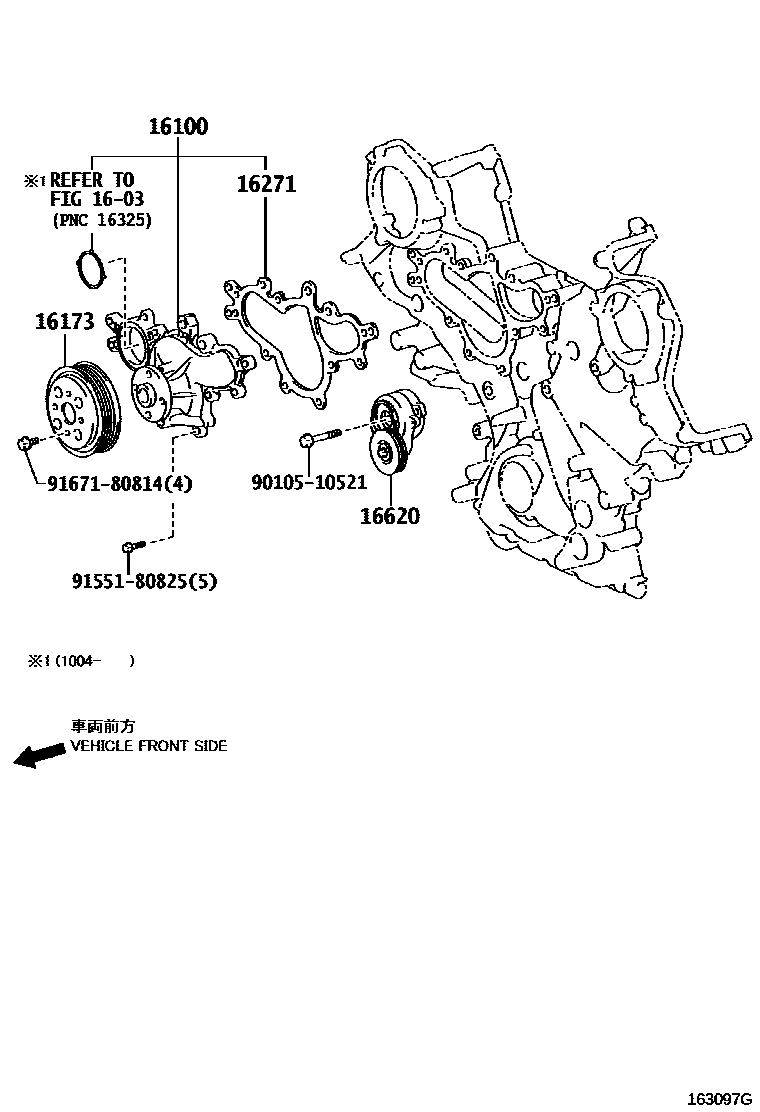

WATER PUMP

1603

16100PUMP ASSY, ENGINE WATER

main16100-39505i2URFSE..UVF4#200704-201004

sub16100-39506

main16100-39506i2URFSE..UVF4#201004

16173PULLEY, WATER PUMP

main16173-38060i2URFSE..UVF4#200704-200911

sub16173-38061

16271GASKET, WATER PUMP

main16271-38010i2URFSE..UVF4#200704-200911

16620TENSIONER ASSY, V-RIBBED BELT

main16620-38020i2URFSE..UVF4#200704-200911

9010510521

main90105-10521

9155180825

main91551-80825

9167180814

main91671-80814

8 parts on this diagram · 1 diagram in section
