CAMSHAFT & VALVE

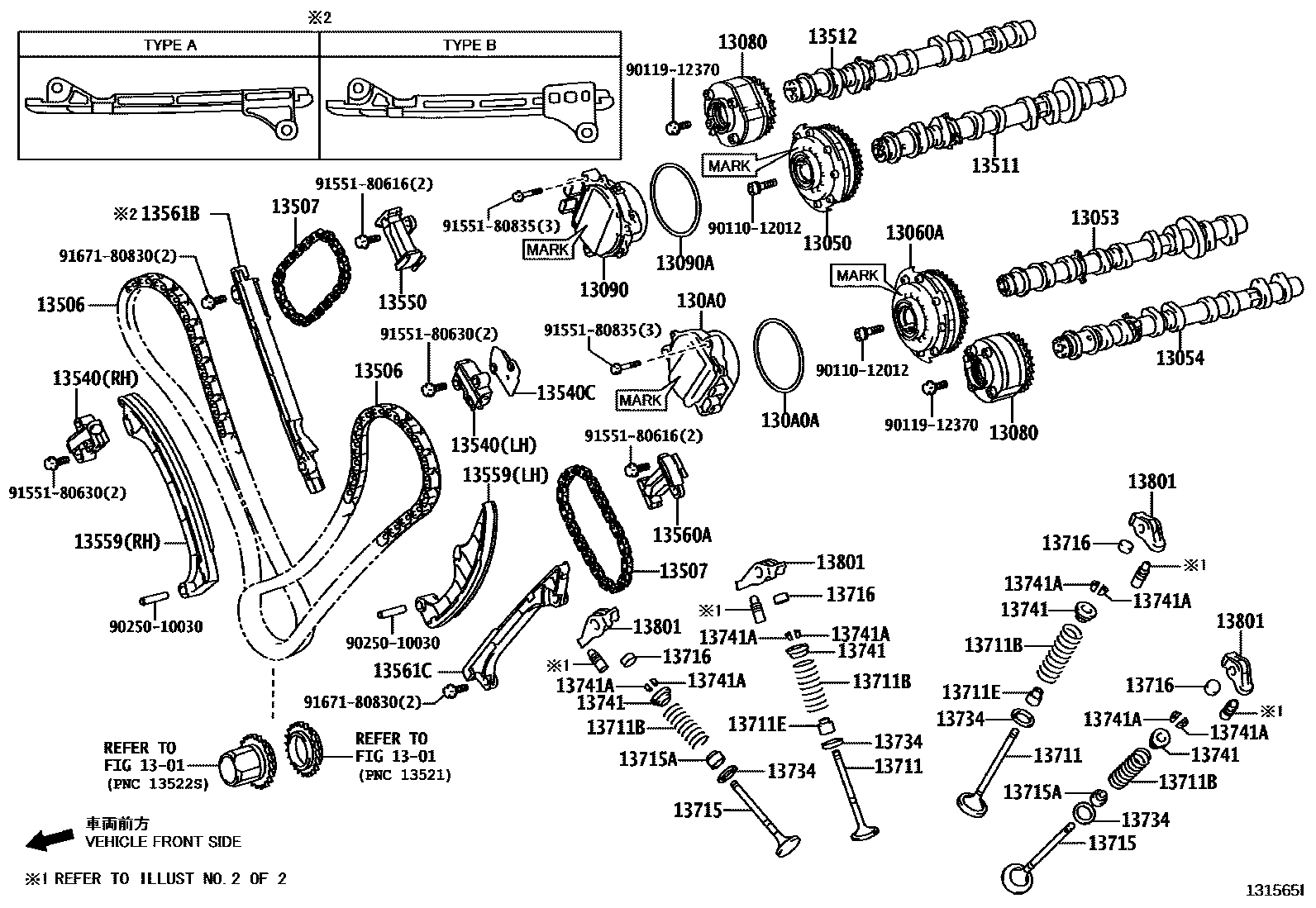

Parts diagram
1301
13050GEAR ASSY, CAMSHAFT TIMING
main13050-38030i200704-200712
sub13050-38031
main13050-38031i200712-200809
main13050-38031i200809-200905
MARK 13050-38031
main13050-38032i200905-200911
MARK 13050-38032
main13050-38032i200911
13053CAMSHAFT SUB-ASSY, NO.3
main13053-38020i200704-200911
sub13053-38050
13054CAMSHAFT SUB-ASSY, NO.4
main13054-38020i200704-200911
sub13054-38050
13060AGEAR ASSY, CAMSHAFT TIMING, LH
main13050-38030i200704-200712
sub13050-38031
main13050-38031i200809-200905
MARK 13050-38031
main13050-38031i200712-200809
main13050-38032i200905-200911
MARK 13050-38032
main13050-38032i200911
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
main13080-38010i200704-201204
sub13080-38011
main13080-38011i201204
13090MOTOR ASSY, CAM TIMING CONTROL W/EDU, RH
main13090-38010i200704-200809
sub13090-38030
main13090-38010i200809-200905
MARK 13090-38010
sub13090-38030
main13090-38011i200905-200911
MARK 13090-38011
sub13090-38012
main13090-38011i200911-201209
sub13090-38012
13090ARING, O(FOR CAM TIMING CONTROL MOTOR RH)
main90301-92004i200704-201209
130A0MOTOR ASSY, CAM TIMING CONTROL W/EDU, LH
main130A0-38010i200704-200809
sub130A0-38030
main130A0-38010i200809-200905
MARK 130A0-38010
sub130A0-38030
main130A0-38011i200911-201209
sub130A0-38012
main130A0-38011i200905-200911
MARK 130A0-38011
sub130A0-38012
130A0ARING, O(FOR CAM TIMING CONTROL MOTOR LH)
main90301-92004i200704-201209
13506CHAIN SUB-ASSY
main13506-38030i200704-200911
13507CHAIN SUB-ASSY, NO.2
main13507-31020i200704-200911
13511CAMSHAFT
main13501-38020i200704-200911
sub13501-38050
13512CAMSHAFT, NO.2
main13502-38020i200704-200911
sub13502-38050
13540TENSIONER ASSY, CHAIN, NO.1
main13540-38020i200704-200911
RH
main13540-38041i200704-200911
LH
sub13540-38042
13540CGASKET(FOR CHAIN TENSIONER)
main13552-38010i200704-200911
13550TENSIONER ASSY, CHAIN, NO.2
main13550-38020i200704-200911
13559SLIPPER, CHAIN TENSIONER
main13559-38030i200704-200911
RH
main13559-38040i200704-200911
LH
13560ATENSIONER ASSY, CHAIN, NO.3
main13560-38021i200704-200911
13561BDAMPER, CHAIN VIBRATION, RH
main13561-38040i200704-200806
TYPE A:REFER ILLUST.
main13561-38060i200806-200809
TYPE B:REFER ILLUST.
main13561-38060i200809-201209
13561CDAMPER, CHAIN VIBRATION, LH
main13561-38050i200704-200806
REFER TO PNC 13561B
main13561-38070i200806-200809
REFER TO PNC 13561B
main13561-38070i200809-201209
13711VALVE, INTAKE
main13711-38030i200704-201209
sub13711-38031
13711BSPRING, COMPRESSION(FOR INNER)
main90501-33022i200704-200807
sub90501-34015
sub90501-34H00
main90501-34015i200807-200908
sub90501-35046
main90501-35046i200908-200911
13711ESEAL, INTAKE VALVE STEM OIL
main90913-02101i200704-200911
13715VALVE, EXHAUST
main13715-31120i200704-200908
sub13715-31150
main13715-31150i200908-200911
13715ASEAL, EXHAUST VALVE STEM OIL
main90913-02112i200704-200911
13716CAP, VALVE STEM
main13716-75020i200704-200911
13734SEAT, VALVE SPRING
main13734-62020i200704-200911
13741RETAINER, VALVE SPRING
main13741-31020i200704-200911
13741ALOCK, VALVE SPRING RETAINER
main90913-03028i200704-200911
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13801-31020i200704-200907
sub13801-38020
main13801-38020i200907-200911
9011012012
main90110-12012
9011912370
main90119-12370
9025010030
main90250-10030
9155180616
main91551-80616
9155180630
main91551-80630
9155180835
main91551-80835
9167180830
main91671-80830

38 parts on this diagram · 2 diagrams in section
