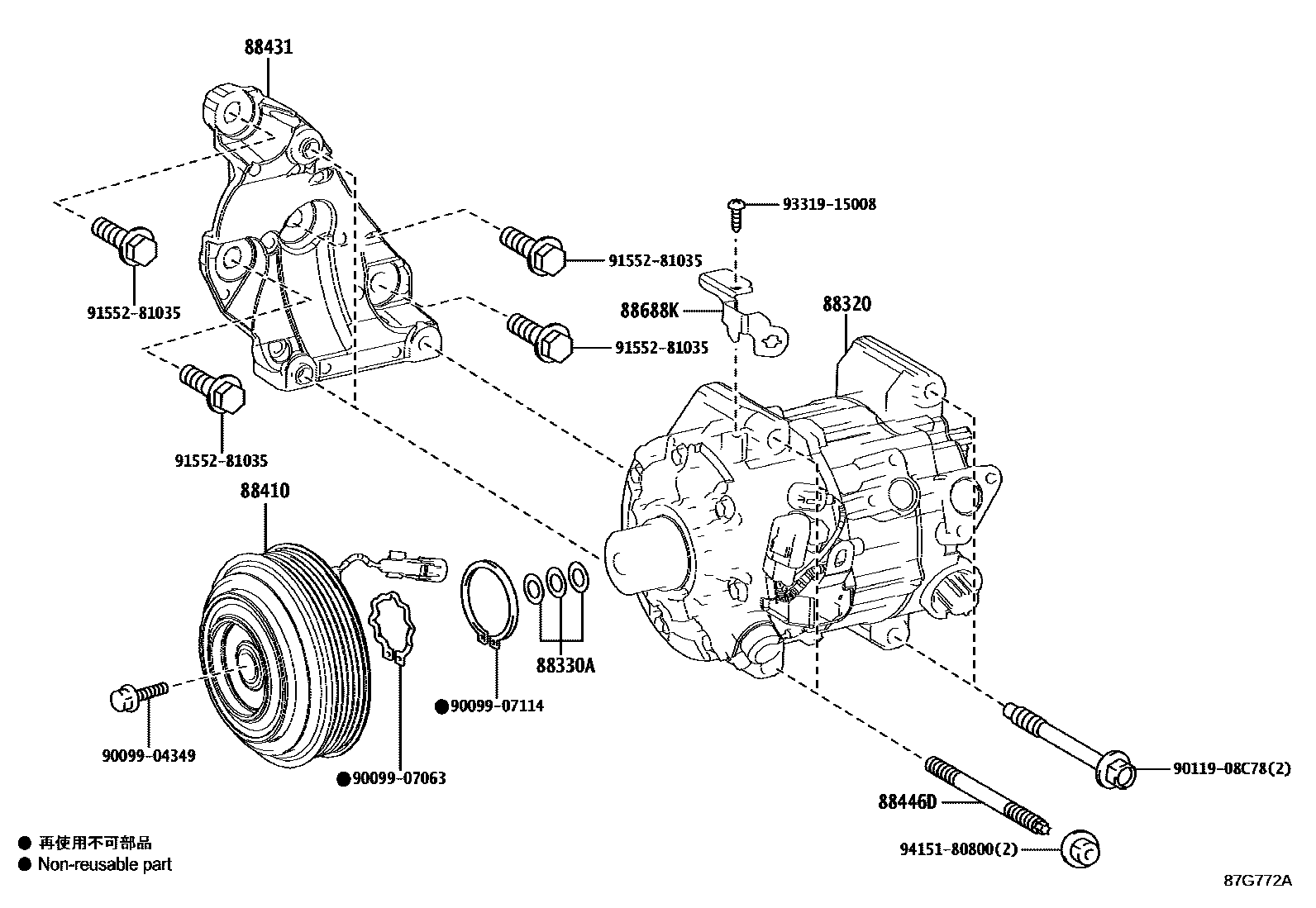

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0005 1 0007 1

88320COMPRESSOR ASSY, COOLER

main88320-50120iGSF50202310-202410

main88320-50130iGSF50201710-202310

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGSF50201710-202410

88410CLUTCH ASSY, MAGNET

main88410-0N010iGSF50201710-202410

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-11010iGSF50201710-202509

main88431-50020iGVF55201710-202509

88446DBOLT, COOLER

main88446-60050iGSF50201710-202410

main88899-44010iGVF5#201710-202509

88688KBRACKET, COOLER COMPRESSOR

main88688-33570iGSF50201710-202410

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9011908C78

main90119-08C78

9155281035

main91552-81035

9331915008

main93319-15008

9415180800

main94151-80800

13 parts on this diagram · 4 diagrams in section
