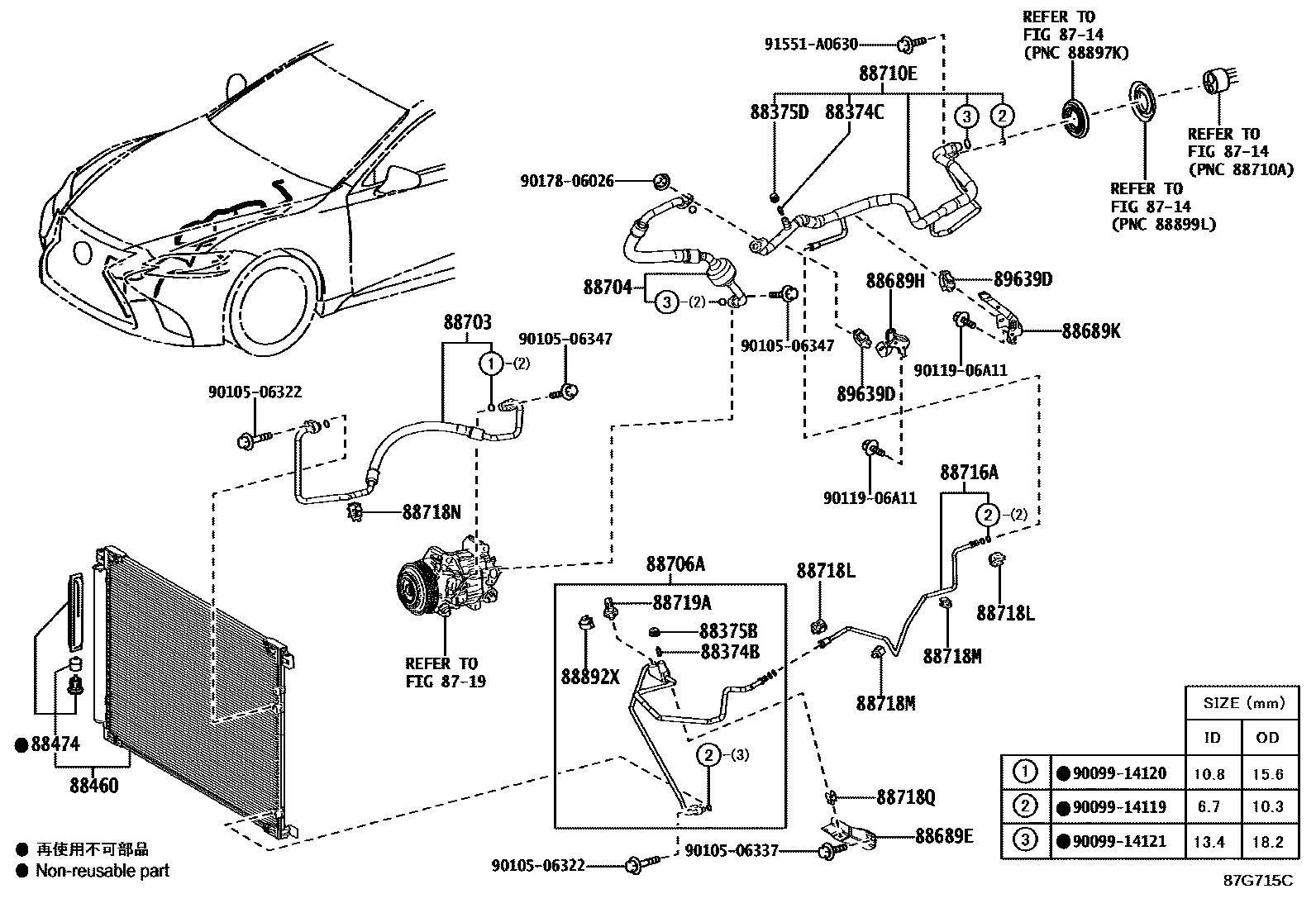

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0003 1 0005 1 0007 1 0009 1 0011 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iGSF50,GVF5#,VXFA55201710-202509

88374CVALVE, SERVICE, NO.2

main88374-30010iGVF5#201710-202509

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGSF50,VXFA55202310-202410

main88375-30320iGSF50,GVF5#,VXFA55201710-202509

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iGSF50,VXFA55202310-202410

main88375-30310iGSF50,VXFA55201710-202509

88460CONDENSER ASSY, COOLER

main884A0-50020iGSF50,VXFA55202310-202410

main884A0-50030iGVF5#201710-202509

main884A0-50040iGSF50,VXFA55201710-202310

88474DRYER, COOLER

main88474-12010iGSF50,VXFA55201710-202410

main88474-12020iGVF5#201710-202509

88689EBRACKET, COOLER, NO.1

main88688-50330iVXFA55201712-202410

main88688-50380iGSF50201710-202410

main88688-50390iGVF5#201710-202509

88689HBRACKET, COOLER, NO.4

main82715-50L00iGSF50201710-202410

88689KBRACKET, COOLER, NO.6

main82715-50L40iGSF50201710-202410

main82715-50M60iVXFA55201712-202410

88703HOSE SUB-ASSY, DISCHARGE

main88703-50090iVXFA55201712-202404

sub88703-50091

main88703-50091iVXFA55202405-202410

main88703-50100iGSF50201710-202403

sub88703-50101

main88703-50101iGSF50202404-202410

main88703-50110iGVF50201710-202404

sub88703-50111

main88703-50111iGVF50202405-202509

main88703-50120iGVF55201710-202404

sub88703-50121

main88703-50121iGVF55202405-202509

88704HOSE SUB-ASSY, SUCTION

main88704-11020iGVF50201710-202404

sub88704-11021

main88704-11021iGVF50202405-202509

main88704-50070iVXFA55201712-202404

sub88704-50071

main88704-50071iVXFA55202405-202410

main88704-50080iGSF50201710-202404

sub88704-50081

main88704-50081iGSF50202405-202410

main88704-50100iGVF55201710-202404

main88704-50101iGVF55202405-202509

88706ATUBE SUB-ASSY, LIQUID, A

main88706-50060iVXFA55202310-202410

main88706-50070iVXFA55201712-202310

main88706-50080iGSF50202310-202410

main88706-50090iGSF50201710-202310

main88706-50110iGVF5#201710-202509

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-50B70iVXFA55201712-202310

main88710-50B80iVXFA55202310-202410

main88710-50C10iGSF50201710-202310

main88710-50C20iGSF50202310-202410

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-50660iVXFA55201712-202410

main88716-50670iGSF50201710-202410

main88716-50680iGVF5#..RHD201710-201810

sub88716-50681

main88716-50681iGVF5#..RHD201811-202509

main88716-50690iGVF55..LHD201710-202509

main88716-50740iGVF50..LHD201710-202509

88718LCLAMP, PIPING

main88718-2D150iGVF5#201710-202509

88718MCLAMP, PIPING

main88718-50390iGSF50,VXFA55201710-202509

88718NCLAMP, PIPING

main88718-47090iGVF5#201710-202509

88718QCLAMP, PIPING

main88718-32220iGSF50,GVF5#,VXFA55201710-202509

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iGSF50,VXFA55201710-202509

88892XCOVER, COOLER, NO.2

main88892-50120iGSF50,GVF5#,VXFA55201710-202509

89639DCLAMP, AIRCONDITIONER TUBE

main89639-58020iGSF50,GVF5#201710-202509

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506322

main90105-06322

9010506337

main90105-06337

9010506347

main90105-06347

9011906A11

main90119-06A11

9017806026

main90178-06026

91551A0630

main91551-A0630

32 parts on this diagram · 6 diagrams in section
