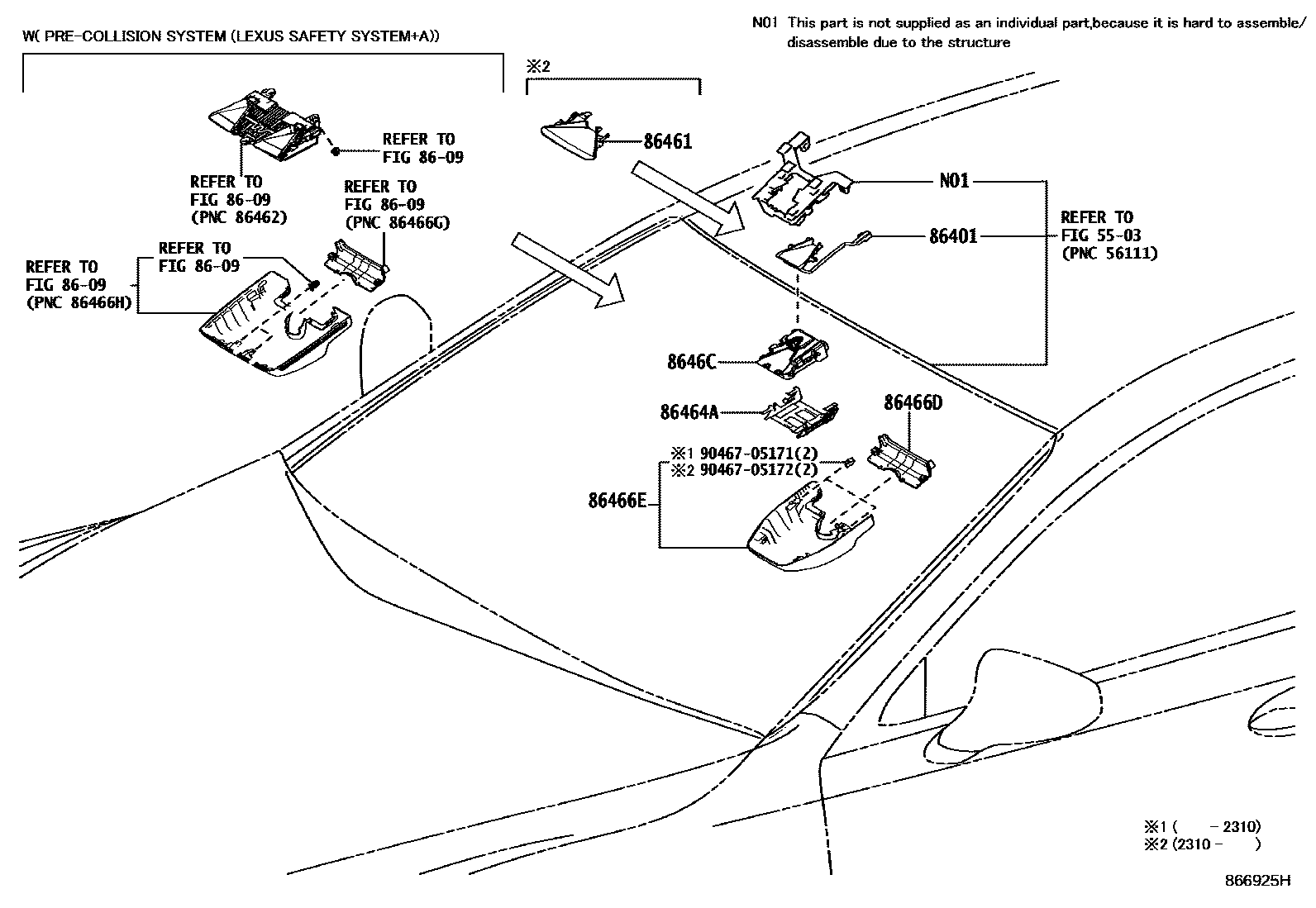

PRE-COLLISION SYSTEM

5503

8609

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main00000-00000iVXFA55201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86401-50010iGSF50,GVF5#,VXFA55..LHD201710-201809

PRE-COLLISION SYSTEM-WITHOUT

main86401-50010iGVF5#..RHD201710-201809

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main86401-50030iGSF50,GVF5#,VXFA55..LHD201809-201906

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

sub86401-50031

main86401-50030iGSF50,GVF5#,VXFA55..LHD201809-201906

PRE-COLLISION SYSTEM-WITHOUT

sub86401-50031

main86401-50031iGSF50,GVF5#,VXFA55..LHD201907-202010

PRE-COLLISION SYSTEM-WITHOUT

main86401-50031iGVF5#..RHD201907-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main86401-50031iGVF50..RHD202011-202206

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)

main86401-50031iGVF50..RHD202011-202311

WITHOUT(PRE-COLLISION SYSTEM)

main86401-50031iGVF5#..RHD202011-202310

LEXUS SAFETY SYSTEM+

main86401-50031iGSF50202310-202410

86461HOOD, FORWARD RECOGNITION

main86461-30010iGVF5#202310-202509

86464ALATCH, FORWARD RECOGNITION

main00000-00000iGVF5#201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86464-26010iGSF50202310-202410

main86464-26010iGVF5#..RHD201809-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main86464-26010iGVF5#..RHD201809-202010

PRE-COLLISION SYSTEM-WITHOUT

main86464-26010iGVF5#..RHD202011-202310

LEXUS SAFETY SYSTEM+

main86464-48011iGSF50,GVF5#,VXFA55..LHD201710-201809

PRE-COLLISION SYSTEM-WITHOUT

main86464-48011iGVF5#..RHD201710-201809

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

86466DCOVER, FORWARD RECOGNITION, NO.1

main00000-00000iGVF5#201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86466-50020iGVF5#..RHD201710-201910

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

sub86466-50021

main86466-50020iGVF5#..RHD201710-201910

PRE-COLLISION SYSTEM-WITHOUT

sub86466-50021

main86466-50021iGVF5#..RHD201911-202010

PRE-COLLISION SYSTEM-WITHOUT

main86466-50021iGVF50..RHD202011-202206

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)

main86466-50021iGVF50..RHD202011-202311

WITHOUT(PRE-COLLISION SYSTEM)

main86466-50021iGVF5#..RHD202011-202310

LEXUS SAFETY SYSTEM+

main86466-50021iGSF50202310-202410

main86466-50021iGVF5#..RHD201911-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main86467-50050iVXFA55202310-202509

86466ECOVER, FORWARD RECOGNITION, NO.2

main00000-00000iGVF5#201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main86466-50010iGVF5#..RHD201710-202010

PRE-COLLISION SYSTEM-WITHOUT

main86466-50010iGVF5#..RHD201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main86466-50010iGVF50..RHD202011-202206

INDIA SPEC&WITHOUT(PRE-COLLISION SYSTEM)

main86466-50010iGVF50..RHD202011-202311

WITHOUT(PRE-COLLISION SYSTEM)

main86466-50010iGVF5#..RHD202011-202310

LEXUS SAFETY SYSTEM+

main86466-50010iGSF50202310-202410

main86466-50050iVXFA55202310-202509

8646CCAMERA, FORWARD RECOGNITION

main00000-00000iGVF5#201710-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A,NOT APPLICABLE

main8646C-50010iGVF5#..RHD201710-201809

PRE-COLLISION SYSTEM-WITHOUT

main8646C-50010iGVF5#..RHD201710-201809

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main8646C-50020iGVF5#..RHD201809-201909

PRE-COLLISION SYSTEM-WITHOUT

main8646C-50020iGVF5#..RHD201809-201909

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main8646C-50030iGVF5#..RHD201909-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+

main8646C-50030iGVF5#..RHD201909-202010

PRE-COLLISION SYSTEM-WITHOUT

main8646C-50040iGVF5#..RHD202011-202111

LEXUS SAFETY SYSTEM+

main8646C-50050iGSF50,GVF5#,VXFA55..LHD202111-202201

LEXUS SAFETY SYSTEM+

main8646C-50051iGSF50,GVF5#,VXFA55..LHD202201-202209

LEXUS SAFETY SYSTEM+

sub8646C-50052

main8646C-50052iGSF50,GVF5#,VXFA55..LHD202210-202310

LEXUS SAFETY SYSTEM+

main8646C-50052iGSF50202310-202410

main8646C-50060iGVF5#..RHD202111-202310

main8646C-50090iVXFA55202310-202411

main8646C-50130iGVF5#202411-202509

9046705171

main90467-05171

9046705172

main90467-05172

10 parts on this diagram · 1 diagram in section
