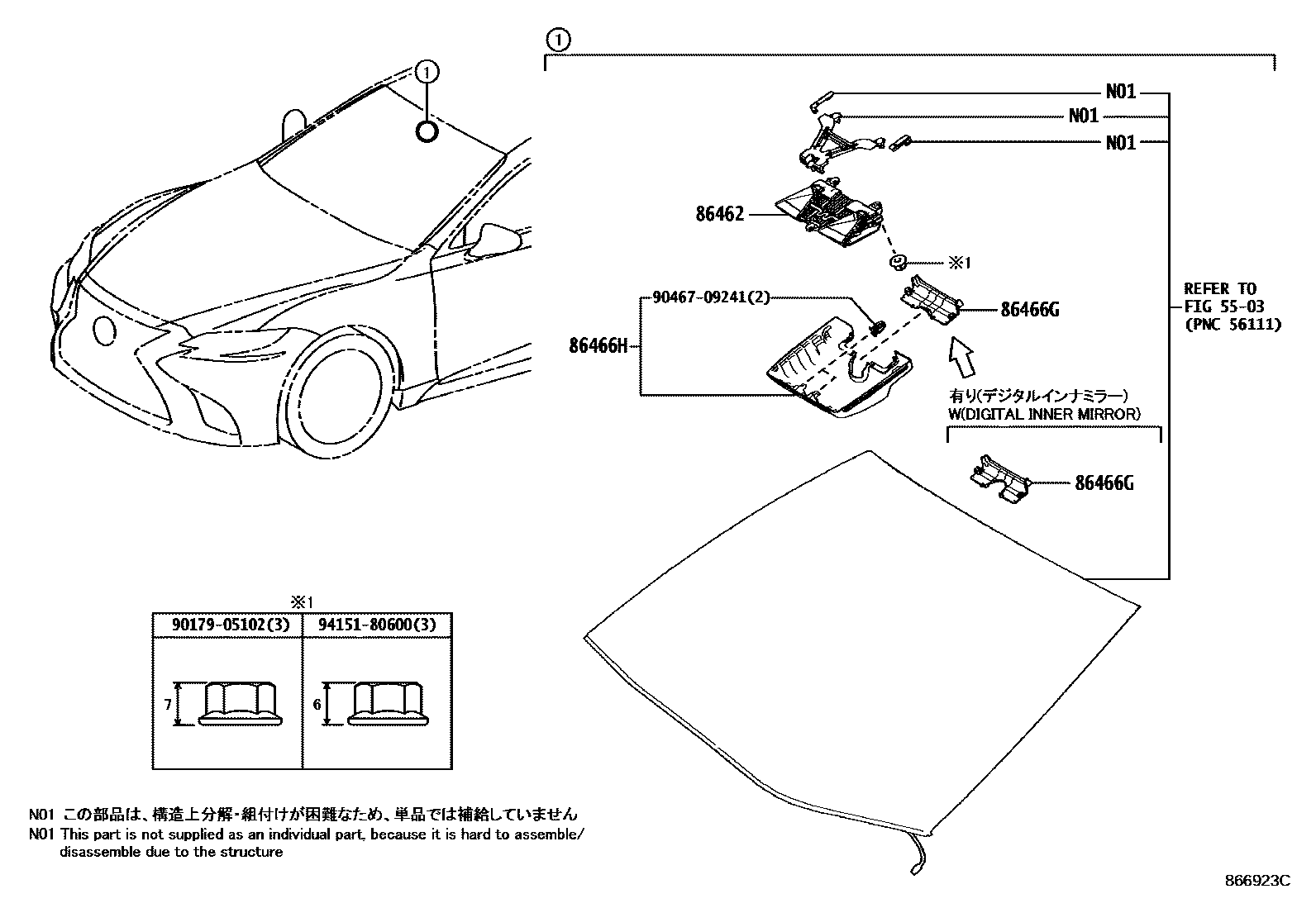

LANE-KEEPING ASSIST

5503

86462CAMERA, OBJECT RECOGNITION

main86462-50040iGVF5#201710-201804

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub86462-50050

main86462-50041iGVF5#201804-201809

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main86462-50060iGVF5#,VXFA55201809-201812

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub86462-50061

main86462-50061iGVF5#,VXFA55201901-201908

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub86462-50062

main86462-50062iGVF5#,VXFA55201909-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main86462-50070iGVF5#,VXFA55202011-202111

LEXUS SAFETY SYSTEM+A

main86462-50071iGVF5#,VXFA55202111-202310

LEXUS SAFETY SYSTEM+A

86466GCOVER, FORWARD RECOGNITION, NO.1

main86466-50020iGVF5#201710-201910

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub86466-50021

main86466-50021iGVF5#,VXFA55201911-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main86466-50080iGVF5#,VXFA55202011-202310

LEXUS SAFETY SYSTEM+A

86466HCOVER, FORWARD RECOGNITION, NO.2

main86466-50030iGVF5#201710-201910

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

sub86466-50031

main86466-50031iGVF5#,VXFA55201911-202010

PRE-COLLISION SYSTEM-LEXUS SAFETY SYSTEM+A

main86466-50031iGVF5#,VXFA55202011-202310

LEXUS SAFETY SYSTEM+A

9017905102

main90179-05102

9046709241

main90467-09241

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section
