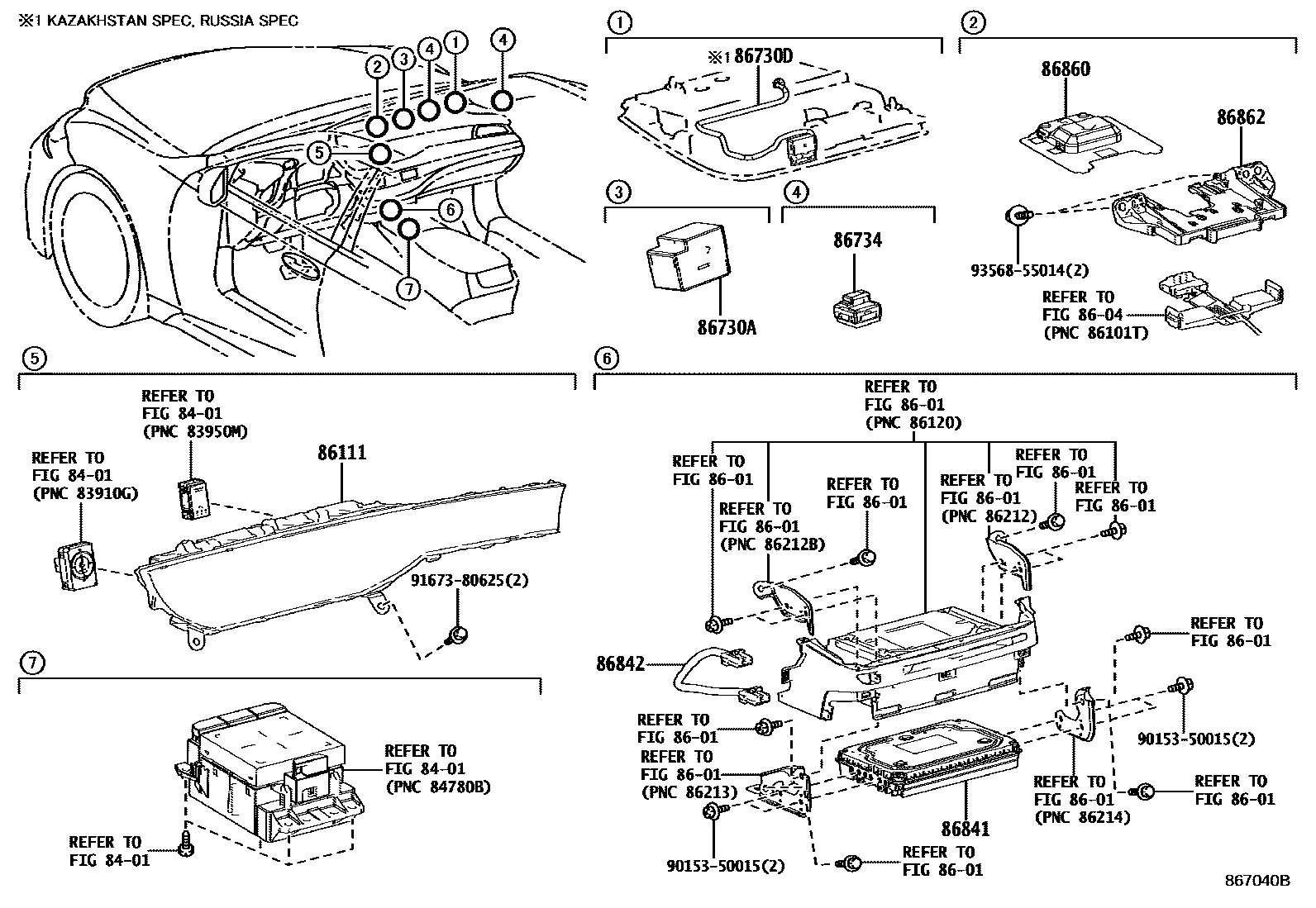

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8401

8601

8604

86111MULTI-DISPLAY

main86111-50280iGVF5#..RHD201710-202010

DENSO

main86111-50300iGSF50,GVF5#,VXFA55..LHD201710-202010

DENSO

main86111-50370iGSF50,GVF5#,VXFA55..LHD202011-202110

DENSO

sub86111-50371¥190,000

main86111-50371iGSF50,GVF5#,VXFA55..LHD¥190,000202111-202210

DENSO

main86111-50390iGVF5#..RHD202011-202210

DENSO

main86111-50410iGSF50,VXFA55202210-202509

DENSO TEN

main86111-50430iGVF5#..RHD202210-202509

DENSO TEN

86730AMICROPHONE ASSY, TELEPHONE

main86730-11010iGSF50,GVF5#,VXFA55¥7,100201710-202010

sub86730-48110¥6,400

main86730-48110iGSF50,GVF5#,VXFA55¥6,400202011-202210

main86730-78010iGVF5#¥6,400202210-202509

86730DMICROPHONE ASSY, TELEPHONE, NO.2

86734MICROPHONE, ACTIVE NOISE CONTROL

main86734-11010iGSF50,GVF5#,VXFA55¥1,860201710-202010

main86734-11030iGSF50,VXFA55¥1,860202011-202509

86841COMPUTER, NAVIGATION

main86840-0W031iGSF50,GVF5#201710-201711

sub86840-0W032

main86840-0W032iGSF50,GVF5#,VXFA55201712-202010

main86840-0W230iGSF50,GVF5#,VXFA55202011-202203

sub86840-0W231

main86840-0W231iGSF50,GVF5#,VXFA55202204-202210

86842WIRE, NAVIGATION, NO.1

main86842-50J00iGSF50,GVF5#,VXFA55¥2,610201710-202210

86860ANTENNA ASSY, NAVIGATION

main86860-78010iGSF50,GVF5#,VXFA55¥8,500201710-202310

main86880-52020iGSF50,VXFA55¥8,500202310-202509

main86880-52020iGVF5#..RHD¥8,500202210-202509

(L)

86862BRACKET, NAVIGATION ANTENNA

main86862-50070iGSF50,GVF5#,VXFA55¥1,000201710-202509

9015350015

main90153-50015¥60

9167380625

main91673-80625¥80

9356855014

main93568-55014¥70

14 parts on this diagram · 6 diagrams in section
