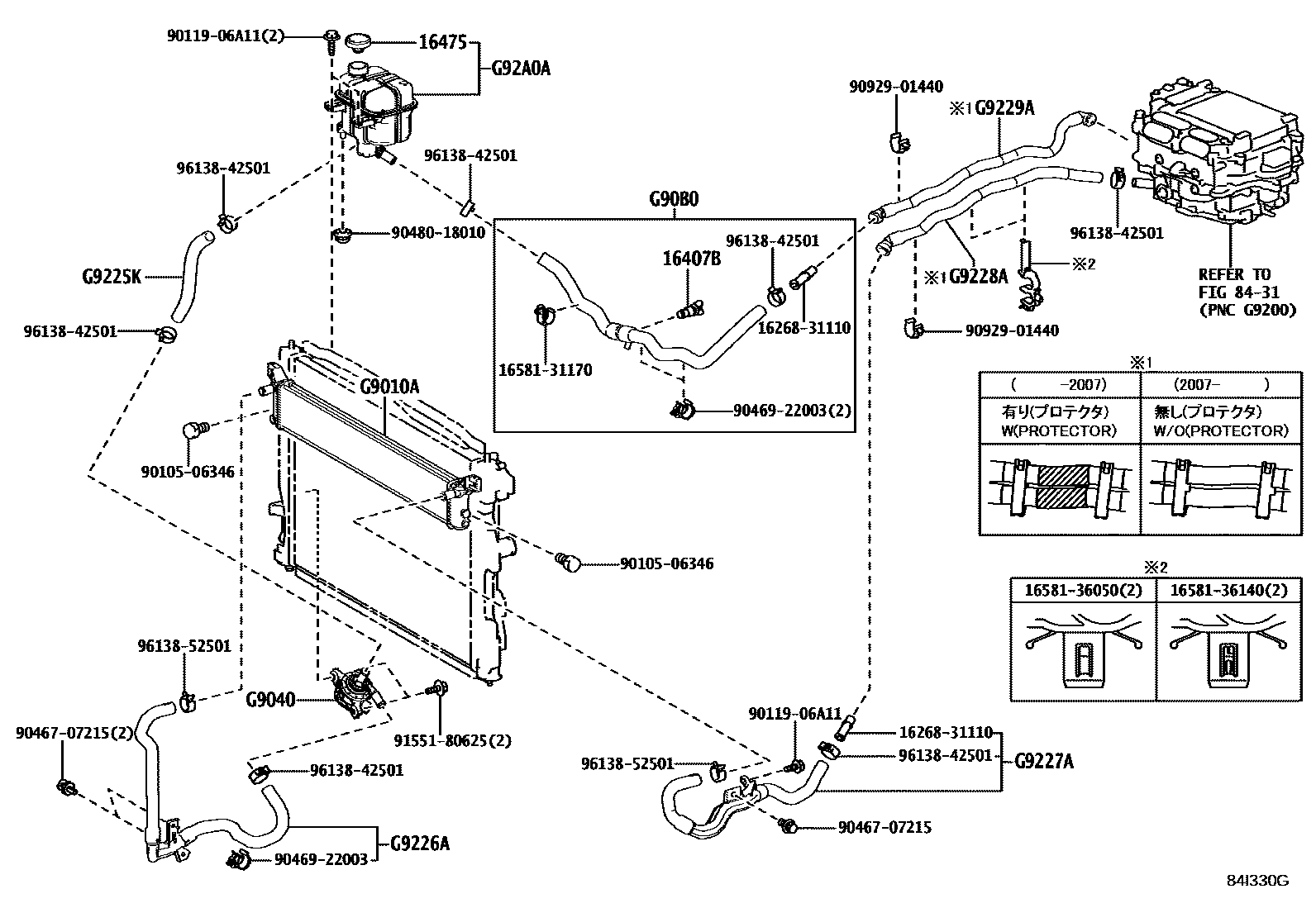

INVERTER COOLING

0001 1 0002 1

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010i8GRFXS..GVF5#201710-202509

16475CAP, RESERVE TANK

main16475-28140i8GRFXS..GVF5#201710-202509

8431

G9010ARADIATOR ASSY

mainG901011010iGVF5#201710-202509

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904033050iGVF5#201710-202310

mainG904048060iGVF5#202310-202510

G90B0HOSE ASSY, INVERTER COOLING, NO.2

mainG90B050010iGVF5#..RHD201710-202509

G9225KHOSE, INVERTER COOLING, NO.1

mainG922550220iGVF5#201710-202509

G9226AHOSE, INVERTER COOLING, NO.2

mainG922650030iGVF5#201710-202509

G9227AHOSE, INVERTER COOLING, NO.3

mainG922750030iGVF50..LHD201710-202509

mainG922750040iGVF5#..RHD201710-202509

mainG922750050iGVF55..LHD201710-202509

G9228AHOSE, INVERTER COOLING, NO.4

mainG922811030iGVF5#..LHD201710-202509

mainG922811040iGVF5#..RHD201710-202007

mainG922811041iGVF5#..RHD202007-202509

G9229AHOSE, INVERTER COOLING, NO.5

mainG922911040iGVF5#..RHD201710-202007

mainG922911041iGVF5#..RHD202007-202509

G92A0ATANK ASSY, INVERTER RESERVE

mainG91H050010iGVF5#201710-202509

1626831110PIPE, WATER BY-PASS, NO.1

main16268-31110

1658131170CLAMP, HOSE(FOR WATER HOSE)

main16581-31170

1658136050CLAMP, HOSE(FOR WATER HOSE)

main16581-36050

1658136140CLAMP, HOSE(FOR WATER HOSE)

main16581-36140

9010506346

main90105-06346

9011906A11

main90119-06A11

9046707215

main90467-07215

9046922003

main90469-22003

9048018010

main90480-18010

9092901440

main90929-01440

9155180625

main91551-80625

9613842501

main96138-42501

9613852501

main96138-52501

25 parts on this diagram · 2 diagrams in section
