ELECTRONIC HEIGHT CONTROL

48728BBRACKET, LOAD SENSING VALVE SENSOR, RH

main48728-11010iGVF5#,VXFA55201710-202010

"EXECUTIVE"*(E)&BACK MONITOR-WITH(*PVM)

main48728-11010iGVF5#,VXFA55201710-202010

"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)

main48728-11010iVXFA55202011-202509

48728CBRACKET, LOAD SENSING VALVE SENSOR, LH

main48728-11020iGSF50,GVF5#,VXFA55201710-202509

89244DWIRE, ABSORBER CONTROL, RH

main89244-11010iGVF50201710-202010

"EXECUTIVE"*(E)

main89244-11010iGVF50201710-202010

"VERSION L"*(L)

main89244-11010iGVF50202011-202509

89244EWIRE, ABSORBER CONTROL, LH

main89244-11020iGVF50201710-202010

"EXECUTIVE"*(E)

main89244-11020iGVF50201710-202010

"VERSION L"*(L)

main89244-11020iGVF50202011-202509

89405ESENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-11010iGVF50201710-202010

"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)

main89405-11010iGVF50201710-202010

"EXECUTIVE"*(E)&BACK MONITOR-WITH(*PVM)

main89405-11010iGVF50202011-202509

main89405-50080iGVF55201710-202509

89406ASENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-11010iGVF50201710-202010

"EXECUTIVE"*(E)&BACK MONITOR-WITH(*PVM)

main89406-11010iGVF50201710-202010

"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)

main89406-11010iGVF50202011-202509

main89406-50090iGVF55201710-202509

89407ASENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH

main89407-11010iGVF5#,VXFA55201710-202010

"EXECUTIVE"*(E)&BACK MONITOR-WITH(*PVM)

main89407-11010iGVF5#,VXFA55201710-202010

"VERSION L"*(L)&BACK MONITOR-WITH(*PVM)

main89407-11010iVXFA55202011-202509

89408CSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH

main89408-11010iGSF50,GVF5#,VXFA55201710-202509

9017906274

main90179-06274

91551A0612

main91551-A0612

91554A0612

main91554-A0612

9167380616

main91673-80616

9415180600

main94151-80600

9418560600

main94185-60600

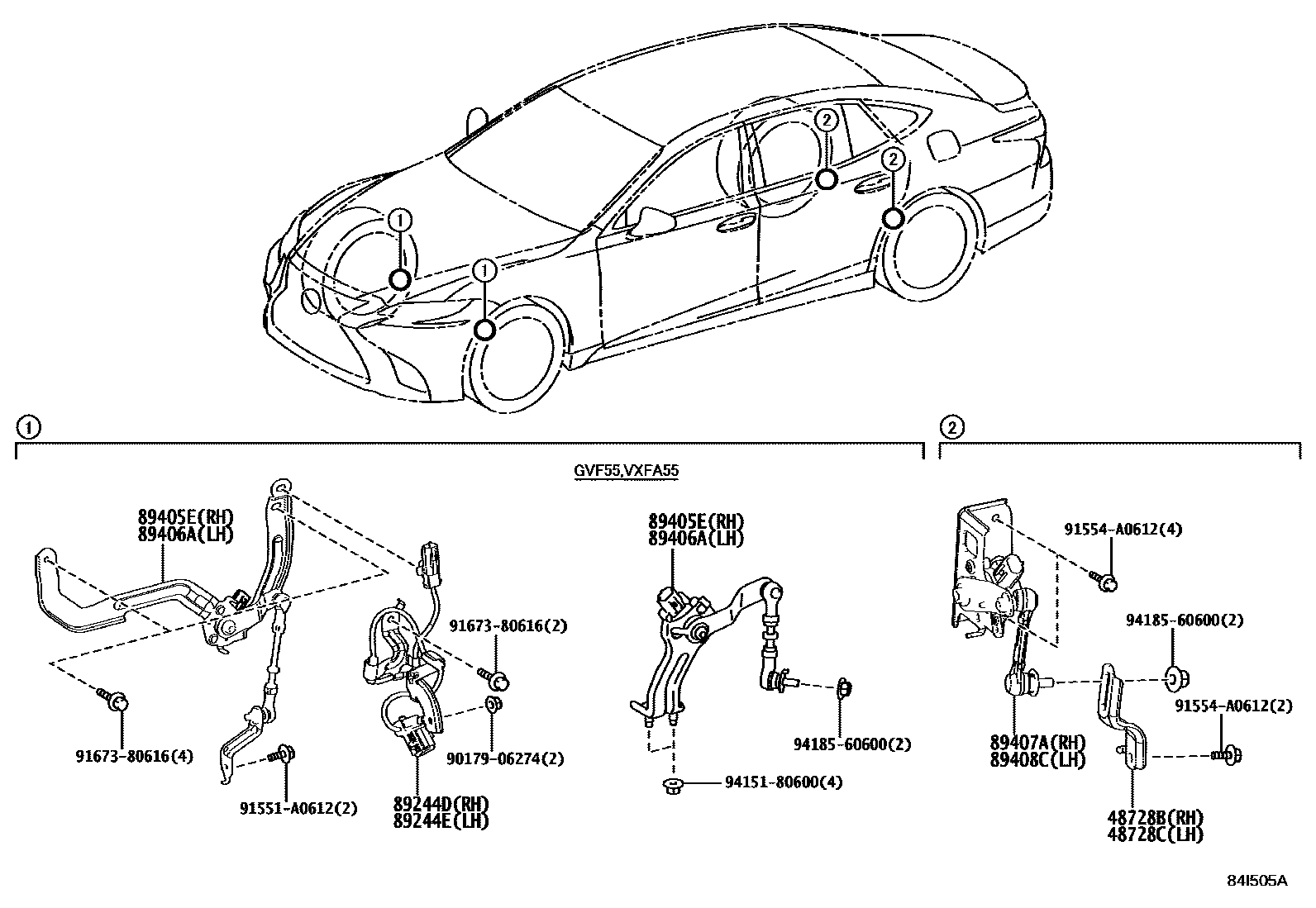

14 parts on this diagram · 1 diagram in section
