EPC Data

ABS & VSC

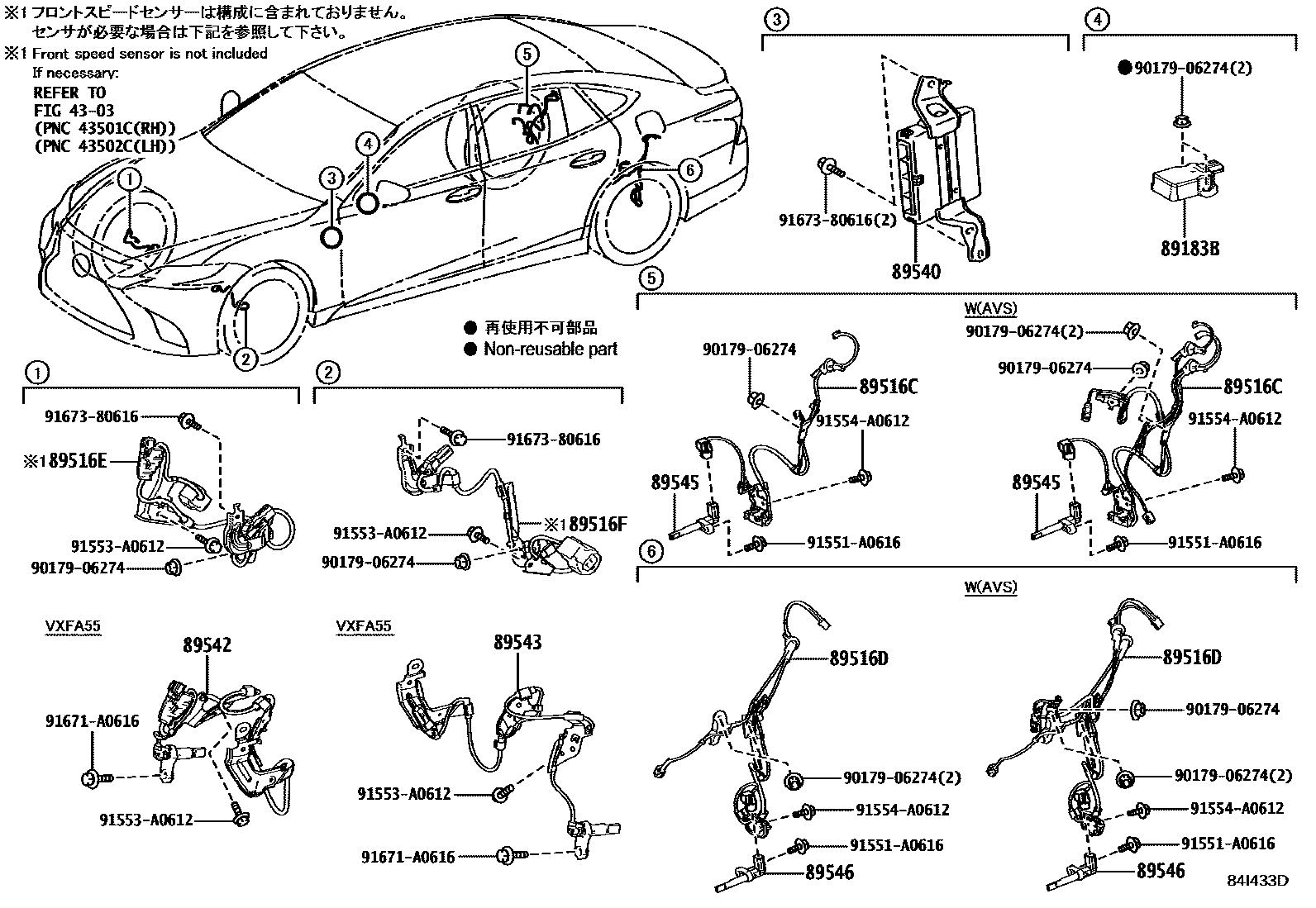

Parts diagram
4303
89183BSENSOR, YAWRATE
main89183-50040i201809-202410
main89183-50050i201710-201809
89516CWIRE, SKID CONTROL SENSOR, RH
main89516-50200i201710-202410
main89516-50220i201710-202010
"VERSION L"*(L)
main89516-50220i201710-202010
"EXECUTIVE"*(E)
main89516-50220i202011-202509
89516DWIRE, SKID CONTROL SENSOR, LH
main89516-50210i201710-202410
main89516-50230i201710-202010
"VERSION L"*(L)
main89516-50230i201710-202010
"EXECUTIVE"*(E)
main89516-50230i202011-202509
89516EWIRE, SKID CONTROL SENSOR, FRONT RH
main89516-11010i201710-202509
89516FWIRE, SKID CONTROL SENSOR, FRONT LH
main89516-11020i201710-202509
89540COMPUTER ASSY, SKID CONTROL
main895B0-50452i201909-202010
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE
main895B0-50452i201909-202010
"EXECUTIVE"*(E)&FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45RF20,SUMMER TIRE
main895B0-50550i201710-201809
main895B0-50551i201809-201909
main895B0-50552i201909-202010
main895B0-50580i201710-201809
main895B0-50581i201809-201909
main895B0-50602i201909-202010
main895B0-50620i201710-201809
SUSPENSION-COIL SPRING & *AVS
main895B0-50621i201809-201909
SUSPENSION-COIL SPRING & *AVS
main895B0-50710i201710-201809
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE
main895B0-50711i201809-201909
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE
main895B0-50712i201909-202010
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45RF20 NOISE REDUCTION,SUMMER TIRE
main895B0-50J80i202011-202111
main895B0-50J81i202111-202210
main895B0-50K10i202011-202111
main895B0-50K11i202111-202210
main895B0-50K30i202011-202111
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE
main895B0-50K30i202011-202111
"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K30i202011-202111
"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K31i202111-202210
"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K31i202111-202210
"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K31i202111-202210
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE
main895B0-50K90i202011-202111
BALKAN,SLOVENIA SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
ITALY SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
ITALY SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
POLAND SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
POLAND SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
GERMANY SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
GERMANY SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
AUSTRIA,CENTRAL EU SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
AUSTRIA,CENTRAL EU SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
FRANCE,REUNION,MONACO,ANDORRA SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
FRANCE,REUNION,MONACO,ANDORRA SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
NORDIC,BALTIC SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
NORDIC,BALTIC SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
SWITZERLAND SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
SWITZERLAND SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
HOLLAND,BELGIUM SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
HOLLAND,BELGIUM SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
PORTUGAL,SPAIN,CANARY ISLANDS SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
PORTUGAL,SPAIN,CANARY ISLANDS SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
GREECE SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
GREECE SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K90i202011-202111
BALKAN,SLOVENIA SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
NORDIC,BALTIC SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
GERMANY SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
AUSTRIA,CENTRAL EU SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
AUSTRIA,CENTRAL EU SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
FRANCE,REUNION,MONACO,ANDORRA SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
FRANCE,REUNION,MONACO,ANDORRA SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
NORDIC,BALTIC SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
SWITZERLAND SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
SWITZERLAND SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
HOLLAND,BELGIUM SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
HOLLAND,BELGIUM SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
PORTUGAL,SPAIN,CANARY ISLANDS SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
PORTUGAL,SPAIN,CANARY ISLANDS SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
GREECE SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
GREECE SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
BALKAN,SLOVENIA SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
BALKAN,SLOVENIA SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
ITALY SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
ITALY SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
POLAND SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
POLAND SPEC&"VERSION L"*(L)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50K91i202111-202210
GERMANY SPEC&"EXECUTIVE"*(E)&INTELLIGENT PARKING ASSIST-WITH
main895B0-50M30i202210-202310
main895B0-50M60i202210-202310
main895B0-50M70i202210-202310
FRONT WHEEL BRAKE-20INCH(HIGH FRICTION BRAKE PAD)&TIRE & DISK WHEEL-245/45R20 NOISE REDUCTION,SUMMER TIRE
main895B0-50N10i202210-202310
89542SENSOR, SPEED, FRONT RH
main89542-50050i201710-202310
main89542-50070i202310-202509
89543SENSOR, SPEED, FRONT LH
main89543-50050i201710-202310
main89543-50070i202310-202509
89545SENSOR, SPEED, REAR RH
main89545-30070i202011-202509
main89545-30090i201710-202410
89546SENSOR, SPEED, REAR LH
main89546-30070i202011-202509
main89546-30090i201710-202410
9017906274
main90179-06274
91551A0616
main91551-A0616
91553A0612
main91553-A0612
91554A0612
main91554-A0612
91671A0616
main91671-A0616
9167380616
main91673-80616

17 parts on this diagram · 8 diagrams in section
